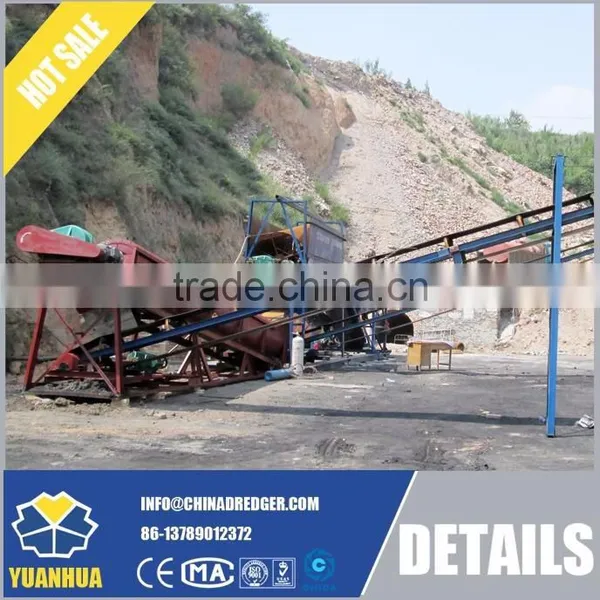

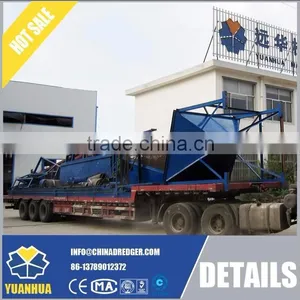

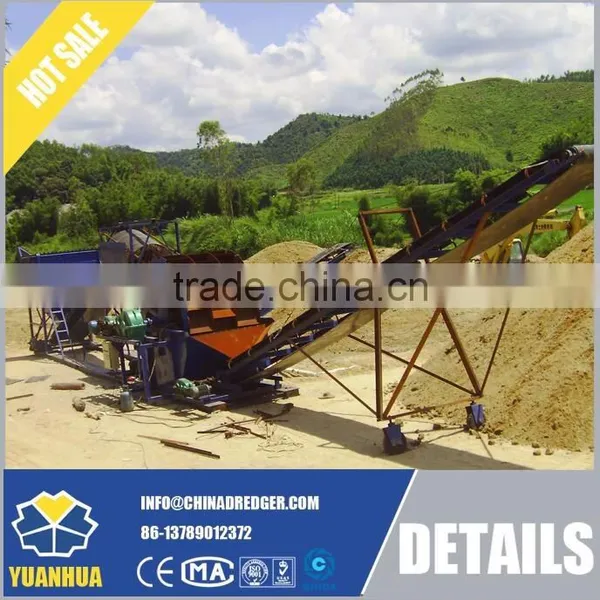

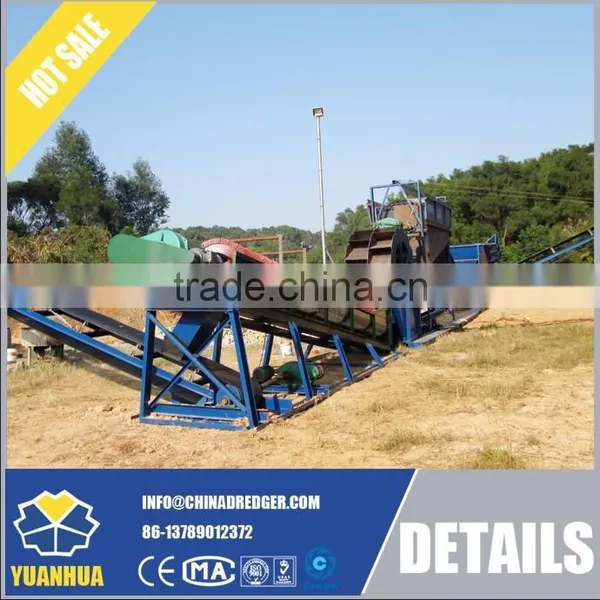

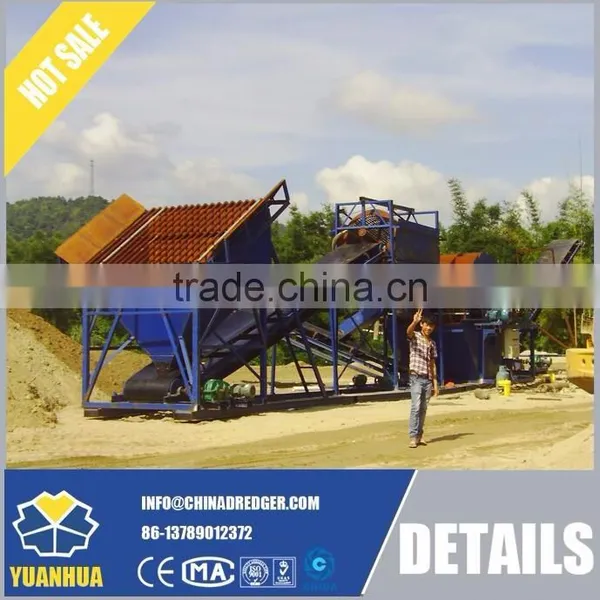

Iron Sand Selecting Machine / iron powder seperating machine / iron ore dressing machine / Iron mining machinery for land mines
| Bucket Chain Iron Sand Dredger | |||||||
| Vibrating Screen and Roller Screen | |||||||
|
Magnetic Separation Equipments include Magnetic Separator(one or two )
|
|||||||
| Model | Hull Length | Bucket | Dredging Depth | Raw Ore Production | Fitted Power | Magnetic Separator | Gear Reducer |
| Width | (Dia.×L) | ||||||
| (m) | (m) | M³/h | kw | mm | |||
| WT-40 | 15×1.8 | 40-60 | 4-6 | 60-80 | 18 | 800×2400 | 500 |
| WT-60 | 18×2.0 | 60-80 | 6-8 | 60-80 | 22 | 800×2400 | 650 |
| WT-80 | 20×2.0 | 80-95 | 8-10 | 60-100 | 22 | 800×2400 | 750 |
| WT-100 | 24×20 | 95-110 | 12-15 | 60-100 | 2230 | 800×2600 | 750 |
| WT-110 | 28×2.0 | 110-115 | 15-20 | 60-100 | 30 | 800×2600 | 750 |
| Sand Pump Iron Dredger | ||||||
| Works in river course with no gravel | ||||||
| Great Production | ||||||
| Extract high Grade iron sand | ||||||
|
Ideal solution for iron mining and selecting project
|
||||||
| Model | Hull Length | Dredging Depth | Raw Ore Production | Fitted Power | Magnetic Separator | |
| Width | (Dia.×L) | |||||
| (m) | (m) | M³/h | kw | mm | ||
| WTC-10 | 6-18×1.5. | Sand Pump | 39974 | 3050 | 44-150 | 800×2600 |
| WTC-20 | 10-20×2.0 | Sand Pump | 39982 | 250300 | 75300 | 900×2600 |
Iron ore selecting machine
Hull | |
Dimension (l*w*h) |
13.5m×1.5m×0.9m side floating bodies/double |
Engine Room (l*w*h) |
2m×1.5m×1m middle floating body |
Other |
Anti-rust primer painted at the bottom Anti-rust coating painted at the surface |
Body |
4mm steel plate |
Deck |
3mm anti skid plate |
Engine Room |
5mm steel plate |
Total Width |
4.5~ 5 m |
Height of holding frame |
4.2~ 5.5 m |
Sand Pump Unit | |
Model |
8 inch |
Suction dia. |
200 mm |
Discharge dia. |
200 mm |
Capacity |
80 m³/h (consistency 20%) |
Fitted Power |
59 kw |
Speed |
700 rpm |
Suction Depth |
15 m |
Driving Engine |
HFR4105IZG WEIFANG·HUAYUAN |
Speed |
2000 rpm |
Power |
74 kw |
Oil consumption |
≤197g/kw.h |
Water Pumping Unit | |
Capacity |
100 m3/h |
Head |
15 m |
Fitted Power |
20HP diesel engine |
Magnetic Separation Equipment (permanent magnet roller type) one set | |
Size |
3000*900mm (water-washing precise selection type) |
Antimagnetic angle |
120° |
Selection Mode |
downstream type/forward flow |
Super Antimagnetic |
Top Magnetic Force: 4300GS |
Recovery Rate |
90% net selection |
Fitted Power |
7.5kw standard motor Model 350 reducer |
Iron Sand Grade |
50-55 depend on original ore magnetic holding rate |
Submersible Pump |
7.5 kw ,one set |
Winch | |
Ladder rising winch |
4kw electric winch , one set |
Hand operating winch |
2 sets |
Simple control room | |
Light |
2 sets |
Power Unit | |
Model |
HFR4100ZD WEIFANG·HUAYUAN |
Generating power |
30 kw |
Speed |
1500 rpm |
Rated Current |
72 A |
Rated Voltage |
400 V |
Oil Consumption |
≤197g/kw.h |
Propeller |
|
Impeller diameter |
500 mm |
Length |
1.8m |
Fitted Power |
20HP diesel engine |
Iron Sand Discharging Pump | |
Model |
4 |
Fitted Power |
24HP diesel engine |
Attachments |
|
Main pump 8inch impeller |
3 pcs |
Water pump 4inch impeller |
5 pcs |
