OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

Name: OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger
Brand: HENGCHUAN
Availability: InStock

FOB Price

USD $8,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 100 Unit / Units per Month
Port qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Gravity Separator
Production Capacity	5-10Tons per hour	Place of Origin	Shandong, China
Brand Name	HENGCHUAN	Model Number	HCJT2-2
Voltage	380V/50HZ	Power(W)	3kw
Dimension(LWH)	322515502050mm	Weight	1640kg
Certification	ISO	Warranty	1 yeat
After-sales Service Provided	Engineers available to service machinery overseas

Packaging Details

Standard containers, bare main machine, motors and small parts are packed in wooden box.

Product Description

OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

1. Application of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

Alluvial Gold Jigger/Jigger Machine/Jigging Machine is kind gravity jig separator for gold and other mineral materalis concentration. It can be widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium, placer gold, alluvial gold and other minerals.Due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.

In practice, contrast of Saw-tooth Wave Jig and Sine Wave Jig shows up raises of recovery of Saw-tooth Wave Jig: Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%.

2. Working Principle of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

Alluvial Gold Jigger/Jigger Machine/Jigging Machine is one way of gravity concentration. It belongs to deep trough concentration operation (gravity equipment), using water as processing media, it depends on the difference of specific gravity between the minerals select and gangue to separate mine,the stroke and time of stroke is adjustable depend on different specific gravity of minerals. It is special for tin ore, manganese ore, coal, placer gold, alluvial gold concentration.

3.Advantages and Characteristics of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

1). High capacity

2).High concentration ratio and high recovery

3). Easy to install, operate and maintain

4). The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling

5).Saving water 30-40% than ordinary jig

6). The pulsation speed very easy adjusted by regulator

7). Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.

4.Main Technical Parameters of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

Model	Hutch		Feeding Size (mm)	Makeup water (m3/t)	Makeup water pressure (Mpa)	Capacity (t/h)	Power (kw)	Dimensions (mm)	Weight (Kg)
Model	Shape	Area (m2)	Feeding Size (mm)	Makeup water (m3/t)	Makeup water pressure (Mpa)	Capacity (t/h)	Power (kw)	Dimensions (mm)	Weight (Kg)
JT0.57-1	Trapezoid	0.57	<6	1-2	≥0.05	1.5-3	1.5	1550×780×1530	610
JT1-1	Trapezoid	1.04	<10	2-3		2.5-5	2.2	2270×1110×1890	900
JT2-2	Rectangle	2.28	<10	2-4		5-10	3	3225×1550×2050	1640
JT3-1	Trapezoid	3	<10	3-6		7.5-15	5.5	2745×2000×3030	3085
JT4-2	Rectangle	4	<25	4-8		8-20	7.5	4240×1990×2750	3098
JT4-2S	Rectangle	4	<25	4-8		8-20	4×2	4240×1990×2750	3500
JT5-2	Trapezoid	4.86	<10	3-6		12-25	7.5	3600×2000×2600	45

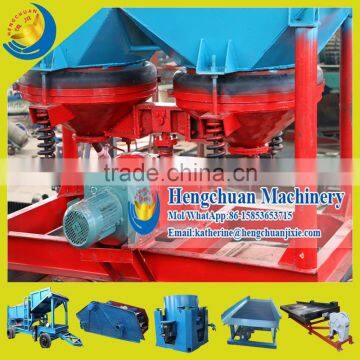

5. OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger Products Show

5.Shipping of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger

6.Working Site of OEM/ODM Customized China Supplier Latest Technology High Quality Alluvial Diamond Laboratory Jigger
