Jig /jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
- qingdao
- T/T Money Gram
You May Like
-
China Supplier Latest Technology High Abrasion Resistance and Convenient Maintenance Gold Mining Ball Mill for Sale
-
China Supplier Latest Technology Small Scale Gold Mill Plant for Rock Gold Ore Processing
-
OEM/ODM Customized China Supplier Gold Jig Concentrator for Sale
-
China Supplier Latest Technology Small Scale Ball Clay Grinding Mill for Sale
-
OEM/ODM Customized China Supplier Jigging Machine for Gold ,Diamond and Ruby
-
China Supplier Latest Technology Small Gold Ball Mill for Rock Gold Ore Grinding
Product Details
| Condition | New | Type | Gravity Separator | |
| Production Capacity | 5-10Tons per hour | Place of Origin | Shandong, China | |
| Brand Name | HENGCHUAN | Model Number | HCJT2-2 | |
| Voltage | 380V/50HZ | Power(W) | 3kw | |
| Dimension(L*W*H) | 3225*1550*2050mm | Weight | 1640kg | |
| Certification | ISO | Warranty | 1 yeat | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Standard containers, bare main machine, motors and small parts are packed in wooden box.
Product Description
Jig /jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
1. Application of Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
Alluvial Gold Jigger/Jigger Machine/Jigging Machine is kind gravity jig separator for gold and other mineral materalis concentration. It can be widely used to select Tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium, placer gold, alluvial gold and other minerals.Due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
In practice, contrast of Saw-tooth Wave Jig and Sine Wave Jig shows up raises of recovery of Saw-tooth Wave Jig: Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%.

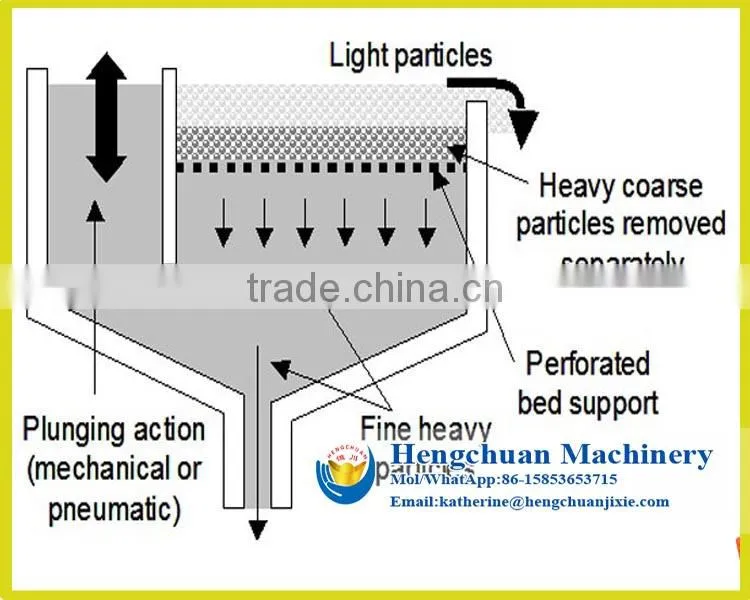

2. Working Principle of Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
Alluvial Gold Jigger/Jigger Machine/Jigging Machine is one way of gravity concentration. It belongs to deep trough concentration operation (gravity equipment), using water as processing media, it depends on the difference of specific gravity between the minerals select and gangue to separate mine,the stroke and time of stroke is adjustable depend on different specific gravity of minerals. It is special for tin ore, manganese ore, coal, placer gold, alluvial gold concentration.
3.Advantages and Characteristics of Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
1). High capacity
2).High concentration ratio and high recovery
3). Easy to install, operate and maintain
4). The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5).Saving water 30-40% than ordinary jig
6). The pulsation speed very easy adjusted by regulator
7). Can achieve a good result in processing such as placer gold, tungsten,iron, tin, hematite, copper, tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.
4.Main Technical Parameters of Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
Model | Hutch | Feeding Size (mm) | Makeup water (m3/t) | Makeup water pressure (Mpa) | Capacity (t/h) | Power (kw) | Dimensions (mm) | Weight (Kg) | |
Shape | Area (m2) | ||||||||
JT0.57-1 | Trapezoid | 0.57 | <6 | 1-2 | ≥0.05 | 1.5-3 | 1.5 | 1550×780×1530 | 610 |
JT1-1 | Trapezoid | 1.04 | <10 | 2-3 | 2.5-5 | 2.2 | 2270×1110×1890 | 900 | |
JT2-2 | Rectangle | 2.28 | <10 | 2-4 | 5-10 | 3 | 3225×1550×2050 | 1640 | |
JT3-1 | Trapezoid | 3 | <10 | 3-6 | 7.5-15 | 5.5 | 2745×2000×3030 | 3085 | |
JT4-2 | Rectangle | 4 | <25 | 4-8 | 8-20 | 7.5 | 4240×1990×2750 | 3098 | |
JT4-2S | Rectangle | 4 | <25 | 4-8 | 8-20 | 4×2 | 4240×1990×2750 | 3500 | |
JT5-2 | Trapezoid | 4.86 | <10 | 3-6 | 12-25 | 7.5 | 3600×2000×2600 | 45 | |

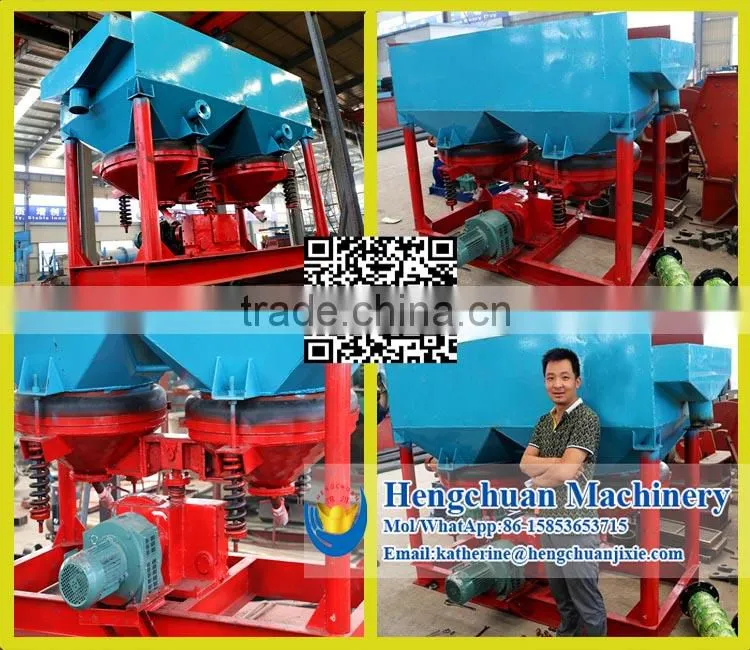

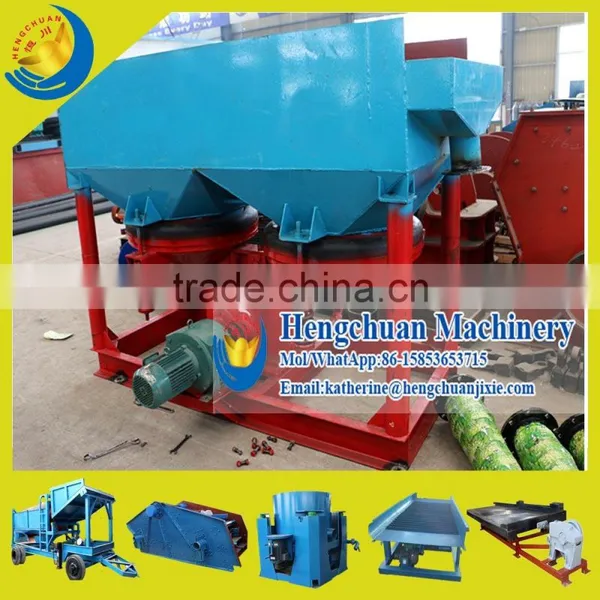

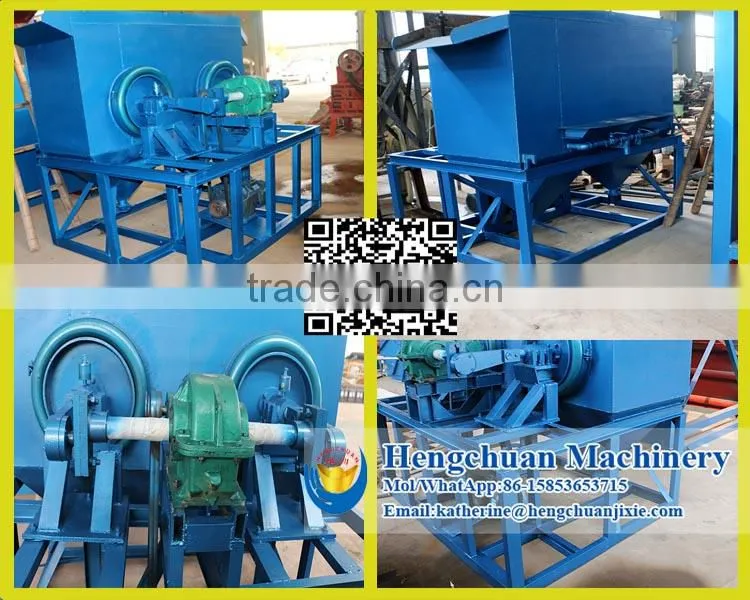

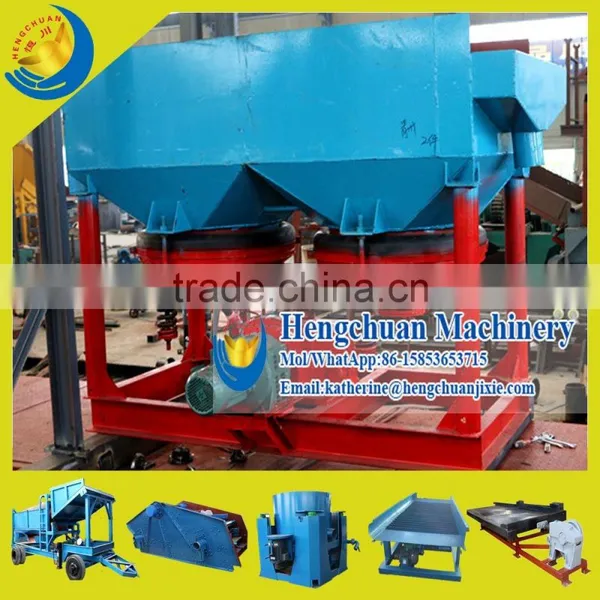

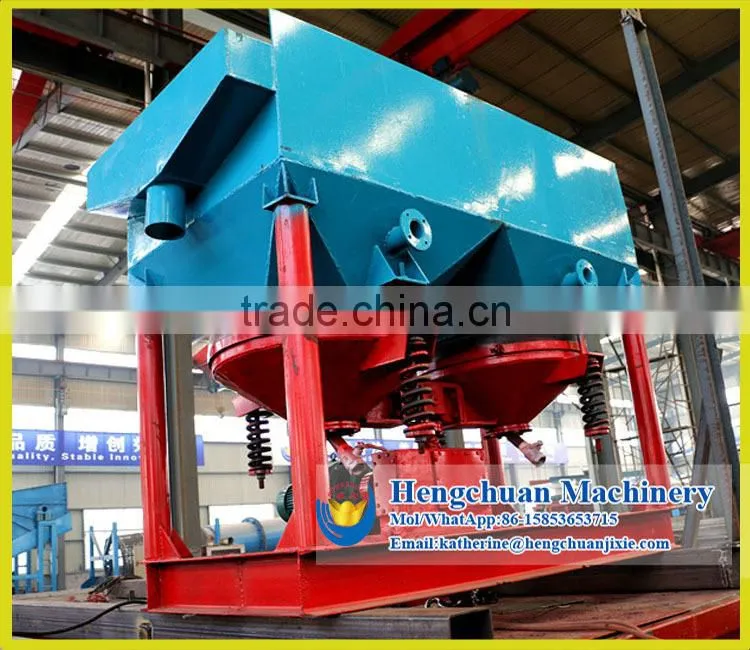

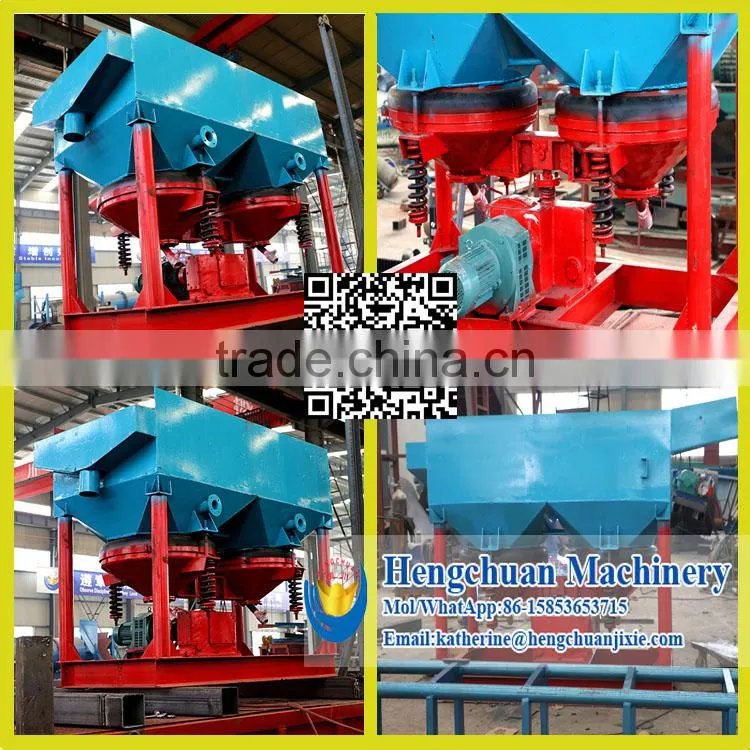

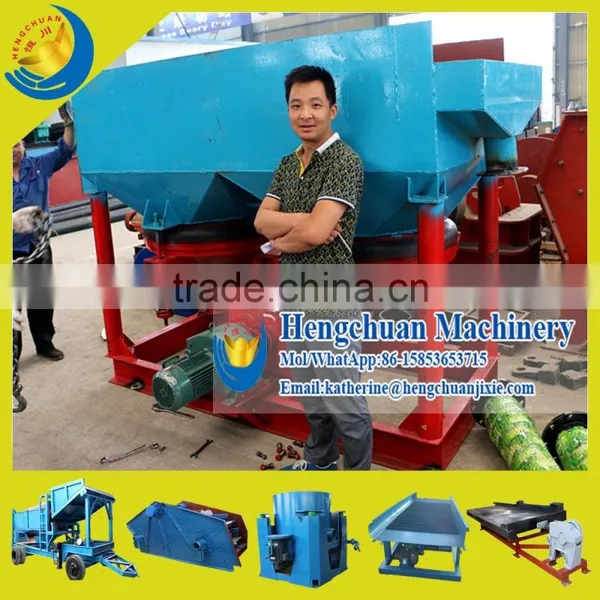

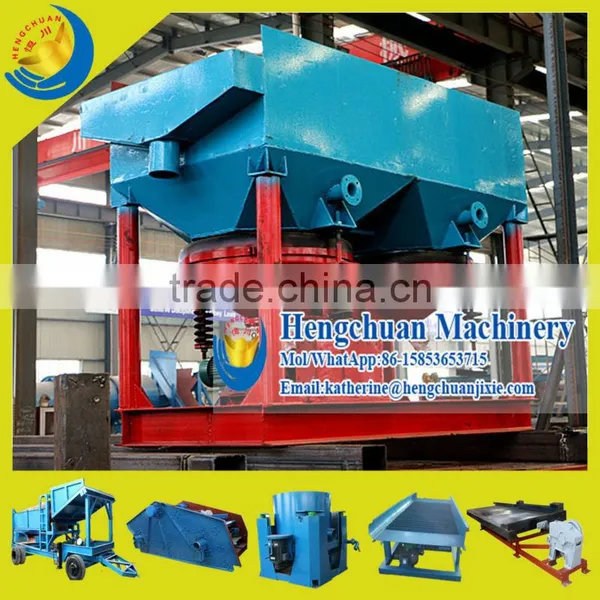

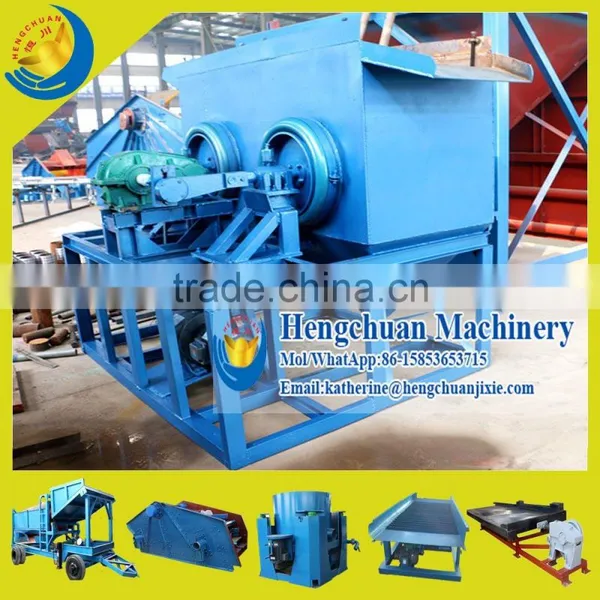

5. Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields Products Show

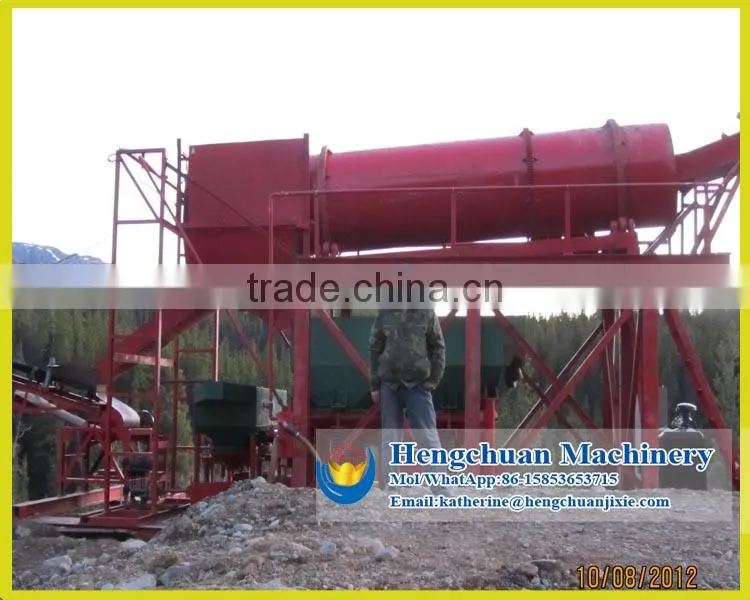

6.Working Site of Jig /Jigger/ Jigging Machine / Wash Box for Tin, Iron, Tungsten, Gold, and Silver Dressing Fields
Fast Contact Ways
Company Profile
Qingzhou Hengchuan Ore Machinery Co.,ltd,was established in 2002,a leading ore machinery manufacturer in China,covering an area of 20000 square meters,have 6 engineers,20 technicians and 100 workers. Our main products:Gold Mining Machinery,Magnetic separators and all kinds of mining dredger etc.Our main market is domestic,Africa and Southeast Asia,such as Cameroon,Ghana,Mali,Zimbabwe,Malaysia,Indonesia and Philippines etc. Cutter suction dredger is widely used in dredging engineering.The rotating cutting head in the front of the suction pipe can stir slurry,then dredging pump suck the slurry through the suction pipe,then through the discharge pipe to the mud yards.Dredging, transportation and discharge is a whole series work.So the cutter suction dredger is an efficient and economic dredger.We start to manufacture the cutter suction dredger from 2005,gradually accumulated rich experience in this field. Development History: A).Established Magnet Research Institute in 2004,successfully developed the high gradient magnetic separator to 12000-22000GS. B).Cooperated with Shandong Gold Group and doubled the sales scale. C).Developed STL-120 gold centrifugal concentrator in 2008. D).Mature dredger products in 2009. E).Developed successfylly knelson smiliar type automatic discharge type gold centrifual concentrtor and produced them in large quantity for sellling. F).Established Shandong Hengchuan International Trade Co.,Ltd in 2015. Enterprise Spirit -eternal integrity Enterprise Purpose-to consistently exceed customers' expectations Core Values-innovation and leading the future Service Concept- to create value for customers Development Concept - Quality is life; innovation is the driving force Corporate Vision- the world leading supplier of magnetic separation equipment
