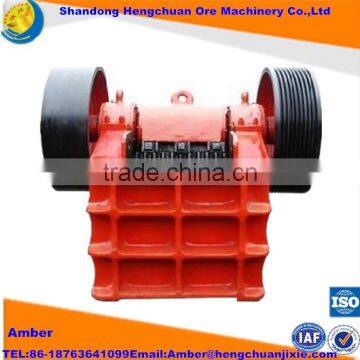

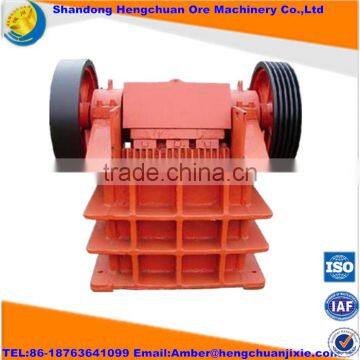

Latest technology crusher for sale
Introduction of crusher
Latest technology crusher for sale is one of the most popular stone crushing machines used in mining industry and it is ideally suitable for both primary and secondary crushing. PE series single toggle Gold Rock Jaw Crusher has the features of great crushing ratio and uniform sizes. Gold Rock Jaw Crusher can be used to crush materials with compressive resistance less than 320 MPA. Gold Rock Jaw Crusher is widely used in various industries, such as mining, smelting, road and railway construction, chemical industry, etc. Gold Rock Jaw Crusher is used for primary crushing and secondary crushing.The maximum compression strength of materials to be crushed is 320MPA. Our design and production are of high position both at home and abroad.
Features of crusher
1).High-quality steel castings , driven by two large steel flywheel. Forging stock processes heavy eccentric shaft resulting superior reliability.
2).Bearing housings is overall steel structure, ensuring its complete fit with the crusher frame and greatly enhancing its radial strength.
3).Finite element analysis techniques,making the crusher a higher strength.
4).Crusher cavity of symmetrical "V" -shaped structure, making the actual inlet width consistent with the nominal inlet width.
5).Adjustment of the discharge port is more quick and convenient.
6).Larger, more durable eccentric shaft bearings and effective labyrinth sealing make the bearings' life long.
7).Tooth plate, increased effective length of jaw board, higher yields.
Working Principle of crusher
Technical Parameters of crusher
ype | Feed Opening (mm) | Max Feeding Size (mm) | Discharge Opening (mm) | Capacity (t/h) | Rotation (r/min) | Motor (kw) | Weight (t) | Dimensions L*W*H (mm) |
PE-150*250 | 150*250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720*660*850 |
PE-200*300 | 200*300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910*750*990 |
PE-200*350 | 200*350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000*870*990 |
PE-250*400 | 250*400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300*1090*1270 |
PE-400*600 | 400*600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730*1730*1630 |
PE-500*750 | 500*750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980*2080*1870 |
PE-600*750 | 600*750 | 500 | 150-200 | 50-180 | 275 | 55 | 15.8 | 2070*2000*1920 |
PE-600*900 | 600*900 | 500 | 65-160 | 80-180 | 250 | 55 | 17 | 2190*2206*2300 |
PE-750*1060 | 750*1060 | 630 | 80-140 | 110-320 | 250 | 90-110 | 29 | 2660*2430*2800 |
PE-800*1060 | 800*1060 | 640 | 160-220 | 130-330 | 250 | 110 | 29.8 | 2710*2430*2800 |
PE-830*1060 | 830*1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740*2430*2800 |
PE-870*1060 | 870*1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810*2430*2800 |
PE-900*1060 | 900*1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870*2420*2940 |
PE-900*1200 | 900*1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380*2870*3330 |
PE-1000*1200 | 1000*1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480*2876*3330 |
PE-1200*1500 | 1200*1500 | 1020 | 150-300 | 400-800 | 180 | 160 | 100.9 | 4200*3300*3500 |
PEX-150*750 | 150*750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200*1530*1060 |
PEX-250*750 | 250*750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380*1750*1540 |
PEX-250*1000 | 250*1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560*1950*1390 |
PEX-250*1200 | 250*1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140*1660*1500 |
PEX-300*1300 | 300*1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720*1950*1600 |
Detail of crusher
Packing: sale including standard container, spare parts will be packed in wooden case
Shipping port:Qingdao
We provide 12months quality warranty to make sure your gold centrifugal machine well runs consistently.
Pre-sale services:
a. Professional engineer design the production line for you
b.Recommend suitable equipment according to your special demand.
During-sale services:
a. Pre-check and accept products before delivery
b. Send technicians to the jobsite for guiding the installation and adjustment
c. Training operators and finishing the check to satisfy your requirement
After-sale services:
a. Common problem can be solved through web in 24 hours,comple problem can be reacted immediately in 24 hours and solved as soon as possible
b. To establish long-term friendship, we will regulary contact with our customers
1.Our facyory
2.Our customer
3.Certificater:
1. What Information should customers give to us in order to let we provide you with efficient & suitable quotation and assistance.
* What minerals are you separating?
* What's the maximum size of your raw minerals?
* How much capacity do you need per hour for your project?
Note: If Pics of the mineral & Chemical components report of your minerals are available, pls consider to send us for evaluation purposes.
2. Can we send the mineral samples to your company, let your company run the ore-dressing experiments test for us?
Yes, we can run the ore-dressing experiments for our customers. After the test, we will based on the results to give you the reasonable flowchart, suitable solution and equipments selection. etc.
3. Can we vist your company?
Yes, our company warmly welcome clients to visit our company at anytime. we will prepare the VISA for you, and arrange hotel, traffic, translator in order to let you stay comfortable while you are visiting us. Moreover, during the visiting, you can check our factory and machinery, and take tour to some of the nearby mining project build by our company. Also, we can throughly discuss your project in order to build a flawless project in the future.
4. How long is the warrenty of your equipments? Does your company supply the spare parts?
The warranty period of Gaoxuan equipments is one year. And of course we will supply te spare parts for you for life-long time at lowest cost.
5. If i need the complete mineral processing line. is Gaoxuan able to help us build it?
Yes, we can help you combine a complete mineral processing line. and give you related professional advices as long as you need. we had already build many mining projects in China & Overseas. Gaoxuan can set a complete processing line just as you require, the main equipments will be manufactured by us and some other supporting equipments ( like generator ) will be supplied by our cooperating facotries under our supervision.
How to contact us
Other Related Equipment

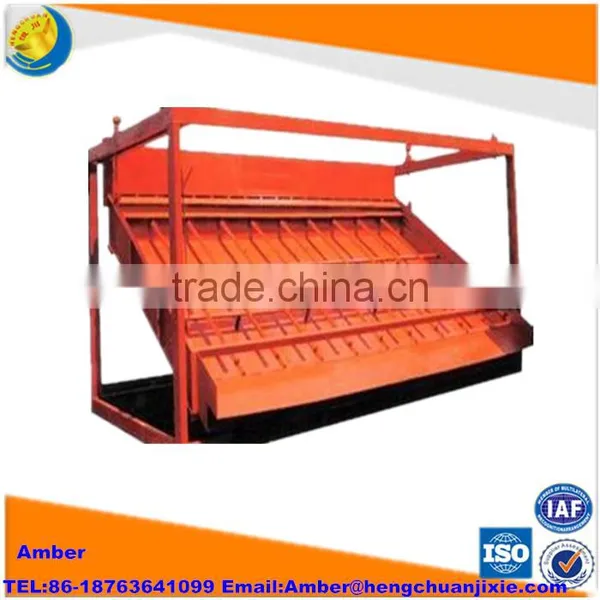

New technology pulsating sluice box Easy handle and fine gold for mining dredge mini
