Chinese Widely Used Rock Gold Jaw Crusher,Jaw Crusher Price for Rock Gold Mining

The package of jaw crusher including standard container, spare parts will be packed in wooden cases.

    Widely Used Rock Gold Jaw Crusher,Jaw Crusher Price for Rock Gold Mining

1.Description of Widely Used Rock Gold Jaw Crusher,Jaw Crusher Price for Rock Gold Mining

Gold Rock Jaw Crusher is one of the most popular stone crushing machines used in mining industry and it is ideally suitable for both primary and secondary crushing. PE series single toggle Gold Rock Jaw Crusher has the features of great crushing ratio and uniform sizes. Gold Rock Jaw Crusher can be used to crush materials with compressive resistance less than 320 MPA. Gold Rock Jaw Crusher is widely used in various industries, such as mining, smelting, road and railway construction, chemical industry, etc. Gold Rock Jaw Crusher is used for primary crushing and secondary crushing.The maximum compression strength of materials to be crushed is 320MPA. Our design and production are of high position both at home and abroad.

Production Line introduction:
firstly, the raw materials are initially crushed by rough crusher (i.e. rough jaw crusher); then the roughly crushed materials are transported into the fine crusher (i.e. fine impact crusher) for further crushing; the fine crushed materials get into ball mill to further grinding.

2.Features of Widely Used Rock Gold Jaw Crusher,Jaw Crusher Price for Rock Gold Mining

1).High-quality steel castings , driven by two large steel flywheel. Forging stock processes heavy eccentric shaft resulting superior reliability.

2).Bearing housings is overall steel structure, ensuring its complete fit with the crusher frame and greatly enhancing its radial strength.
3).Finite element analysis techniques,making the crusher a higher strength.
4).Crusher cavity of symmetrical "V" -shaped structure, making the actual inlet width consistent with the nominal inlet width.
5).Adjustment of the discharge port is more quick and convenient.
6).Larger, more durable eccentric shaft bearings and effective labyrinth sealing make the bearings' life long.
7).Tooth plate, increased effective length of jaw board, higher yields.

3.Working Pinciple of Widely Used Rock Gold Jaw Crusher,Jaw Crusher Price for Rock Gold Mining

The motor transmits through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when mobile jaw moving.So the mobile jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.

4.Technical Parameters of China Supplier Latest Technology Small Gold Mining Ball Mill for Rock Gold Ore Processing

5.Products Show of China Supplier Latest Technology Small Gold Mining Ball Mill for Rock Gold Ore Processing

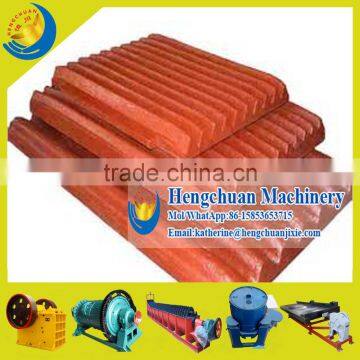

The feeding mouth of jaw crusher and jaw plate is made up of high manganese steel  ,that makes jaw crusher durable and strong.

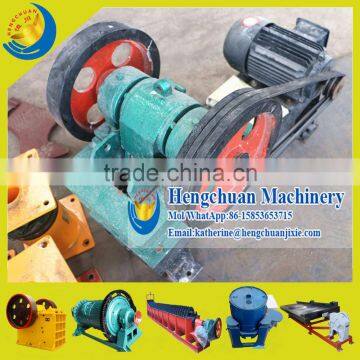

Mini Jaw Crusher for Laboratory Use

6.Packing of China Supplier Latest Technology Small Gold Mining Ball Mill for Rock Gold Ore Processing

6.In order to give you a responsible quotation, you can inform us the following information

1).  What's the material you are going to deal with?
2).  What's the granularity of the material?
3).  What's the granularity of the final products are you going to achieve?
4).  What's the producing capacity you are going to achieve?

Note: If Photos of the mineral & Chemical components report of your minerals are available, pls consider to send us for evaluation purposes.
