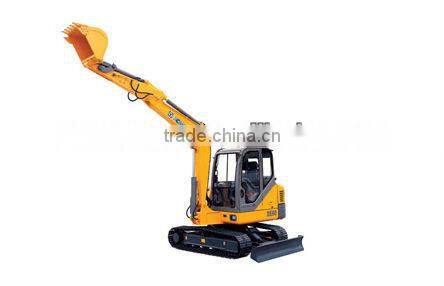

6ton Excavator

Name: 6ton Excavator
Brand: XCMG
SKU: 141324676
Availability: InStock

US$ 18,000 - 660,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE60

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE60

Condition New

Moving Type Crawler Excavator

Maximum Digging Height 5630mm

Maximum Digging Depth 3830mm

Specifications

1.Operating weight:5960kg;
2.Bucket capacity: 0.23;
3.Engine:4TNV94L;

Specifications

Model		Unit	XE60
Operating weight		kg	5960
Standard bucket capacity		m³	0.09-0.23
Engine	Engine Model	/	4TNV94L
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	×
	Air to air intercooler	/	×
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	39.8/2200
	Max. torque/speed	N.m	214/1100
	Displacement	L	3.054
Main Performance	Travel speed	km/h	4.2/2.2
	Swing speed	r/min	9.5
	Max. gradeability	/	35
	Ground pressure	kPa	32.1
	Max.Bucket digging force	kN	42.5
	Max.arm crowd force	kN	28.5
	Max.traction force	kN	50.5
	Rate flow of main pump	L/min	2×60.5+40.3+9.9
	Max pressure of prime relief valve	MPa	22
	Max pressure of travel system	MPa	22
	Max pressure of swing system	MPa	23
	Max pressure of pilot system	MPa	2.9
Oil Capacity	Fuel tank capacity	L	110
	Hydraulic tank capacity	L	85
	Engine lubrication	L	12
Dimention	Overall length	millimeter	5850
	Overall width	millimeter	1880/1920
	Overall height	millimeter	2584
	Overall width of upperstructure	millimeter	1780
	Track length	millimeter	2548
	Overall width of undercarriage	millimeter	1880
	crawer width	millimeter	400
	Dozer black(width/height)	millimeter	1880×363/1920×340
Work Scope	Max. digging height	millimeter	5630
	Max. dumping height	millimeter	3945
	Max. digging depth	millimeter	3830
