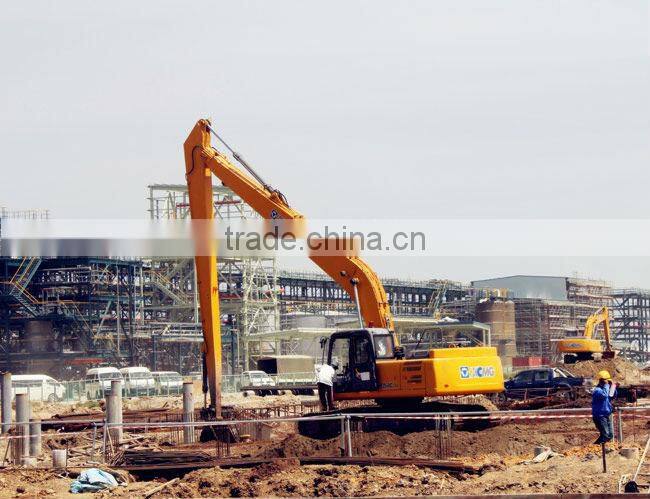

13.5ton Excavator

Name: 13.5ton Excavator
Brand: XCMG
SKU: 141324682
Availability: InStock

US$ 18,000 - 660,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE135B

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE135B

Condition New

Moving Type Crawler Excavator

Maximum Digging Height 8641mm

Maximum Digging Depth 5538mm

Specifications

1.Operating weight:13800kg;
2.Bucket capacity: 0.52;
3.Engine:ISUZU BB-4BG1TRP.

Specifications

Model		Unit	XE135B
Operating weight		kg	13800
Standard bucket capacity		m³	0.4-0.52
Engine	Engine Model	/	ISUZU BB-4BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	No. of cylinders	/	4
	Rated power/speed	kw/rpm	69.6/2200
	Max. torque/speed	N.m	337.6
	Displacement	L	4.329
Main Performance	Travel speed	km/h	5.16/3.03
	Swing speed	r/min	12.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	42
	Max.Bucket digging force	kN	85
	Max.arm crowd force	kN	65
	Max.traction force	kN	134
	Rate flow of main pump	L/min	2×123
	Max pressure of prime relief valve	MPa	31.4/34.3
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	25
	Max pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	250
	Hydraulic tank capacity	L	130
	Engine lubrication	L	14
Dimentions	Overall length	mm	7770
	Overall width	mm	2512
	Overall height	mm	2880
	Overall width of upperstructure	mm	2512
	Track length	mm	3660
	Overall width of undercarriage	mm	2490
	Crawer width	mm	500
	Track length on ground	mm	2910
	Crawer gauge	mm	1990
	Clearance under counter weight	mm	964
	Ground clearance	mm	478
	Min.tail swing radius	mm	2294
Work Scope	Max. digging height	mm	8641
	Max. dumping height	mm	6181
	Max. digging depth	mm	5538
	8inch horizonal digging depth	mm	5287
	Max. vertical wall digging depth	mm	4727
	Max. digging reach	mm	8296
	Min. swing radius	mm	2335
