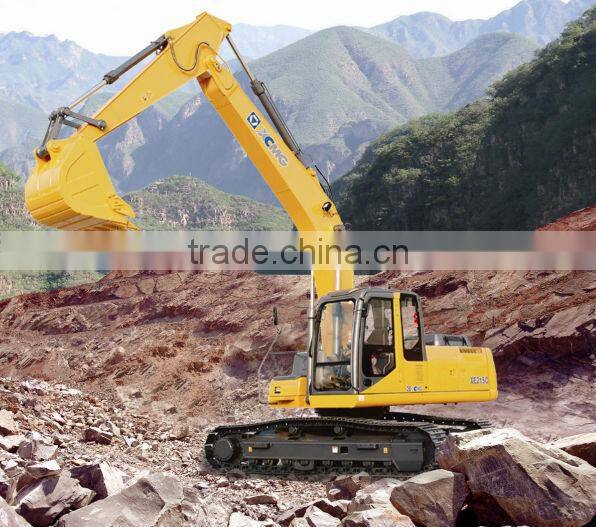

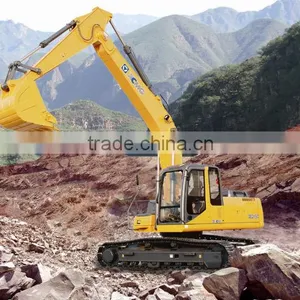

21.5ton Excavator

Name: 21.5ton Excavator
Brand: XCMG
SKU: 141324686
Availability: InStock

US$ 18,000 - 660,000 MOQ: 1 Unit

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

XCMG

Model Number:

XE215C

Shanghai Canmax Electronic And Mechanical Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any port of China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number XE215C

Condition New

Moving Type Crawler Excavator

Maximum Digging Height 9640mm

Maximum Digging Depth 6650mm

Specifications

1.Operating weight:21450kg;
2.Bucket capacity: 1.0;
3.Engine:ISUZU BB-6BG1TRP.

Specifications

Model		Unit	XE215C
Operating weight		kg	21450
Standard bucket capacity		m³	0.8~1.0
Engine	Engine Model	/	ISUZU BB-6BG1TRP
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo charged	/	√
	Air to air intercooler	/	×
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	106.5/1950
	Max. torque/speed	N.m	551/1600
	Displacement	L	6.494
Main Performance	Travel speed	km/h	5.5/3.3
	Swing speed	r/min	13.3
	Max. gradeability	/	≥35
	Ground pressure	kPa	45.5
	Max.Bucket digging force	kN	138
	Max.arm crowd force	kN	103
	Max.traction force	kN	184
	Rate flow of main pump	L/min	2×206
	Max pressure of prime relief valve	MPa	31.5/34.4
	Max pressure of travel system	MPa	34.3
	Max pressure of swing system	MPa	28
	Max pressure of pilot system	MPa	3.9
Oil Capacity	Fuel tank capacity	L	360
	Hydraulic tank capacity	L	220
	Engine lubrication	L	25
Dimentions	Overall length	mm	9525
	Overall width	mm	2990
	Overall height	mm	3000
	Overall width of upperstructure	mm	2710
	Track length	mm	4270
	Overall width of undercarriage	mm	2990
	Crawer width	mm	600
	Crawer gauge	mm	2390
	Clearance under counter weight	mm	1050
	Ground clearance	mm	470
	Min.tail swing radius	mm	2750
Work Scope	Max. digging height	mm	9640
	Max. dumping height	mm	6800
	Max. digging depth	mm	6655
	8inch horizonal digging depth	mm	6470
	Max. vertical wall digging depth	mm	5695
	Max. digging reach	mm	9925
	Min. swing radius	mm	3530
