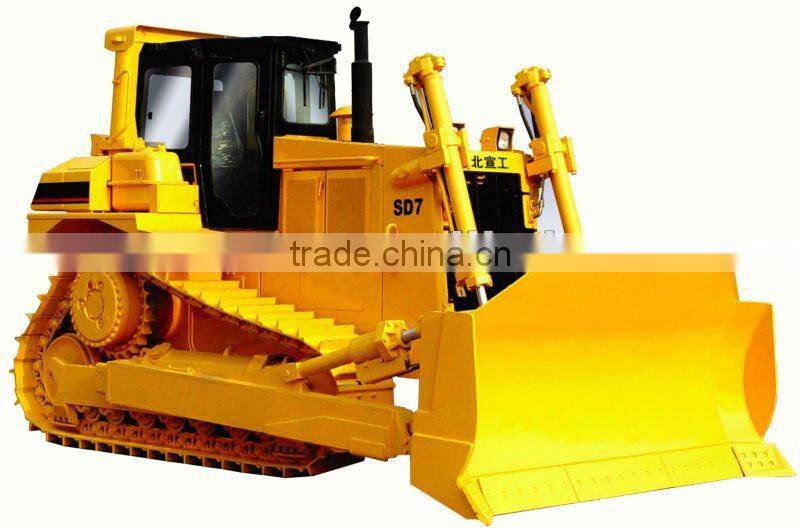

SD7HW bulldozer1.Good quality,low price.
2.World famous brand,professional service
3.Engine:Cummins,NT855-C280
SD7HW bulldozer is specifically for the sanitation department's landfill, leveling, compaction and other operations designed to produce a high-drive bulldozer, the host structure is novel, flexible manipulation, ride comfort, quality, reliable, powerful, excellent performance high productivity; working device using sanitation type shovel, walking system with anti-winding devices, protective devices may at any time after traction removal of waste material on the track, through the automatic lubrication device, the driver can complete the driver's indoor track and auto-tensioner the major part of the grease lubrication of regular auto fuel, which greatly facilitate the users.
Project Parameters
Use quality (kg) 27000
Dimension L × W × H (mm) 6001 × 4382 × 3402
Ground pressure (kPa) 42.9
Maximum traction force (kN) 197.9
Ground clearance (mm) 484
Track gauge (mm) 2235
Vertical ramp angle 30 °
Lateral ramp angle 25 °
Minimum turning radius (mm) 4570
Diesel
Model NT855-C280 (Cummins)
Form a separate water-cooled four-stroke turbocharged vertical
Cylinders - Bore × Stroke (mm) 6-140 × 152
Rated power (kW) 177
Rated power (kW) 162
Rated speed (rpm) 2100
Fuel consumption (g / kW · h) 235
Work unit Lifting height (mm) 1170
Digging depth (mm) 635
Blade height (mm) 1750
Blade width (mm) 4382
Blade capacity (cubic meters) 13.4
