Home > Products > Construction Machinery > High Quality Chinese Pengpu Crawler bulldozer

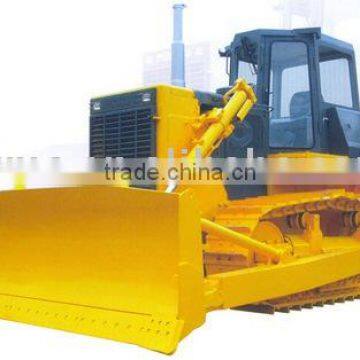

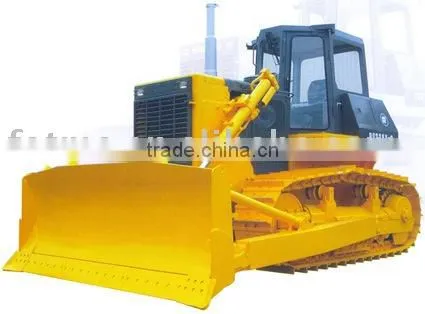

High Quality Chinese Pengpu Crawler bulldozer
- 100 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Guangxi, China | Brand Name: | PD | Model Number: | PD220Y Bulldozer |
Moving Type: | Crawler Bulldozer | Machine Weight: | 25500KG | ||
Dimension(Long * Breadth * High): | 5700*3725*3575mm |
Packaging Details
export package in nud, shiping by RO-RO vessel or as required
Product Description
Specifications
High Quality Chinese Pengpu Crawler bulldozer Power:110Hp~410HpDozer Engine: Shangchai, Cummins
Bulldozer
PD220Y Bulldozer Technical Parameter:
Product Model | PD220Y-1 | PD220YS |
ENGINE | ||
Model | Cummins NT-855-C280 | |
Type | water cooling, 6-cylinder 4 strokes, turbo-charged, direct injection diesel engine | |
Flywheel power (HP) | 220Hp | |
Rated speed (r/min) | 1800 | |
Number of cylinders-bore×stroke (mm) | 6-139.7×152.4 | |
Starting method | Starting motor 24V 11kW | |
Battery | 24V (12V×2)-195AH | |
Air cleaner | Dry horizontal type with precleaner | |
TRANSMISSION SYSTEM | ||
Torque converter | 3-element, single-stage, single phase | |
Transmission | Planetary gear, multiple-disc clutch, hydraulic actuated, forced lubrication by gear pump, 3 forward speeds and 3 reverse speeds. | |
Bevel gear | Spiral bevel gear, Splash lubricated | |
Steering clutch | Wet, Multiple disc,clutch, Spring loaded, hydraulically actuated | |
Steering brake | Wet, band brake, operated with hydraulic booster and valve inner linkage | |
Final drive | Spur gear, double reduction, splash lubrication | |
UNDER CARRIAGE | ||
Sprocket | Segmented | |
Number of track shoes (each side) | 6 (4 single, 2 double) | |
Track tension | Hydraulic adjusted | |
*Floating seals are used in all track rollers,carrier rollers,sprocket and front idlers | ||
TRAVEL SPEED (km/h) | 1st | 2nd |
Forward | 3.6 | 6.5 |
Reverse | 4.3 | 7.7 |
TRACK | ||
Type | Sealed single grouse | |
Track pitch (mm) | 216 | 216 |
Track width (mm) | 560 | 945 |
Number of track shoes (each side) | 38 | 45 |
Length of track on ground (mm) | 2730 | 3490 |
Ground clearance (mm) | 405 | 450 |
Ground pressure (Mpa) | ≤78 | ≤0.038 |
Track gauge (mm) | 2000 | 2250 |
HYDRAULIC SYSTEM OF WORK EQUIPMENT | ||
Working pressure (Mpa) | 13.7 | |
Rated delivery (L/min) (2000r/min) | 257 | |
Pump | CBT3160 gear pump | |
Control valve | Hand-operated plunger servo controlling | |
Valve position | Raise, Hold, Lower, Float | |
Cylinder,Boro×Rod×Stroke (mm) | Φ120×Φ70×1054 | Φ120×Φ70×1293 |
WORK EQUIPMENT | ||
Blade type | Straight tilt blade | |
Width×Height (mm) | 3725×1315 | 4365×1260 |
Max.lift above ground (mm) | 1210 | 1350 |
Max.drop below ground (mm) | 540 | 500 |
Pitch adjustment (°) | 55 | 55°30 |
Bit lifting speed (m/s) | ≥0.35 | ≥0.35 |
Gradeability (°) | 30 | 30 |
Max.tilt (mm) | 735 | 500 |
Rippe Length×Width×Height (mm) | 5700×3725×3575 | 6061×4365×3611 |
Weight (kg) | 25500 | 26000 |
Welcome your inquiry.
Company Profile
Hubei Fotma Machinery Co., Ltd. is a professional manufacturer and supplier of industrial products especially in the field of farm machinery and construction equipment.
Our annual turnover is over 20 million US dollars. We have highly qualified staff, including both senior employees who have more than 20 years' import/export experience and new employees who have just graduated from foreign trade colleges.
"Quality First, Price Best, Service Foremost" is our business principle. We can also process the goods according to your individual needs. Featuring high quality standards, rigorous management measures and advanced technology, we have built up a fine reputation among both domestic and overseas customers.
We have traded in over 100 countries in the world. We will be glad to work with worldwide new partners.
