Help Center23tons Excavator JY230E
Related Products
-
3.5tons Excavator JY603US$ 20,000 - 25,000MOQ: 1 Set -
8tons Excavator JY608US$ 30,000 - 35,000MOQ: 1 Set
-
28tons Jonyang Hydraulic Crawler Excavator JY628US$ 90,000 - 100,000MOQ: 1 Set
-
30tons Excavator JY630US$ 95,000 - 100,000MOQ: 1 Set
-
Jonyang 32tons Hydraulic Crawler Excavator JY632US$ 120,000 - 125,000MOQ: 1 Set
Specifications

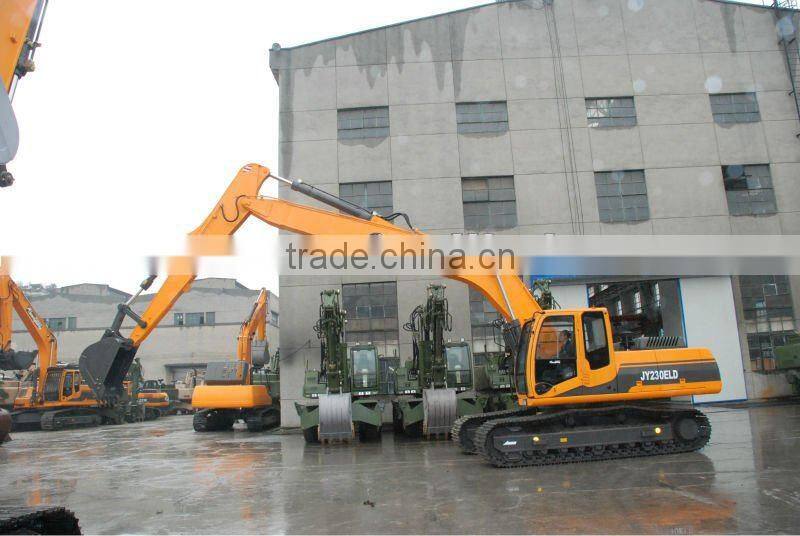

23tons excavator JY230E1.Good quality, low price.
2.Bucket capacity:1.0m3.
3.Operating Weight:23t.
Features:
1,Engine,hydraulic pump,valve,swivel pump and drive motor are from world
renounced international manufacturers.
2,Dual Hydraulic pump system cum with reverse flow control for efficient and economical usage of the engine output .
3,Latest technology in electrical control system for both operation and preventive action .
4,The mobility of the excavator is fitted on to the tracked pontoon to reduce ground pressure for both solid ground and swamp areas. The pontoon structure are designed with multiple compartment for both safety and floatation system.
5,Ergonomically design air-conditioned and wide vision cabin for comfort of the operator.
6,Suitable for operation in hydro-electric project, mining,road construction,sea and air ports,city dwellings and other construction projects.
| Operating Weight(Tons) | 23 | Hydraulic Flow Rate(L/min) | 2X235 |
| Standard Bucket Capacity(m3) | 1.0 | Hydraulic Pressure(Mpa) | 30 |
| Range of Bucket Capacity(m3) | Travelling Speed(km/h) | 3-5 | |
| Diesel Engine Manufacturer | Cummins | Grade Climbing Capacity(%) | 65 |
| Engine Model | 6BTA5.9-C | Slewing Speed(r/min) | 13 |
| Engine Power(KW) | 126 | Stick Digging Force(KN) | 100 |
| Hydraulic System | Bucket Digging Force(KN) | 130 |
| A | Overall Length(mm) | 9845 |
| B | Overall Width(mm) | 3000 |
| C | Overall Height of Boom(mm) | 3300 |
| D | Overall Height of Cab(mm) | 2755 |
| E | Engine Cover Height(mm) | 2300 |
| F | Counterweight Clearance(mm) | 1060 |
| G | Ground Clearance(mm) | 465 |
| H | Upperstructure Width(mm) | 2710 |
| I | Rear-End Length/Swing Radius(mm) | 2940 |
| J | Overall Track Length(mm) | 4510 |
| K | Track Length on ground (mm) | 3720 |
| L | Gauge Width (mm) | 2400 |
| M | Track Width(mm) | 600 |
| N | Ground Pressure(mm) | 0.045 |
| O | Boom Slew Angle(right/left)(mm) | 0 |
