Combine Harvest

PRODUCT SPECIFICATION:

OVERALL DIMENSION (mm): Length 4450 × Width 1810 × Heights 2480

WEIGHT (kg): 2200

FEEDING CAPACITY (kg/s): 1.6

HARVESTING CAPACITY (hm²/h): 0.1-0.4

ENGINE: Engine Model: SL3105ABN

                Rated Power ( kw/hp ):   42.2/57.4 (Alternative)

                Engine Type:   Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel

                Rated Rotation Speed (r/min) :   2600

                Fuel Tank Capacity ( l ):   47

DRIVING SYSTEM: Crawlers:   Track Gauge (mm): 850;  Width×ground contact length ( mm ): 350×1480

                                  Crawler Steering Radius (mm):   left turn 2750;  right turn 2750

                                  Minimum Ground Clearance (mm):   210

                                  Type of Gearbox:   Mechanism + HST(3F, 3R)

                                  Theoretical Operating Speed ( km/h ):    0~4

                                  Type of Brake:   By Foot

                                  Steering:   Clutch and Brake

CUTTING HEAD:  Pickup Reel:   Type: Tooth (off-centre );  Diameter( mm ): 900;  Nos: 5

                               Height Adjustment:   Hydraulics

                               Cutting Bar Length (mm ):   1600

                               Type of Cutting Bar Auger:   Screw Conveying

                               Type of Blade:   V Type / Left and Right

                               Rape Seed Extension: Optional

THRESHING & SEPARATING & CLEANING SYSTEM: Threshing System: Spiked Tooth Axial Flow

                                                                                              Main Threshing Cylinder Size Diameter × Length ( mm ):   443×958

                                                                                              Assistant Threshing Cylinder Size Diameter × Length ( mm ):   443×408

                                                                                              Reshresher:   Blade-Rotation

                                                                                              Concave Sieve: Grid × 2

                                                                                              Blower Fan:   Type: Swirl;  Diameter( mm ): 300;  Nos: 2

GRAIN STORING:  Machanism Option: Grain Tank with Unloading Auger, Capacity:   778L

                                Manual Operation

Product Description

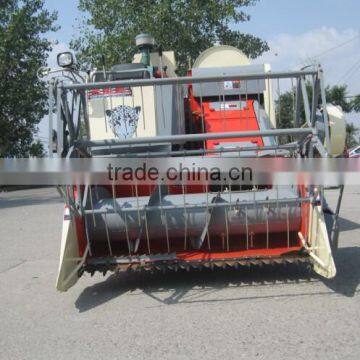

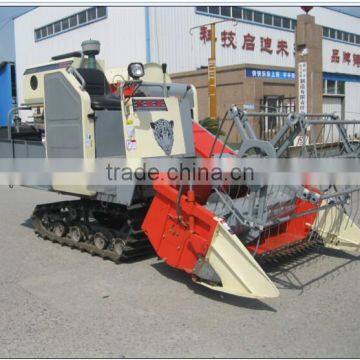

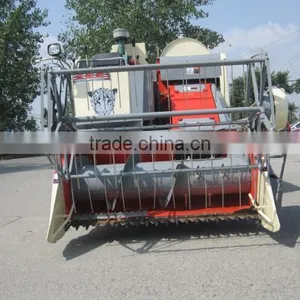

 4LYZ-1.6 combine harvester with excellent performance in different crops and different field conditions, the machine is easy for operation and maintenance, it is a safety and energy-saving machine.

Packaging & Shipping

 Strong standard export package suitable for long distance transportation.
