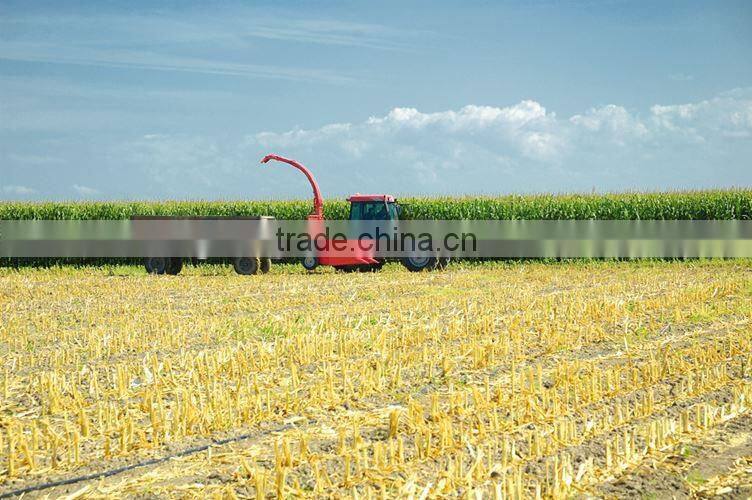

NEW 2016 MADE IN CHINA! row independent silage hay maize chopper

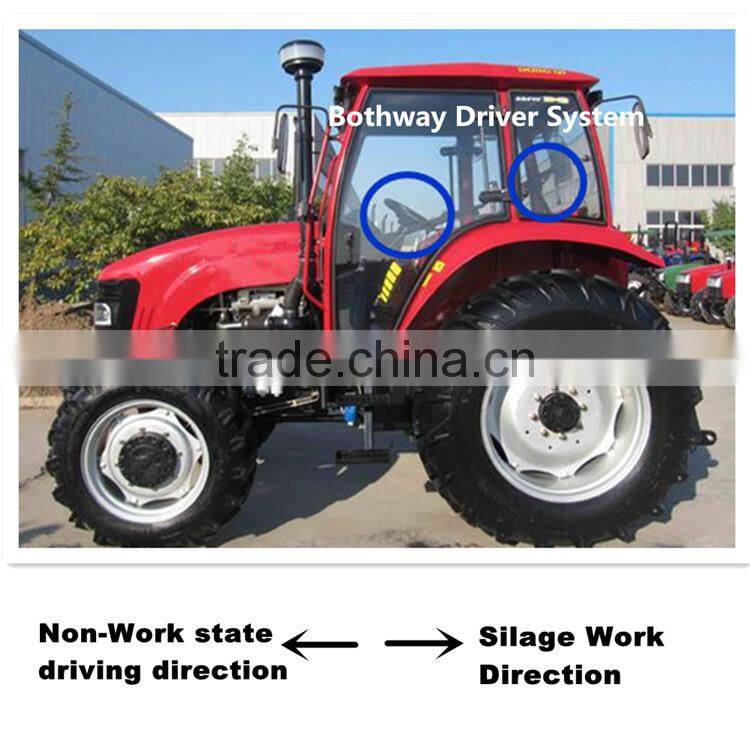

9SH-1200 is SONGHAI's unique design, this design embodies the high efficiency and multi-function. It can be equipped with 94-114 horsepower tractors, selectively installed cab, air conditioning system and all kinds of tires. When you finished the work of silage harvest, you can unload silage device, then use it as a tractor. It equipped with silage boxes, also can spilled to the accompanying truck. Every farmers who ever drive it all give a good evaluation.
Key Features

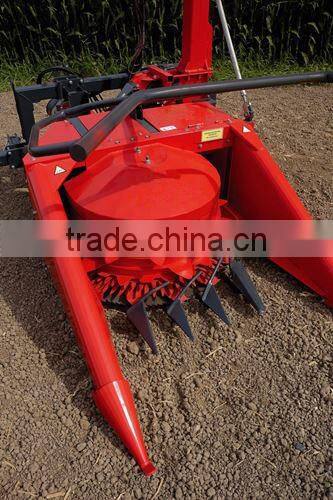

1. The Row Independent Maize Chopper has a working width of 1,25m. and with its cutter and feeder drum it can chop two rows of maize at one pass. One of the most important specification of the machine is its foldable chassis. The chassis can be folded so that the machine stays behind of the tractor. By driving backwards the machine can open a way in the middle of the field in order to decrease the number of turns on the field and decrease the fuel consumption of tractor.

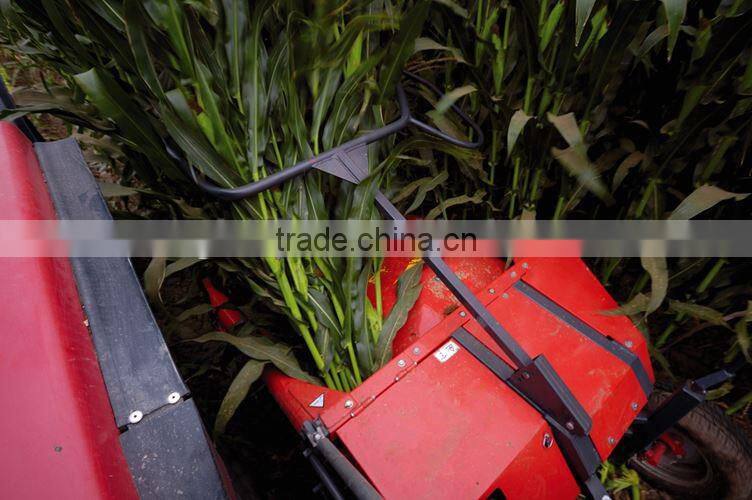

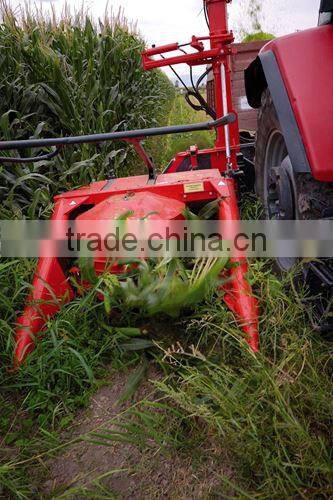

2. The cutter and feeder drum carries the maize to the feeding unit. Row independent maize chopper's feeding system is designed to feed the flywheel at right angles for the best quality silage. The flywheel is equipped with 10 special hardened knives revolving at nearly 1400 rpm. There are two feeder drums and two pressure rollers that control the feeding of the maize to the flywheel. One of the pressure rollers is spring loaded and toothed, while the other one is not. The pressure rollers are vertically mounted right behind the feeder drums so that stems and cobs are always chopped at right angle. This is the secret of the machine's low power requirement and short length of chop.
3. For the protection of the feeding system an easily accessible shear bolt is mounted on the machine. It protects the feeding system against the intake of earth and stones in bad conditions.
4. While in operation, height adjustable wheel maintain an even working height thus preventing the intake of earth and stones in bad conditions.
5. The chute system of the machine is easily controlled hydraulically by the tractor. The chute has enough length and height to reach the trailer in front while driving backwards. Also it has an optional extension accessory for loading trucks and high trailers.
6. Knife grinding is easily carried out with the built-in sharpening device.
7. The height of the machine can be reduced by folding down the upper part of the chute.
Technical Data
| CHARACTERISTICS | BIGDRUM |
| Number of Rows | 2 |
| Length (m) | 3,05 |
| Height (m) | 3,96 |
| Width (m) | 3,30 |
| Chute Height (m) | 2,20 |
| Weight (kg) | 1400 |
| Number of Knives | 10 |
| Number of Blowers | 10 |
| Tyre | 165 / 80 R13 |
| 3 Point Hitch | Cat.II |
| PTO(rpm) | 540 |
| Minimum Power (kW/hp) | 64 / 90 |
| Cutting Length | 4,5 - 6 - 10 - 15 mm. |
| Capacity | 49 tones/hour |
Product Details

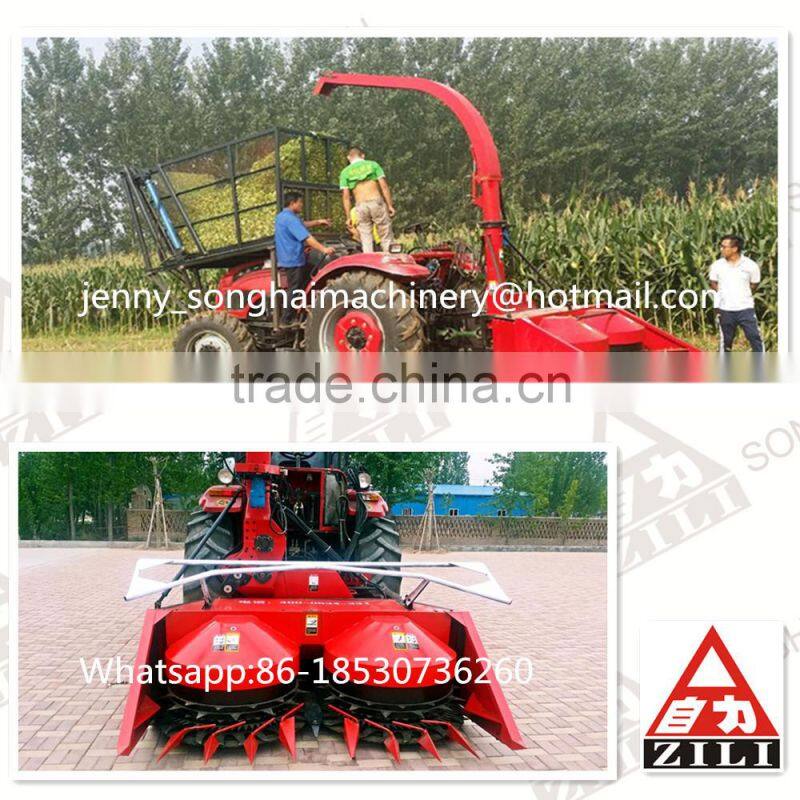

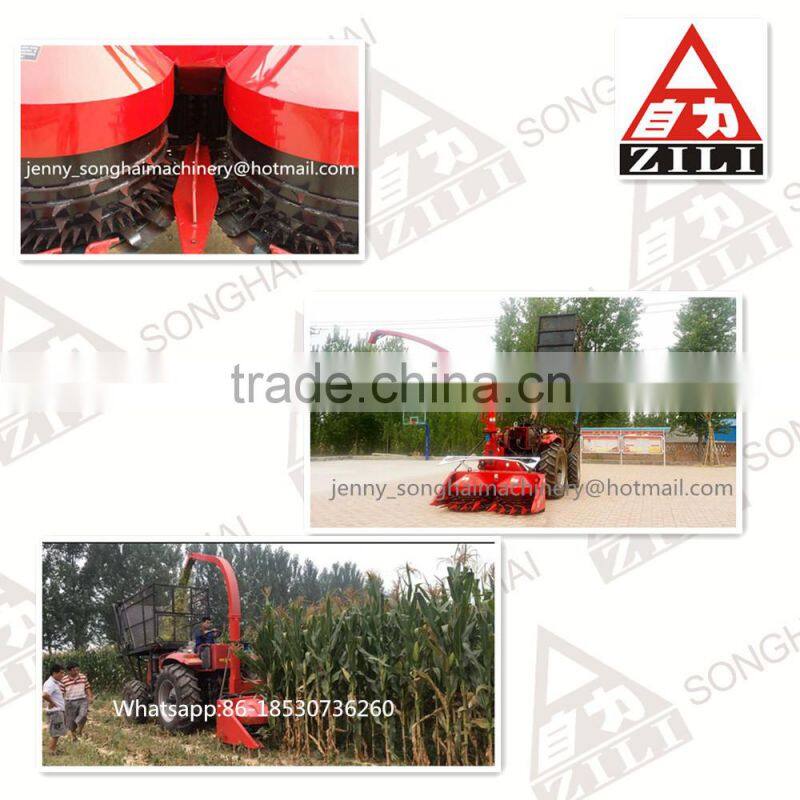

Two Headers of Forage Harvester:
| 1. Manufacturer Service (1) Provide goods according to customer need; (2) Keep superior quality forever; (3) Finish deal with reasonable price. |
|
2. Online Service (1) Timely response online by Skype or Trade manager; (2) Keep in touch by Email or Phone.
|
|
3. Shipping Service (1) Standard export package or as customer need; (2) Fast and punctual delivery.
|
|
4. After-Sales Service (1) Offer service for your project and factory building; (2) Repair & Maintenance in the guarantee period; (3) Installation and clerks training; (4) Spare and wearing parts provided for free or big discount; (5) Ask feedback from you to serve you better in the future. |
SONGHAI is a leading manufacturer of farm machines, woodworking machines motors in China for over 18 years. SONGHAI BRAND has been successfully established and highly recognized in the domestic market as well as abroad.
1. Q: Where is your company located ?
A: Our company is located in Nidian Industrial Area, Guangwu Town, Zhengzhou City, Henan Province, China.
2. Q: What is the delivery time ?
A: It depends on order quantities. Generally speaking, the delivery time will be within 10-25 days.
3. Q: How to pack the products ?
A: Products will be packed by standard wooden case or paper-plastic package. After you receive products, you only need to open wooden case (or paper-plastic package) to pick up them. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
4. Q: How to install after the equipment arriving destination ?
A: We will provide detailed illustrations to you. If it is neccessary, we will send technicians to
help you. However, the visa fee, air tickets, accommodation, wages will be paid by buyers.
5. Q: How long is the warranty of your equipment ?
A: 1 year warranty after check upon delivery. And we will comprehensively provide you all
kinds of technical support service in after-sale !
