Home > Products > New Products > K-BOS COMBINE HARVESTER 4LZ-1.6/2.2Z

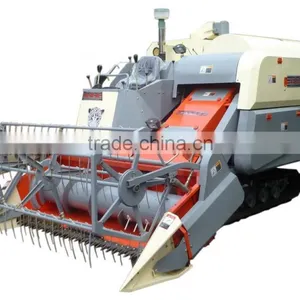

K-BOS COMBINE HARVESTER 4LZ-1.6/2.2Z
Negotiable
/ Set
3 Sets(Min. Order)
- TIANJIN CHONGQING SAHNGHAI
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Application | Wheate, grain,rape seed | |
| Type | Combine Harvester | Drive Type | Gear Drive | |
| Usage | Grain Harvester | Place of Origin | Sichuan, China | |
| Brand Name | K-BOS | Model Number | 4LZ-2.2Z/1.6Z | |
| Dimension(L*W*H) | 4250*1910*2060 | Weight | 1850 | |
| Warranty | 1 year | After-sales Service Provided | Overseas service center available |
Product Description
Specifications
the big grain tank is convenient for storing and uninstalling the grain, lots of different typs of crawler are offered.| Model: | 4LYZ-1.6Z/2.2Z Combine Harvester | Application: | Grain, Wheat, Rape Seed. | |
| Type: | Full-feed, Track Combine | Safety & Handling: | See Product Brochures. | |
| Make: | JinYang Bao | Occupation: | Manufacturer | |
| Product Description: | 4LYZ-1.6Z/2.2Z combine with excellent performance in different crops and different field conditions, | |||
| the machine is easy for operation and maintenance, it is a safety and energy-saving machine. | ||||
| Quality System: | Production Plant Accredited to GB/T 19001-2008 / ISO9001 :2008. | |||
| Packing: | Strong standard export package suitable for long distance transportation. | |||
| Specification: | ||||
| Overall Dimension | Length×Width×Heights ( mm ): 4250*1910*2060 | |||
| Weight (kg) | 1850 | |||
| Feeding Capacity( kg/s ) | 2.2 | |||
| Harvesting Capacity(hm²/h): | 0.2-0.4 | |||
| Engine | Engine Model: SL3105ABN; | |||
| Rated Power ( kw/hp ): 32/33.8/36.8 | ||||
| Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel. | ||||
| Rated Rotation Speed (r/min) : 2400 | ||||
| Fuel Tank Capacity ( l ): 47 | ||||
| Driving System | Crawlers: Track Gauge( mm ): 850; Width×ground contact length ( mm ): 350×1480 | |||
| Crawler Steering Radius ( mm ): left turn 2750; right turn 2750 | ||||
| Minimum Ground Clearance (mm): 210 | ||||
| Type of Gearbox: Mechanism + HST(3F, 3R) | ||||
| Theoretical Operating Speed ( km/h ): 0~4 | ||||
| Type of Brake: By Foot. | ||||
| Steering: Clutch and Brake. | ||||
| Cutting header | Pickup Reel: Type:Tooth ( off-centre ); Diameter( mm ): 900; Nos: 5 | |||
| Height Adjustment: Hydaulics. | ||||
| Cutting Bar Length ( mm ): 1600 | ||||
| Type of Cutting Bar Auger: Screw Conveying. | ||||
| Type of Blade: V Type / Left and Right. | ||||
| Rape Seed Extension: Optional | ||||
| Threshing & Separating | Threshing System: Spiked Tooth Axial Flow | |||
| & Cleaning System | Main Threshing Cylinder Size Diameter × Length ( mm ): 443×958 | |||
| Assistant Threshing Cylinder Size Diameter × Length ( mm ): 443×408 | ||||
| Reshresher: Blade Rotation. | ||||
| Concave Sieve: Grid × 2 | ||||
| Blower Fan: Type: Swirl; Diameter( mm ): 300; Nos: 2 | ||||
| Grain Storing | Option 1: Grain Tank with Unloading Auger, Capacity ( l ): 778 | |||
| Option 2: Manual Operation. | | |||
