Product Details
| Condition: | New | Application: | Grain, Wheat, Rape Seed. | Type: | Combine Harvester |
| Drive Type: | Gear Drive | Usage: | Grain Harvester | Place of Origin: | Sichuan, China |
| Brand Name: | K-BOS | Model Number: | 4LZ-2.0 | Dimension(L*W*H): | 4550*2350*2300 |
| Weight: | 2450 | Certificate: | CE | Warranty: | 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
more convenient,more securitySpecifications

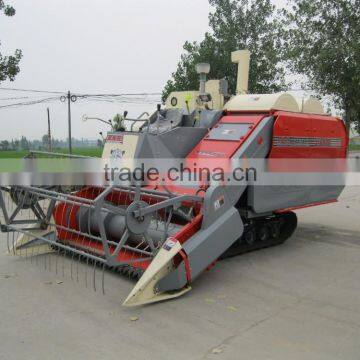

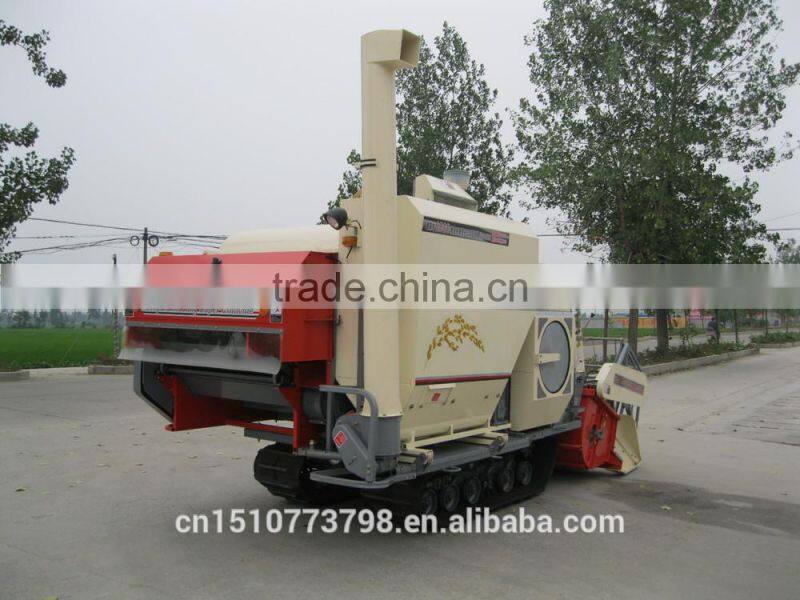

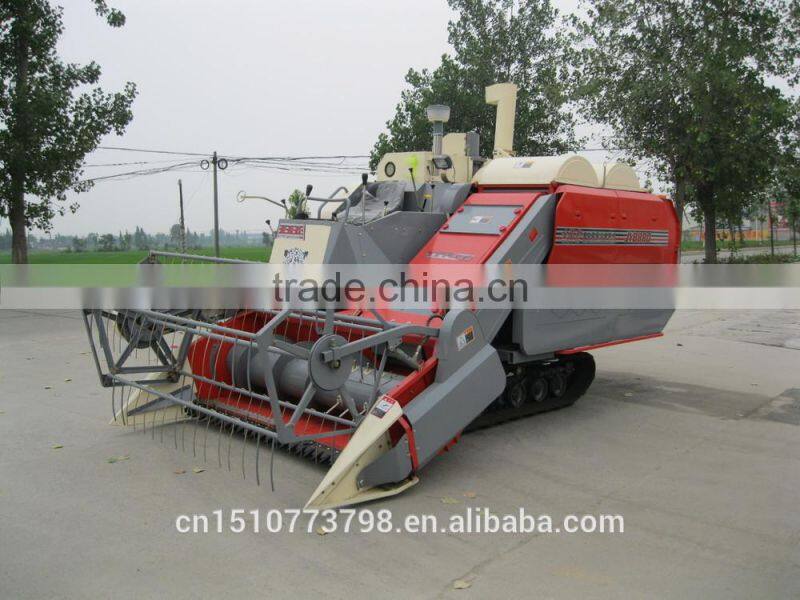

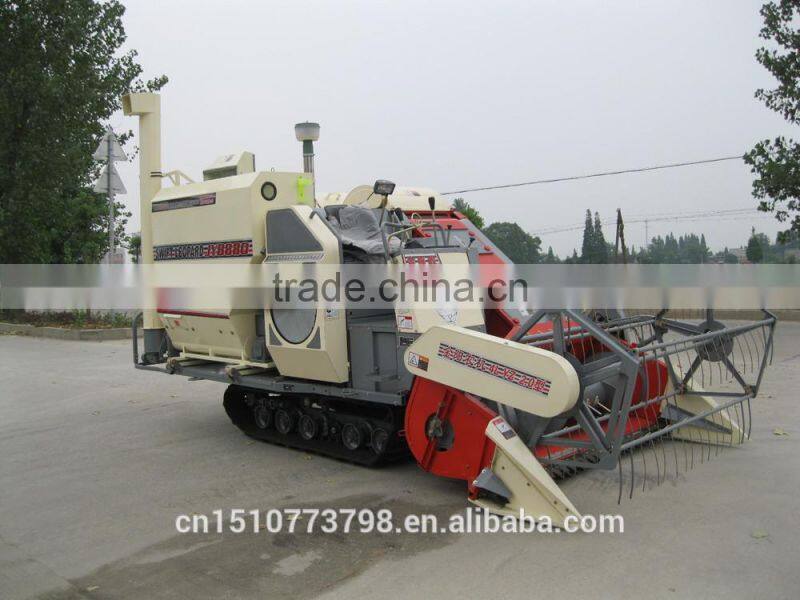

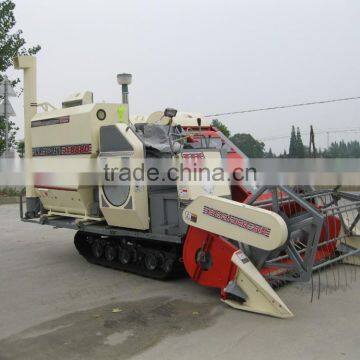

K-BOS 4LYZ-2.0 COMBINE HARVESTER
PRODUCT SPECIFICATION:
OVERALL DIMENSION (mm): Length 4550 × Width 2350 × Heights 2300
WEIGHT (kg): 2450
FEEDING CAPACITY (kg/s): 2.0
HARVESTING CAPACITY (hm²/h): 0.2-0.4
ENGINE: Engine Model: 498BT/BZT/L
Rated Power ( kw/hp ): 65/88, 55/75(Alternative)
Engine Type: Water-Cooled, 4-Cylinder, DI-Injection, Vertical Diesel, Turbocharged Engine.
Rated Rotation Speed (r/min) : 2600
Fuel Tank Capacity ( l ): 70
DRIVING SYSTEM: Crawlers: Track Gauge (mm): 970; Width×ground contact length ( mm ): 400×1500
Crawler Steering Radius (mm): left turn 3400; right turn 3400
Minimum Ground Clearance (mm): 280
Type of Gearbox: Mechanism + HST(3F, 3R)
Theoretical Operating Speed ( km/h ): 5
Type of Brake: By Foot
Steering: Clutch and Brake
CUTTING HEAD: Pickup Reel: Type: Tooth (off-centre ); Diameter( mm ): 900; Nos: 5
Height Adjustment: Hydraulics
Cutting Bar Length (mm ): 2000
Type of Cutting Bar Auger: Screw Conveying
Type of Blade: V Type / Left and Right
Rape Seed Extension: Optional
THRESHING & SEPARATING & CLEANING SYSTEM: Threshing System: Spiked Tooth Axial Flow
Main Threshing Cylinder Size Diameter × Length ( mm ): 540×1285
Assistant Threshing Cylinder Size Diameter × Length ( mm ): 540×650
Reshresher: Blade-Rotation
Concave Sieve: Grid × 2
Blower Fan: Type: Swirl; Diameter( mm ): 335; Nos: 2
GRAIN STORING: Machanism Option: Grain Tank with Unloading Auger, Capacity: 1149L
Manual Operation
Product Description
4LYZ-2.0 combine harvester with excellent performance in different crops and different field conditions, the machine is easy for operation and maintenance, it is a safety and energy-saving machine.
Packaging & Shipping
Strong standard export package suitable for long distance transportation.
