Gold Mining High Efficient Centrifugal Concentrator
1.Parameter:
Model | STL19 | STL30 | STL60 | STL80 | STL100 |
Capapcity T/H | 0.25-0.30 | 3-5 | 15-20 | 40-50 | 80-100 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Concentrate production (kg per time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Overall Size mm | 790×785×790 | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
Weight | 300kg | 500kg | 1300kg | 1800kg | 2800 |
2.Feature:
1)Gold concentrator is a kind of centrifugal separation equipment.It is suitable for
the recycle of alluvial gold, placer gold and polymetallic ore’s gold recycling.
2)Instead of mercury board operations, it’s the ideal choice for gold mining in land or river.
3)The beneficiation test certificate that placer gold recovery rate maximum can reach 96%.
4)Rock gold ore period is 1 to 4 hours. Alluvial gold is 4 to 8 hours. Enrichment ratio can reach 500-1000 times.

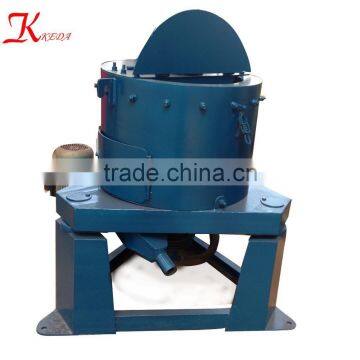

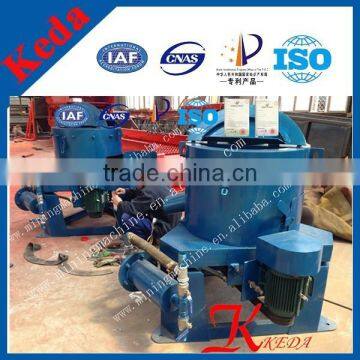

3.Details about the product:

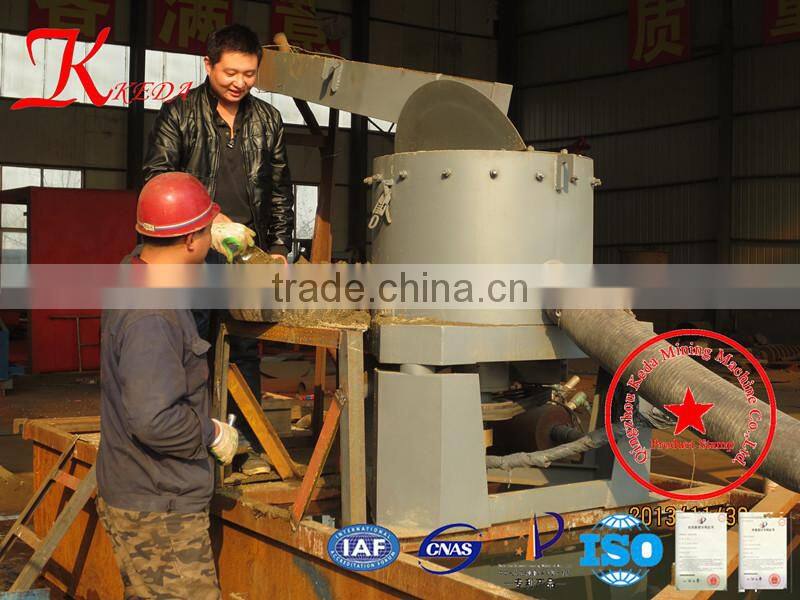

4.The mechine is the worksite:
5.Product in Gold Mining Procedure:
Qingzhou Keda Mining Machine Co.,Ltd. specialized in dredgers for various industries: Environmental, Sand Production and Mining Machine.
1)Produced a variety of series products , such as : cutter suction dredger, bucket chain dredger, self- propelled dredger, gold panning dredger, iron extracting dredger, sand sieving machines, crusher, gold separator equipment line, and various kinds of machines for mining equipment.
2)owned the professional R&D department, CAD drawing design center, quality control department and Installation & Adjustment to After Service .
3)Customize special dredging and mining equipment according to different environment and customer requirement which can accomplish the whole set of working procedures of filtering , extracting , separating, washing , classifying and put our qualified products directly.
4)The experienced engineers will work closely with you to customize a best dredging solution for
your particular needs.
5)Had developed a dominant role in the dredge manufacturing industry and expand our market to many countries.
1)After sales technical support,machine installation,spare part service,anticipated training
for our customers are provided by our specialist engineers and technicians.
2)Our technical service department is ready to serve and reslove your questions via online support,phone calls or on-sit support.
3)We reckon service insight to increase the levels of challenge with our specialized technical staff.Genial customer relations,technical facilities for intact spare parts deliverised with
spare part labor warranty,affordable spare parts and on site service are just a few examples
of our professinal custoemer approach.
The best quality, excellent service, good credit, competitive price, the abundant strength, what made us confidence with your satisfaction.
Welcome to visit our factory anytime, and if you have any question, please fell free to contract me, I will do my best to help you.
