Alluvial Gold Centrifugal Concentrator Separator Machine

FOB Price

USD $2,000 - $30,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	Type:	Gravity Separator	Production Capacity:	8-80t/h
Place of Origin:	Shandong, China	Brand Name:	KD	Model Number:	KDSTL
Voltage:	280V or 360V	Power(W):	4-15kw	Dimension(LWH):	115013601250
Weight:	4-11t	Certification:	ISO9001	Warranty:	12 months
After-sales Service Provided:	Engineers available to service machinery overseas

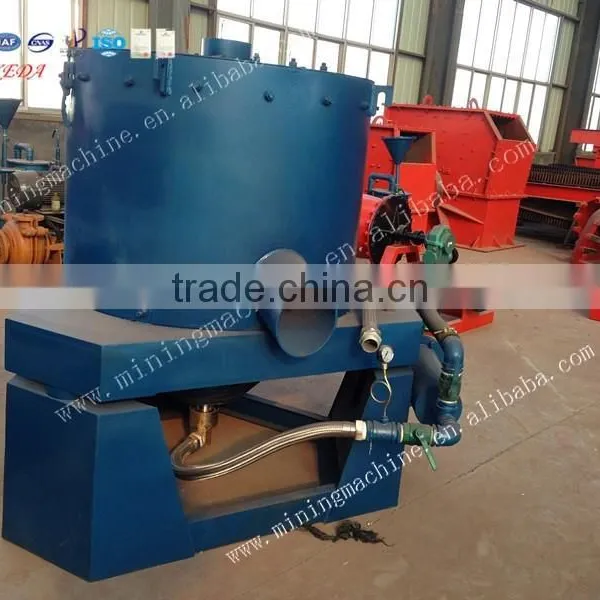

Alluvial Gold Centrifugal Concentrator Separator Machine

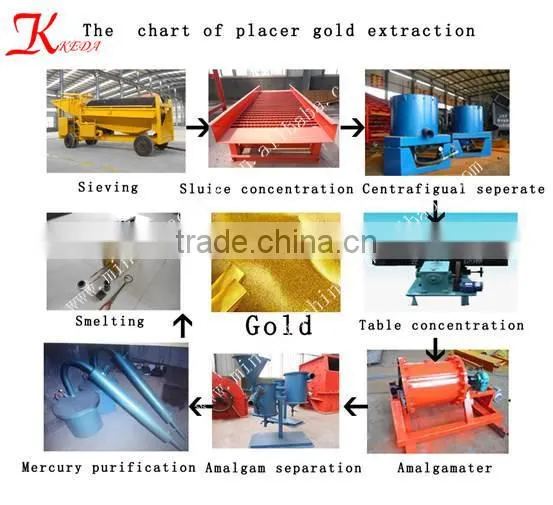

Product in Gold Mining Procedure

Feature

1.ISO9001

2.High recovery rate, more than 95%

3.Low investment & high income

4.Low maintenance

5.Labour saving

6.Easy to operate

Parameter

Model	STL19	STL30	STL60	STL80	STL100
Capapcity T/H	0.25-0.30	3-5	15-20	40-50	80-100
Feed particles mm	0-3	0-4	0-6	0-6	0-6
Feed density %	0-50%	0-50%	0-50%	0-50%	0-50%
Recoil of water T/H	1.5-2	4-6	10-15	17-25	40-60
Concentrate production (kg per time)	2-3	10-20	30-40	60-70	70-80
Motor Power kw	0.75	3	7.5	11	18.5
Cone rotational speed	800	600	460	400	360
Water Pressure MPa	0.04	0.1	0.16	0.18	0.2
Overall Size mm	790×785×790	1150×1360×1250	1970×1670×1750	2300×1800×2200	2500×2000×2400
Weight	300kg	500kg	1300kg	1800kg	2800

Details about the product

Qingzhou Keda Mining Machine Co., Ltd.: Contact nameLily Su; Phone0086-0536-2105419; AddressMihe Industry Park, Mihe Town, Qingzhou
