Specifications
Top Quality Gold Centrifugal Machine made in china1.Recovery rate>97%
2.ISO9001:2008
3.Reliable structure
4.Type:knelson

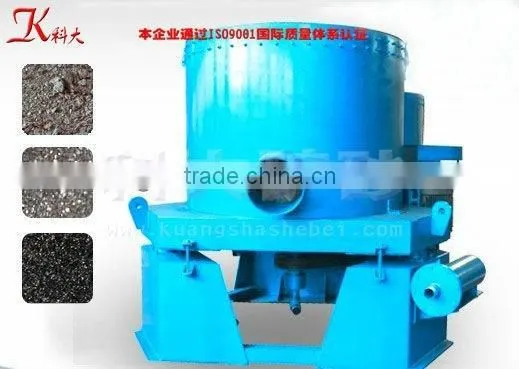

Nelson Type gold centrifugal separator for sale
Gold Centrifugal Machine is a special kind of gravity concentrating machine for gold mining. It will produce big centrifugal force when rotating, and strengthen gravity process, to make the superfine particle effectively recover. Gold Centrifugal Machine has a lot of obvious advantages compare to the other gold sepration facilities:
a. Wide application range : It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.
b. High recovery rate: test proved, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 0.04mm.
c. Quick return, high profits: usually, the investor can Achieve profitability within half a year.
d. Environment friendly: The machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved. No harm to the operator and environment.
e. Standard quality: Knelson Centrifugal Machine gets a simple and tough structure, the main body is made by strong steel, and the concentrate cone is made by stainless steel. And the bearing is greased to keep it running well.
Basic Parameter:
| Model | KDL30 | KDL60 | KDL80 | KDL100 |
| Capacity (t/h) | 3-5 | 15-20 | 40-50 | 80-100 |
| Feed Particles (mm) | 0-4 | 0-6 | 0-6 | 0-6 |
| Feed Density | 0-50% | 0-50% | 0-50% | 0-50% |
| Recoil of Water (t/h) | 4-6 | 10-15 | 17-25 | 40-60 |
| Concentrate Production | 10-20 | 30-40 | 60-70 | 70-80 |
| (kg/time) | ||||
| Motor Power (kw) | 3 | 7.5 | 11 | 18.5 |
| Cone Rotational Speed | 600 | 460 | 400 | 360 |
| Water Pressure (MPa) | 0.1 | 0.16 | 0.18 | 0.2 |
| Overall Size (mm) | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
| Weight | 500kg | 1300kg | 1800kg | 2800kg |
Prduct display

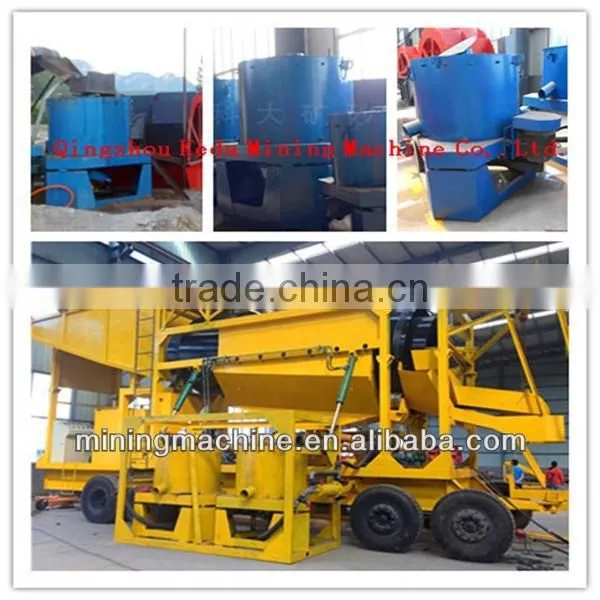

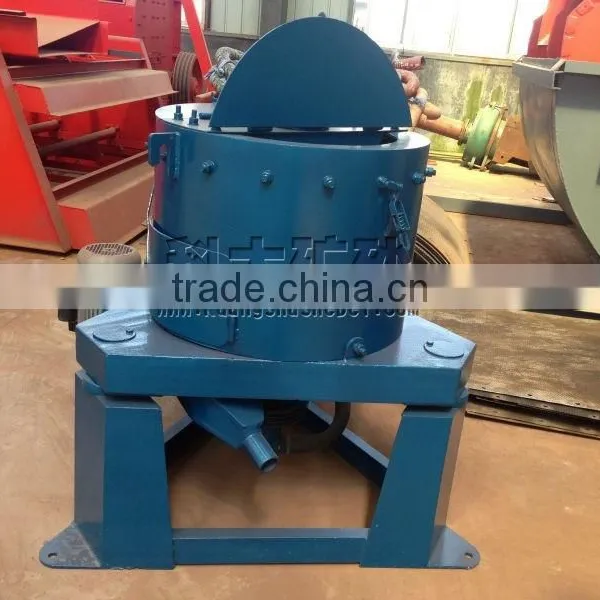

Gold Centrifugal Machine in our workshop

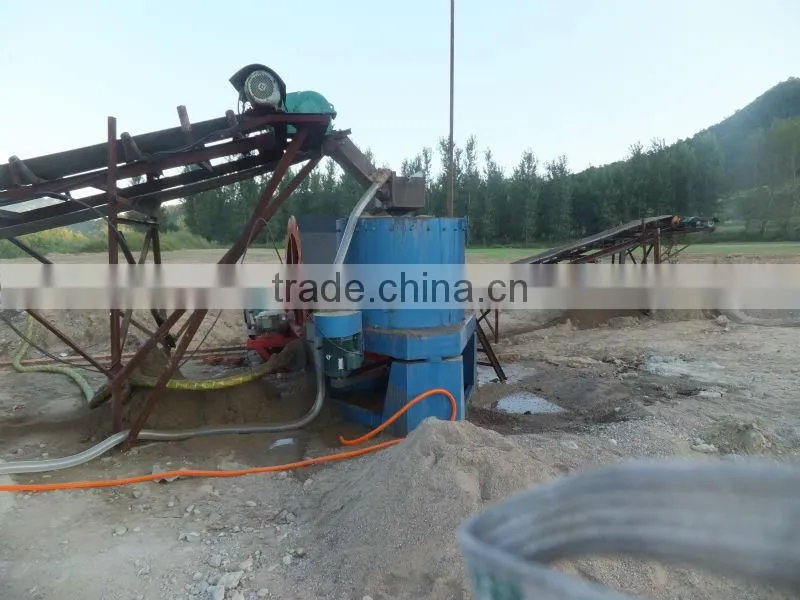

Gold Centrifugal Machine in work site
Qingzhou Keda ore machinery Co.,LTD. is a modern and formal ore machine manufacturer,which is professional at producing all kinds of mining equipment with ISO9001:2008. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
The company is established in 2002 primitively, covers an area of more about 20,000 square meters and equipped with modern type workshops and office . Nice product comes from excellent teamwork. Currently there are 120 stafves, including 2 senior engineers, 5 engineers, 15 technicians and 60 technical workers. Our company are more normative in management, our engineers are more professional in design and manufacture, our service are more comprehensive and thoughtful, and our price are more competitive with the best quality.
The main products of our company :
1 Gold wash plants series: the working capacity ranges from 5tons/h to 500tons/h, including wet gold wash plant used in place with water and dry gold washer used in place without water like in the desert. The gold wash plant has obtained PATENT both in utility and design. We are the ONLY manufacturer has this patent in China.
2 Dredgers series: dredgers for mining, sand production, reclamation construction, desilting, land reclamation and so on, including cutter suction dredger, jet suction dredger, bucket type dredger, aquatic weed harvester dredger, all kinds of gold dredgers.
3 Crusher series: including hammer crusher, impact crusher, Jaw crusher
There are so many customers from all over the world has visited our company and left with their ideal products. You are strongly invited to be here too, so you can learn more about our company and the product you need by your own sight.
1.Rational and practical design according to customers' request proved.
2.Within warranty period,we provide free repair if quality problems emerge.
3.We provide free training of operation and maintainance for customers.
4.Engerneers are avaliable to service oversea to assemble and test the machine according to the contract.
5.Free training of the first batch of operater proved, any question or problem about the products can be answered via online support,phone calls or on-sit support.
