Gold Centrifugal Concentrator for sale
1. Parameter:
Model | STL19 | STL30 | STL60 | STL80 | STL100 |
Capapcity T/H | 0.25-0.30 | 3-5 | 15-20 | 40-50 | 80-100 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Concentrate production (kg per time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Overall Size mm | 790 × 785 ×790 | 1150 × 1360 ×1250 | 1970 × 1670 ×1750 | 2300 × 1800 ×2200 | 2500 × 2000 ×2400 |
Weight | 300kg | 500kg | 1300kg | 1800kg | 2800 |
2.Features:
1)Gold concentrator is a kind of centrifugal separation equipment. It is suitable for
the recycle of alluvial gold, placer gold and polymetallic ore’s gold recycling. Instead of mercury board operations, it’s the ideal choice for gold mining in land or river.
2)The beneficiation test certificate that placer gold recovery rate maximum can
reach 96%.
3)Rock gold ore period is 1 to 4 hours. Alluvial gold is 4 to 8 hours. Enrichment
ratio can reach 500-1000 times.

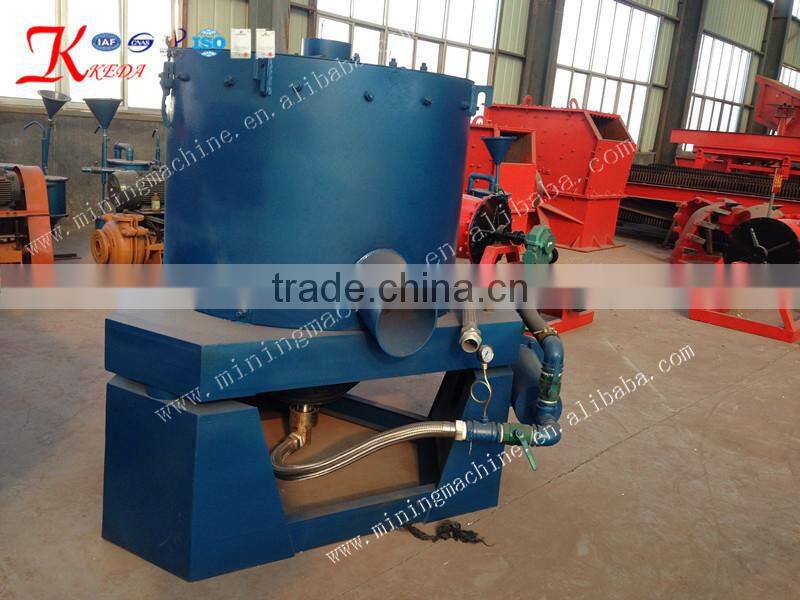

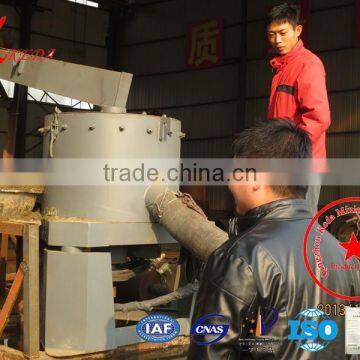

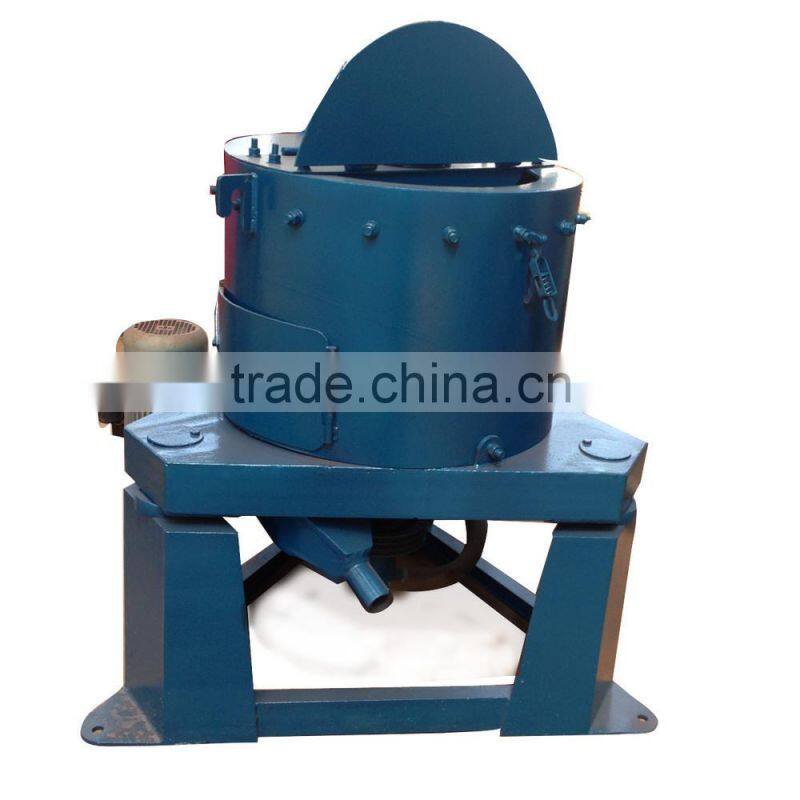

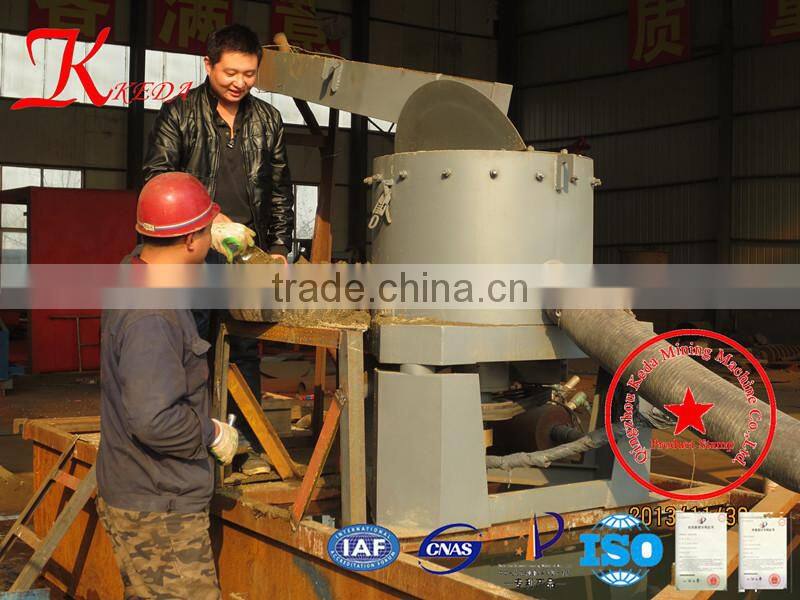

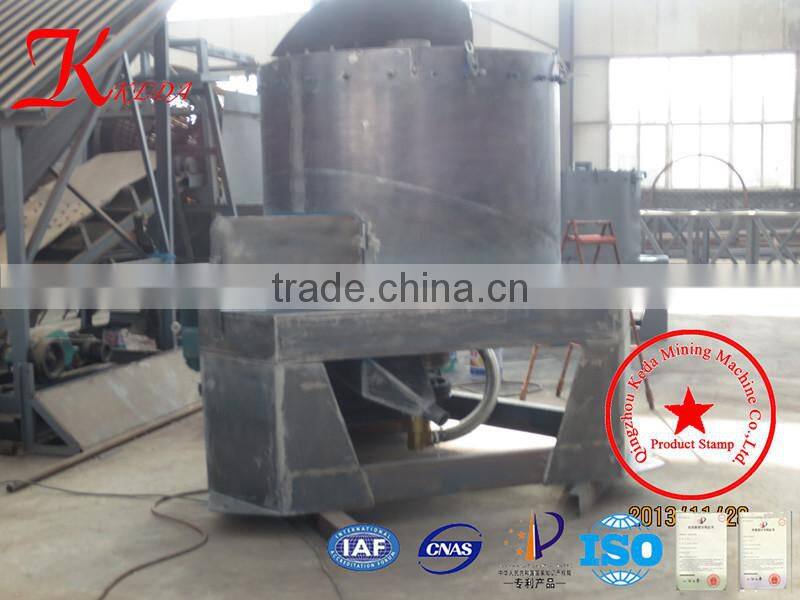

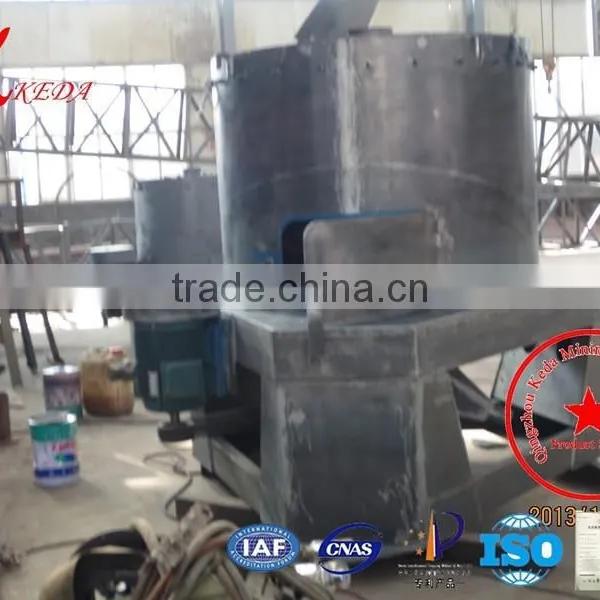

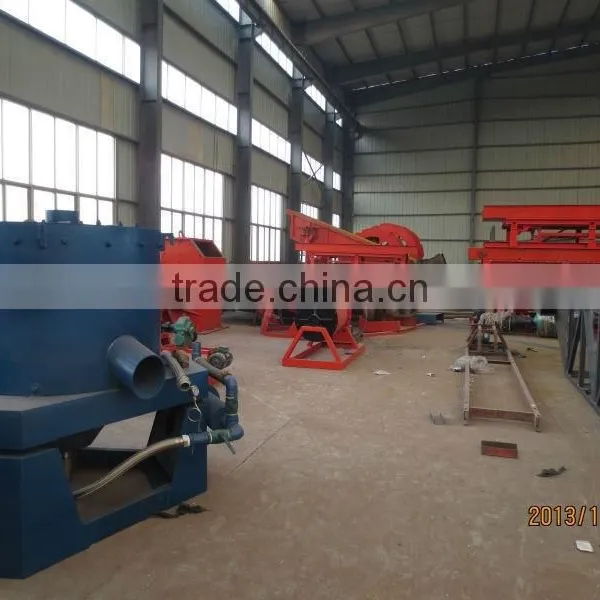

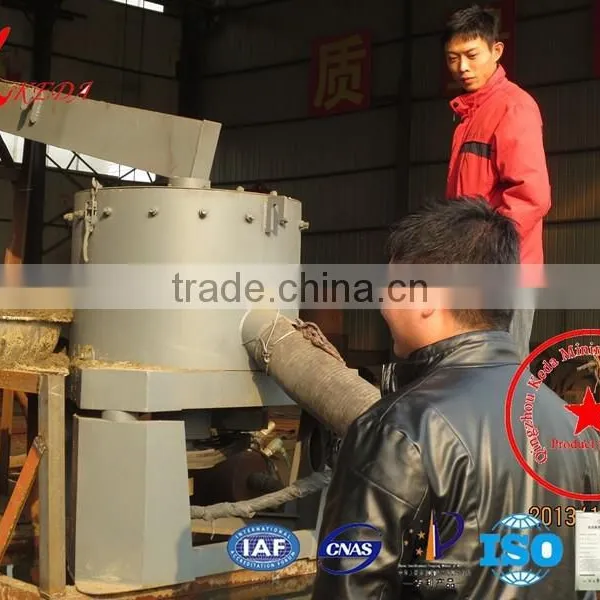

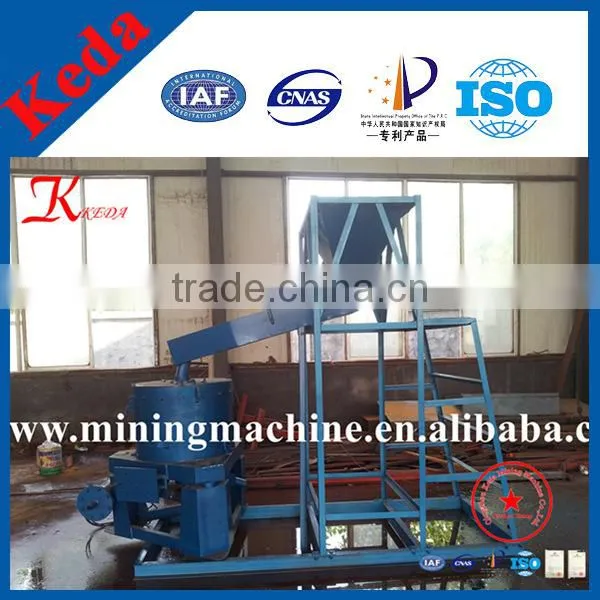

3.Details about the product:

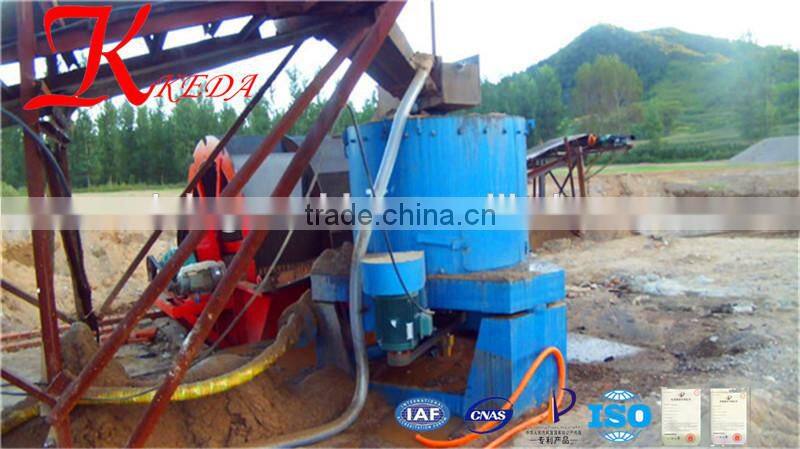

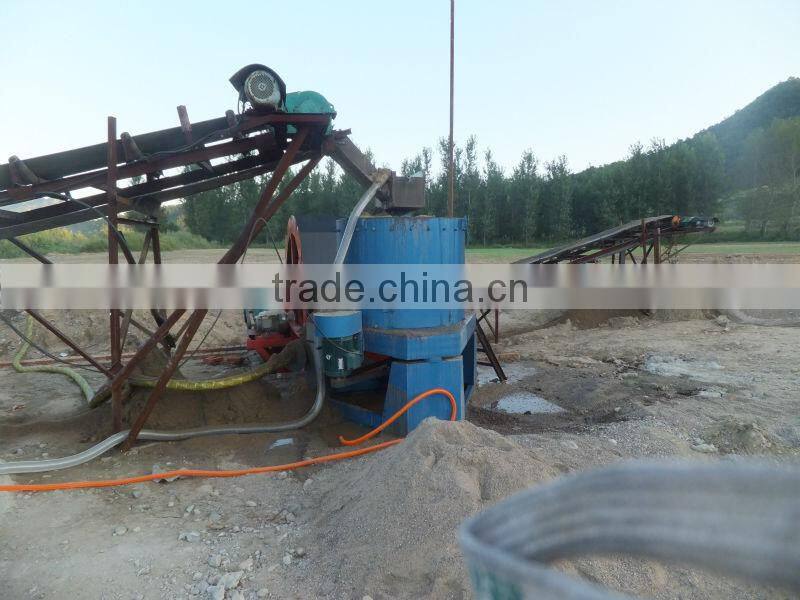

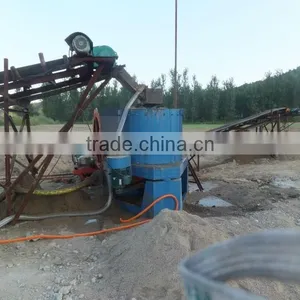

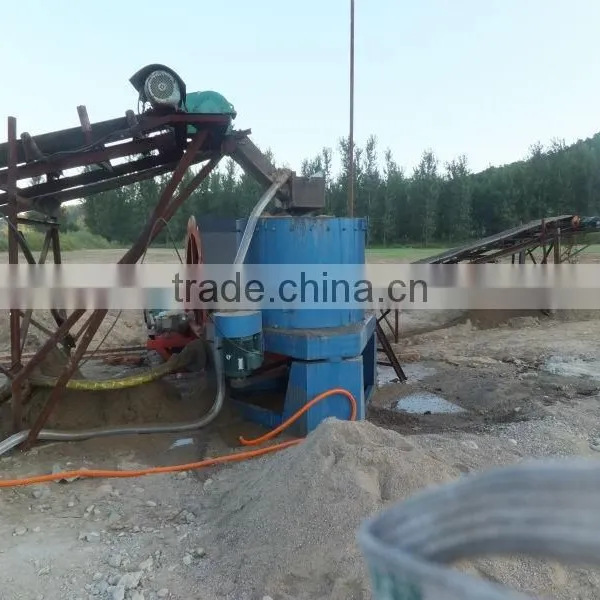

4.The mechine is the worksite:

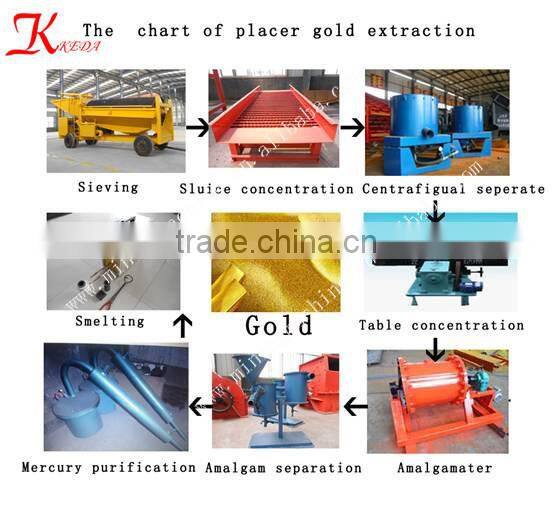

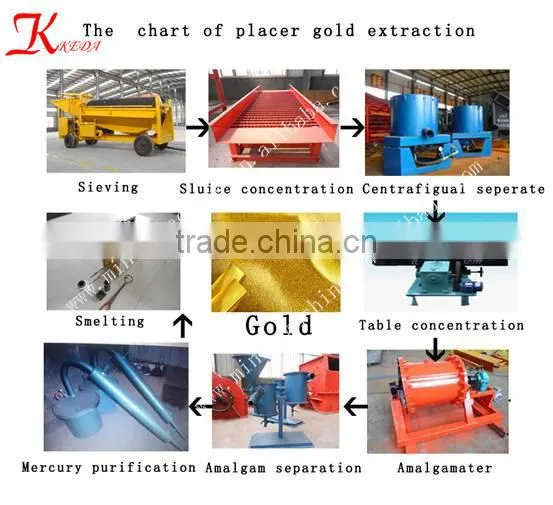

5.Product in Gold Mining Procedure:
Our company,Qingzhou Keda Mining Machine Co.Ltd. I s a professional gold mining machine manufacturer.
Our company pay attention to the development of scientific research strength and take the lead through the ISO9001 quality system certification.The professional and technical personnel can develop a feasible solution according to the customer ’ s technical requirement and working site.
Companies adhering to the: honesty, customer supreme service idea. To create the first-class quality, first-class service enterprise target. Strives for the survival by the quality, credibility and development of the enterprise tenet. For our customers to provide quality products and perfect service.
Welcome to our company to visit and cooperation.
1)After sales technical support,machine installation,spare part service,anticipated training
for our customers are provided by our specialist engineers and technicians.
2)Our technical service department is ready to serve and reslove your questions via online support,phone calls or on-sit support.
3)We reckon service insight to increase the levels of challenge with our specialized technical staff.Genial customer relations,technical facilities for intact spare parts deliverised with
spare part labor warranty,affordable spare parts and on site service are just a few examples
of our professinal custoemer approach.
T he best quality, excellent service, good credit, competitive price, the abundant strength , what made us confidence with your satisfaction.
Welcome to visit our factory anytime, and if you have any question, please fell free to contract me, I will do my best to help you.
