Specifications
Gold Separator Machine1.Product Capacity>95%
2.High separation result
3.Fast delivery
4.ISO9001
Mobile Gold Separator Machine for sale
1.Feature
a. Placer gold recovery rate can reach more than 95% .
b. Equipment including host and electric cabinet water filter .
c.Easy to control.
2. Technical Parameters
Model | STL19 | STL30 | STL60 | STL80 | STL100 |
Capapcity T/H | 0.25-0.30 | 3-5 | 15-20 | 40-50 | 80-120 |
Feed particles mm | 0-3 | 0-4 | 0-6 | 0-6 | 0-6 |
Feed density % | 0-50% | 0-50% | 0-50% | 0-50% | 0-50% |
Recoil of water T/H | 1.5-2 | 4-6 | 10-15 | 17-25 | 40-60 |
Concentrate production (kg per time) | 2-3 | 10-20 | 30-40 | 60-70 | 70-80 |
Motor Power kw | 0.75 | 3 | 7.5 | 11 | 18.5 |
Cone rotational speed | 800 | 600 | 460 | 400 | 360 |
Water Pressure MPa | 0.04 | 0.1 | 0.16 | 0.18 | 0.2 |
Dimensions mm | 790×785×790 | 1150×1360×1250 | 1970×1670×1750 | 2300×1800×2200 | 2500×2000×2400 |
Weight kg | 300 | 500 | 1300 | 1800 | 2800 |
3.Product Show

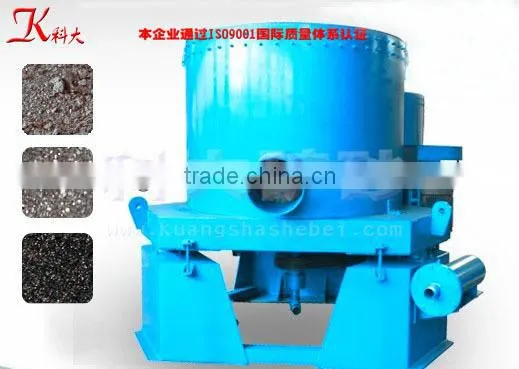

KDTJ type centrifugal separator is a kind of centrifugal separation equipment, it is gold, sand MaiJin monomer gold in the mine and a variety of other metal recycling.
Centrifugal separator is a important part for the gold mining machine

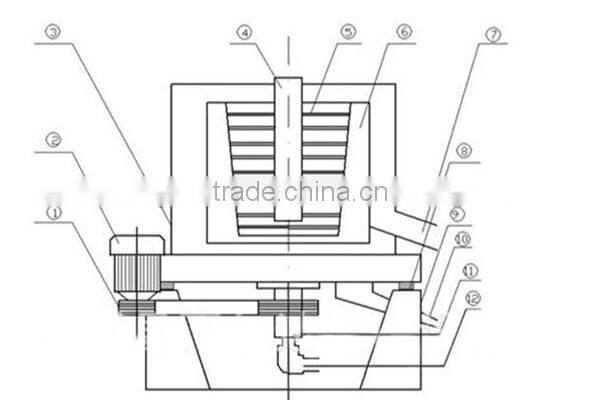

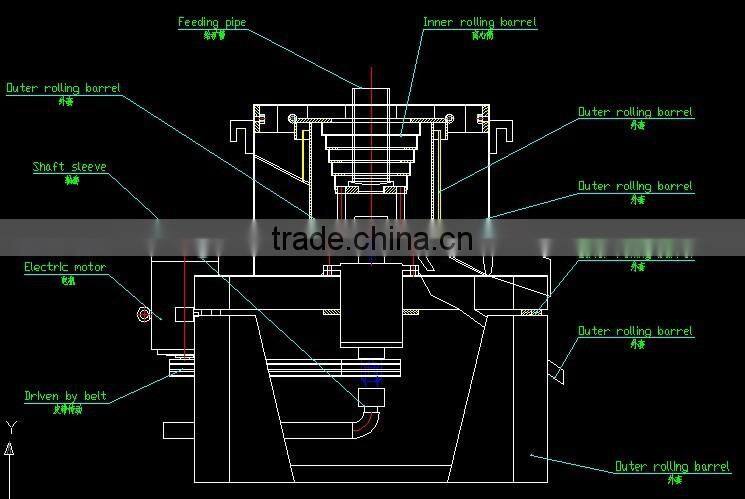

Drawing
The equipment by the electric motor(2), through the belt transmission (1) drive shaft (11), made the inner sleeve (5) at high speed. Pulp by the feed tube (4), give inner sleeve (5), pulp under the action of centrifugal force field, the sorting process intensification. Heavy mineral stay, (5) in the cell,light minerals by tailing discharge chute (7). After each class working, the concentrate willexpel from row ore mouth after downtime (10).
4.Our Company
Qingzhou Keda Mining Machine Co., Ltd. ---- Shandong Magnetic Equipment Research Institution, is a modern formal company of the shareholders re-registration. It mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products. And we design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
Our customer visit to our company
