Specifications
Hot Sale Industrial Sand Washing Plant1 Durability and no pollution
2 Easy to maintain
3 Manufacturer
4 ISO 9001
Hot Sale Industrial Sand Washing Plant
1.sand washing plant Feature:
- Brand-name Parts
- Country of Origin
- Distributorships Offered
- Green Product
- Guarantee/Warranty
- Packaging
- Price
- Product Features
- Prompt Delivery
- Quality Approval
- Service
- Small Orders Accepted
2.sand washing plant Basic Parameter:
| Type | KDSSJ15-28 | KDSSJ18-30 |
| Dimension(L*W*H) | 3600x2800x2900 | 3800x3100x3100 |
| Water wheel dimension | φ2800x1500double | φ3000x1800triplex |
| Material | 8mm | 10mm |
| Feeding hopper dimension | 3600x1600 | 3800x1900 |
| Material | 4mm | 5mm |
| Working capacity m³/h | 80-100 | 120-150 |
| Max.approval grain size(mm) | ≤12 | ≤12 |
| Main Power(kw) | 11kw-4 | 15kw-4 |
| Submersible pump | ||
| Power | 7.5kw | 7.5kw |
| Clean Water Flow m³/h | 65 | 65 |
| Conveyor | ||
| Length mm | 10000 | 10000 |
| Belt width mm | 800 | 1000 |
| Frame material | 12#channel steel | 12#channel steel |
| Electromotor kw | 7.5 | 11 |
3.Our sand washing plant
1)The sand made by the sand making machine contains impurities and stone powder.
2)The sand washing machine was therefore developed to carry out the task of eliminating the impurities. The sand washer, which is driven by a generator, drives the impeller to continuously move within the water groove in a circular motion.
3)This mixes the sand or slag pellets, cleans and discharges them after hydration.

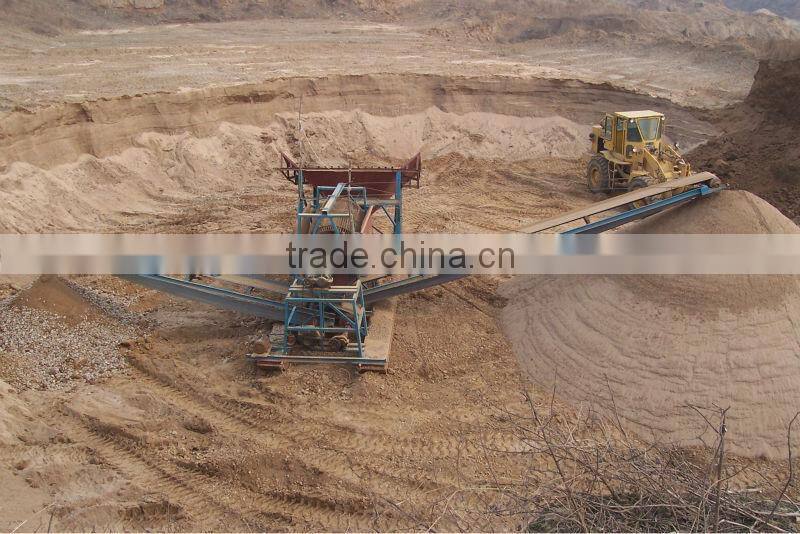

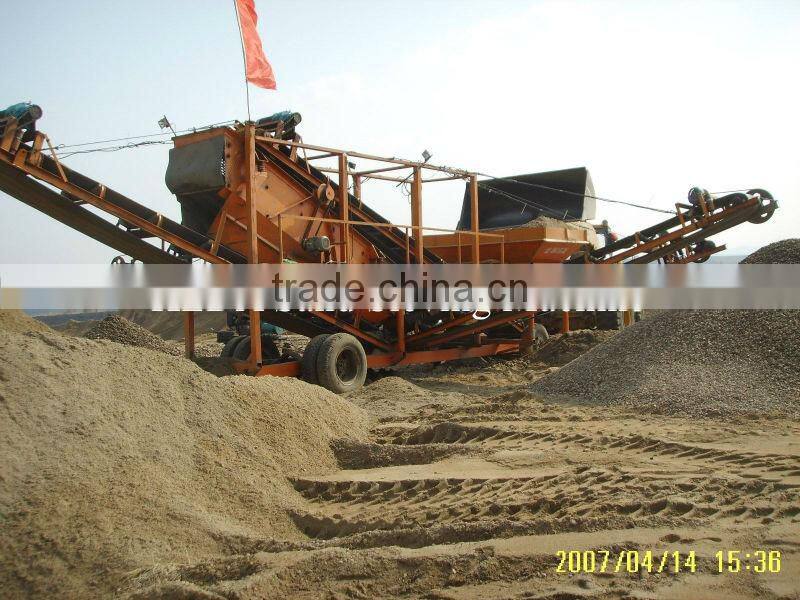

sand washing plant Working site
6.About our company
1)Qingzhou Keda Mining Machine Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.
2)we design produce various of products according to the customers requirement and geographical condition. It is a modern large-scale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3)We have CAD Aided Design R & D center and physical mineral processing laboratory,can work out reasonable and practical solution according to customer's technical requirements and work site,also had established and improve the equipment file and service system, concentrating on customer feedback to make the products constantly improved to meet the customers' different needs.
Customer vising our company

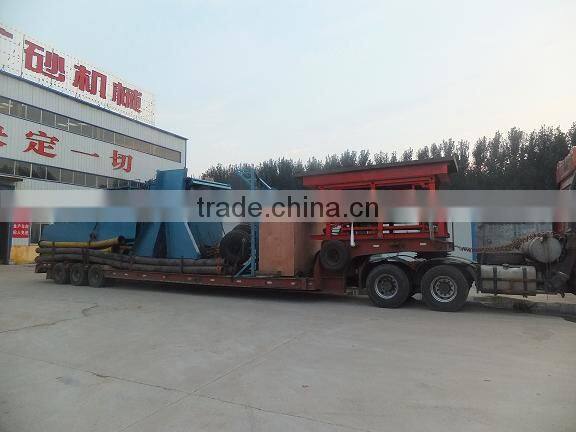

Delivery before shipping
