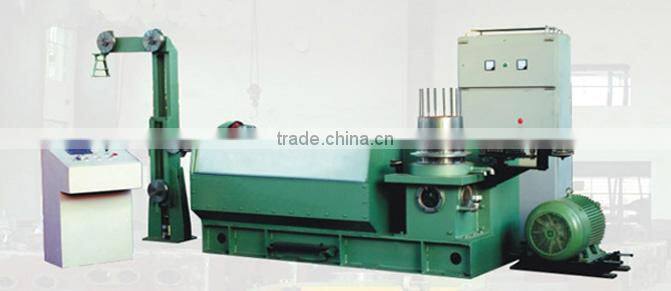

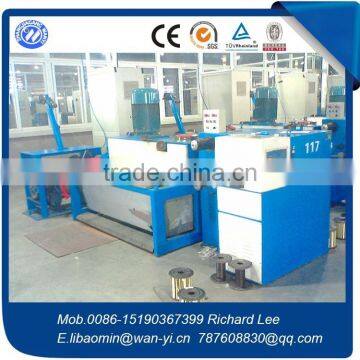

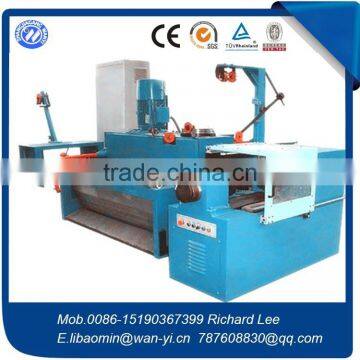

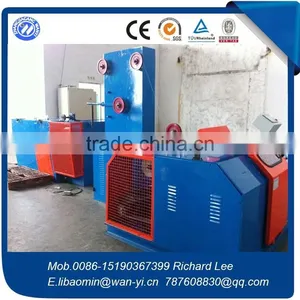

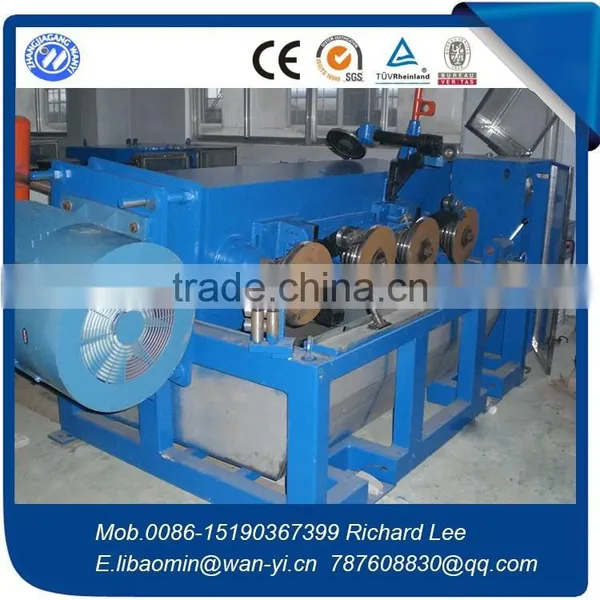

Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Drawing Machinery > Low Carbon High Speed Wire Drawing Machine
US$ 13,000 - 23,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
2.5
Outlet Diameter:
0.4
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or your need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Water Tank Wire Drawing MachineUS$ 12,000 - 20,000MOQ: 1 Set -
Fine Wire Wet Drawing MachineUS$ 15,000 - 23,000MOQ: 1 Set
-
Wet Type Steel Wire Drawing MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
Water Tank Drawing MachineUS$ 15,000 - 60,000MOQ: 1 Set
-
Tire Wire Drawing MachineUS$ 12,000 - 20,000MOQ: 1 Set
Condition
New
Inlet Diameter
2.5
Outlet Diameter
0.4
Place of Origin
Jiangsu, China
Brand Name
Wanyi
Model Number
LT16-21-275
Voltage
380v
Power(W)
7.5-45KW
Dimension(L*W*H)
1700*1450*1650mm
Weight
3000KG
Certification
CE or your needs
Warranty
one year freely
After-sales Service Provided
Overseas service center available
First technical parameter
1, Material rod low and high carbon wire,copper wire,al wire
2, Inlet diameter φ1.6—φ1.8
3, Outlet diameter φ0.4—φ0.6
4, Wire tensile ≤600MPa
5, Speed 8-14m/s
6, Block number 17
7, Length recond error ≤1‰
8, noise 80dB
9, Total reduction 93 percent
10,main motor 22KW
11,spool take as the buyer offer
12,constant tensile take up,usually 20-50N adjustable.
