US$ 10,000 - 25,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Water Tank Drawing MachineUS$ 15,000 - 60,000MOQ: 1 Set -
Tire Wire Drawing MachineUS$ 12,000 - 20,000MOQ: 1 Set
-
Water Tank Drawing MachineUS$ 12,000 - 25,000MOQ: 1 Set
-
Water Tank Wire Drawing MachineUS$ 10,000 - 25,000MOQ: 1 Set
-
Expensive Alloy Wire Drawing MachineUS$ 12,000 - 30,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LT
Voltage
380V
Power(W)
25kw
Dimension(L*W*H)
1.8x1.6x1.4m
Weight
2300kg
Certification
THIRD PARTS
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas

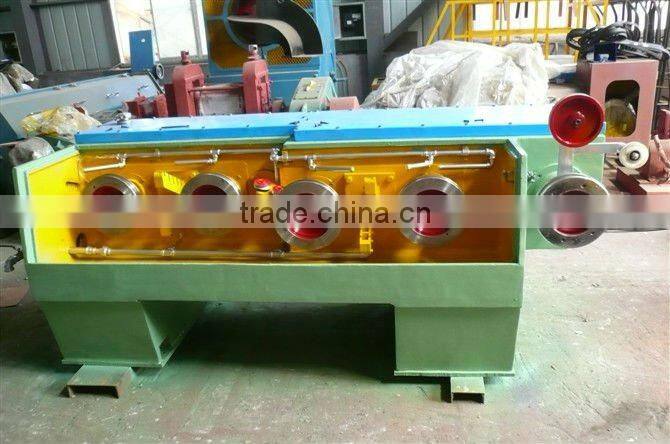

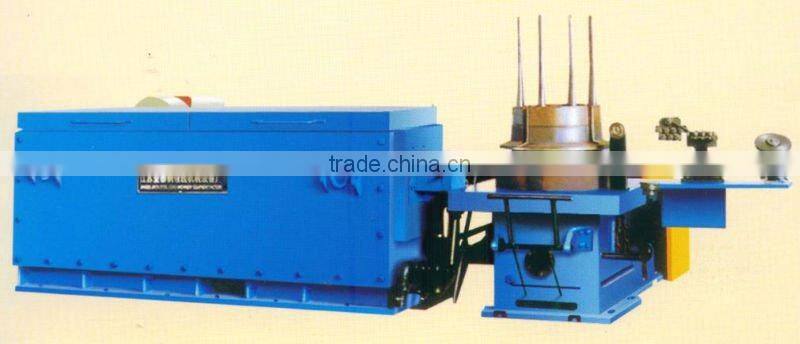

wet wire drawing machine
equipment
(1) spool(bibbon) pay-off stand
(2) LT13/350 drawing machine
(3) Tensile rack device
(4) 630mm spool take-up machines
(5) complete electrical control cabinet
2, main technical parameters and points:
(1) max inlet strength: 450Mpa or less(low carbon wire) ,Al wire,copper wire and so on
(2) max inlet diameter: 2.6 mm
(3) minimum inlet 0.8 mm
(4) largest compression ratio: 88%
(5)drawing the highest speed 12m/s normal use: 10m/s
(6) water and water pressure: 3m3 /h, water pressure 0.2 Mpa or more
(7)air and pneumatic: 1.0 m3/h air pressure 0.6Mpa or more
(8)motor: drawing machine and adopts 22KW frequency 50HZ ac frequency conversion motor,take up machine is 11KW

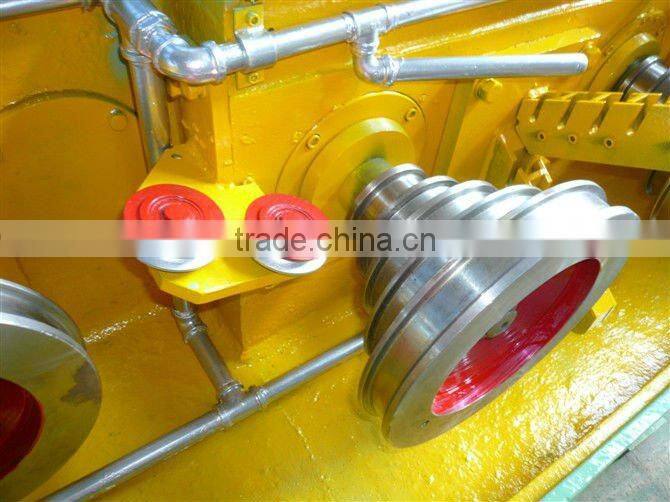

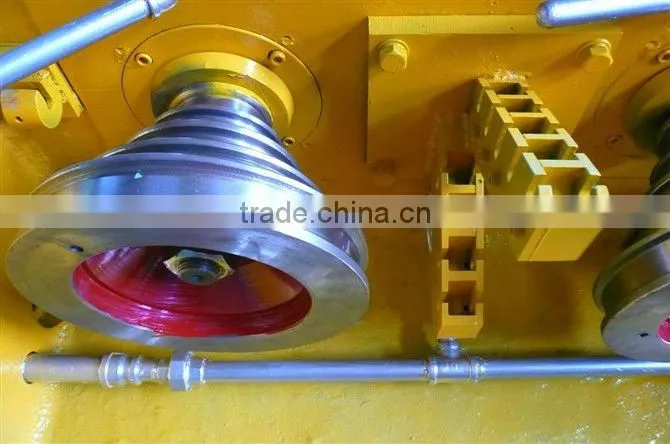

(9)block(drum)
1the biggest diameter 350mm.....
