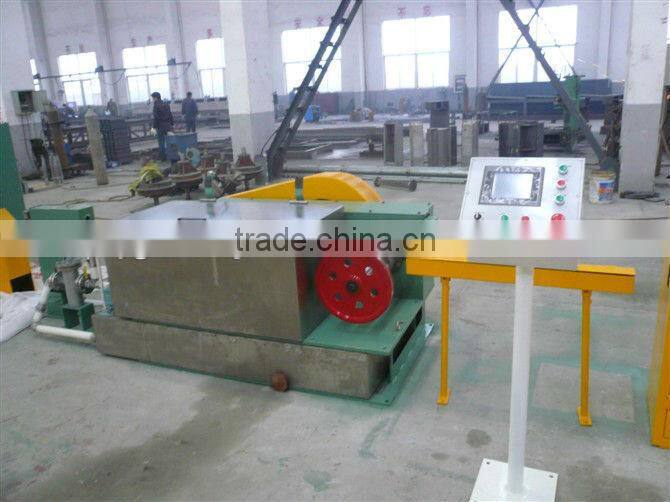

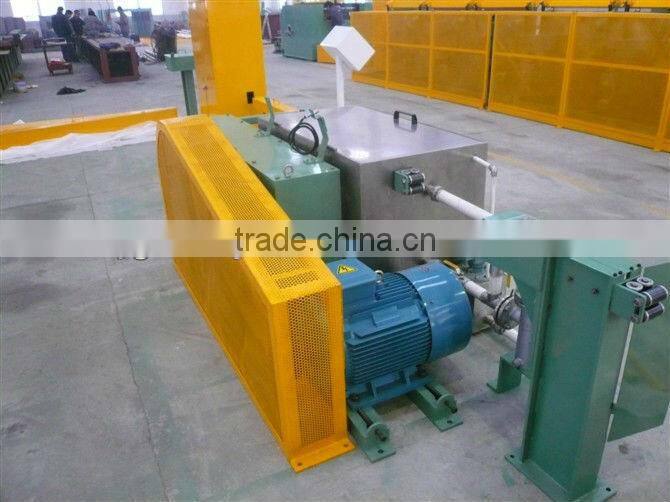

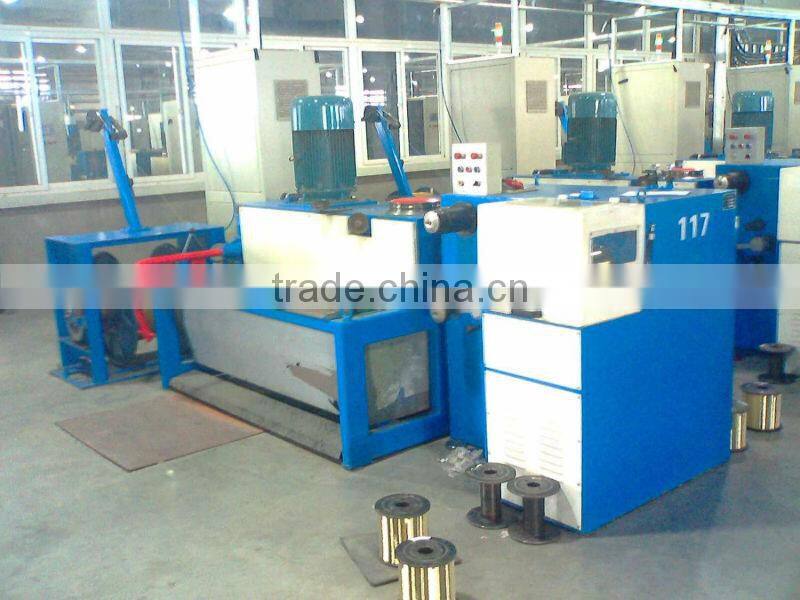

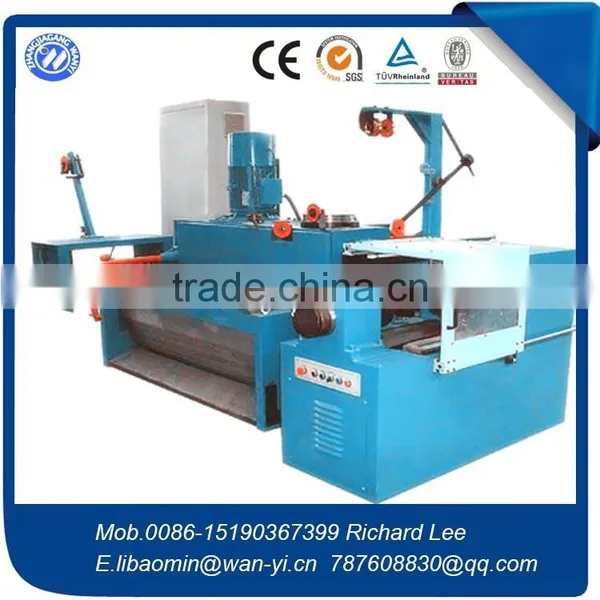

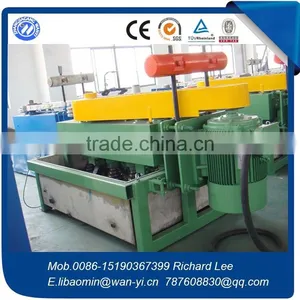

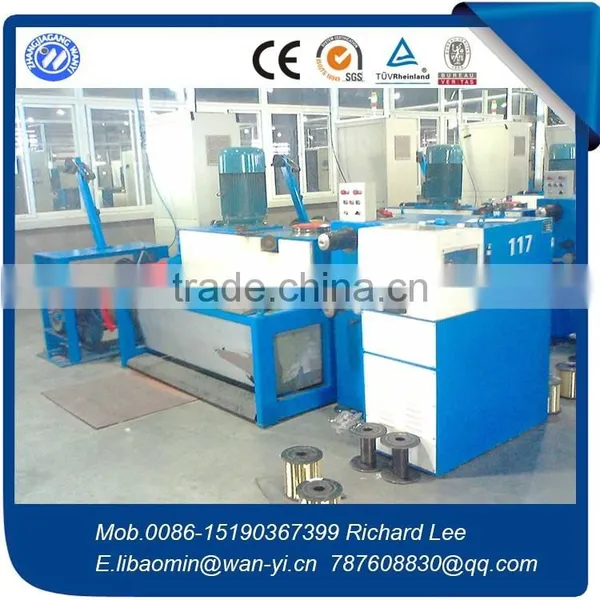

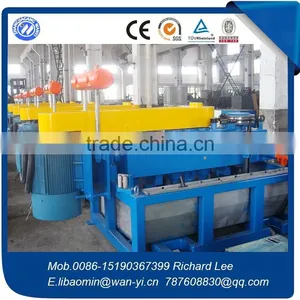

WET DRAWING MACHINE LT13/350
No | Item | Composition and technical details |
1 | Equipment name | LT13/350 wet wire drawing machine |
2 | Equipment composing | 1. FX1250 active pay-off 2. LZ13/350 wet wire drawing machines 3. take-up 4. electrical control cabinet |
3 | Working range | 1. inlet: dia 2.7mm 2. outlet: 1.05mm 3. material: aluminum and copper wire,CO2 wire,low h-carbon wire |
4 | wire drawing speed | Designed speed:10m/s, working speed:5-9m/s |
5 | motor | 1. main machine: 22kw frequency control AC motor 2. take-up: 22kw frequency control AC motor 3. pay-off 18.5KW frequency control AC motor |
6 | transmission | narrow v-belt |
7 | Tower wheel | 1. tower wheel in group of single and multichip 2. carbide tungsten alloy spray 3. face hardness:HRC60or more 4. face roughness: 0.8 |
8 | Cooling | 1. wire cooling: immerged 2. lubricant cooling: self-circulation cooling |
9 | Break type | 1. with slow start button, 2. emergency stop button and start stop button 3. wire take-up has pneumatic tip-up device 4. start and brake device |
10 | control | 1. ABB frequency controller 2. SIEMENS PLC control 3. pre-set length function 4. wire break protection function 5. tension automatic following and adjusting |
11 | Take-up | 1. h-wheel size 1250mm 2. use pneumatic tip-up device, 3 polish rod winding displacement 4. rod array pitch is adjustable 5. frequency conversion contro |
