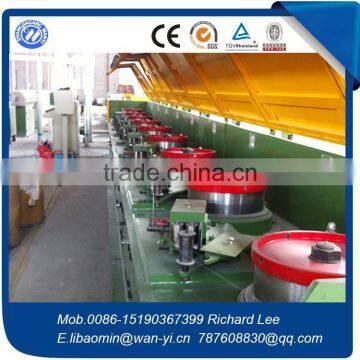

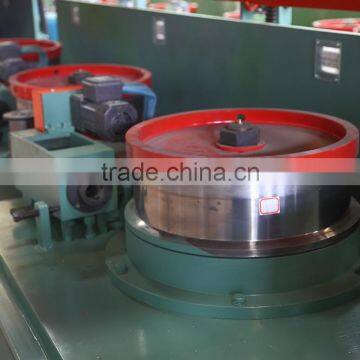

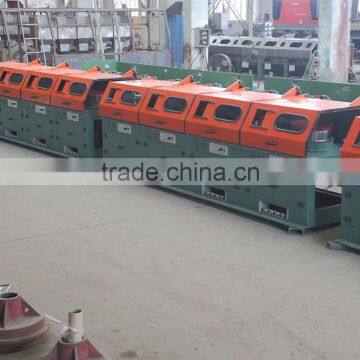

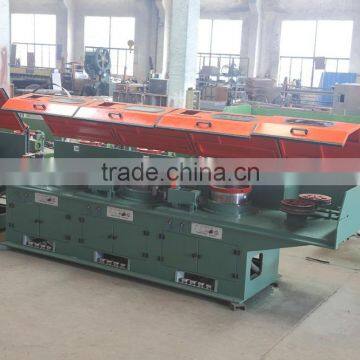

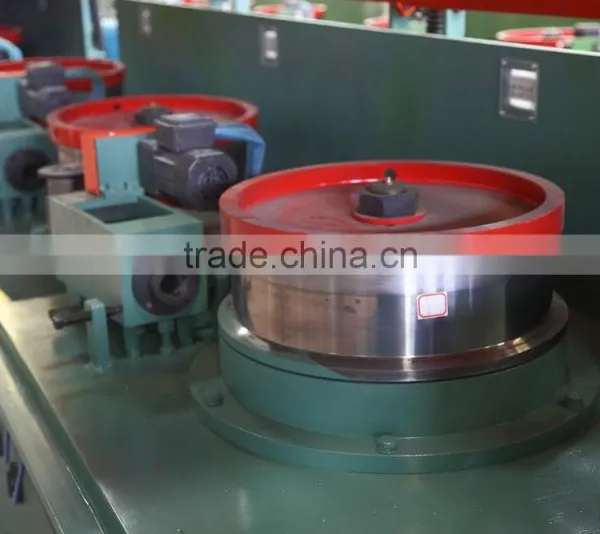

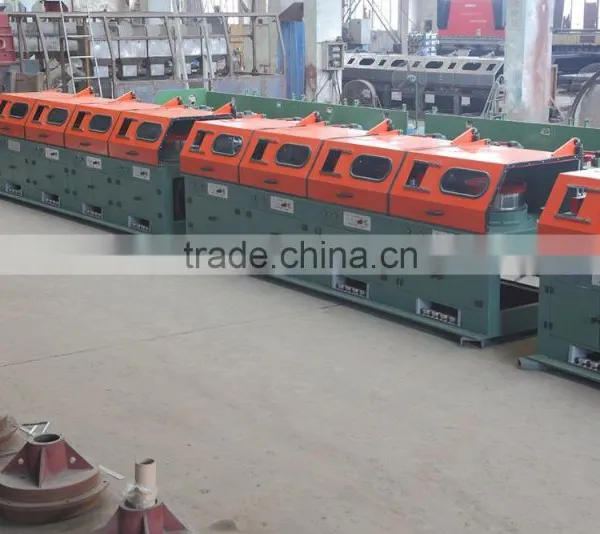

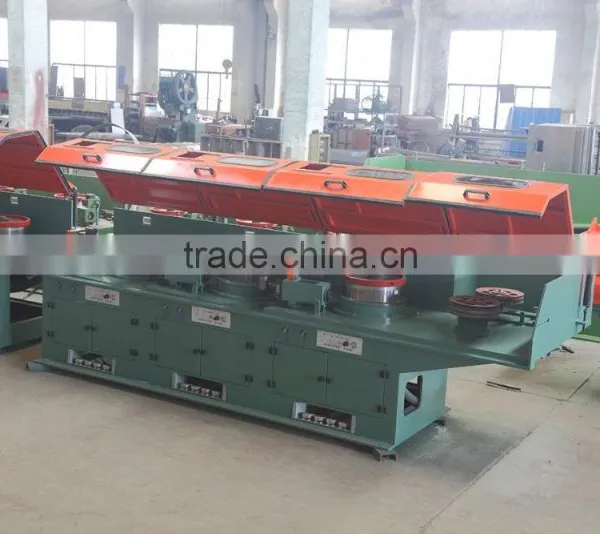

Help CenterLZ600 Straight Line Wire Drawing Machine of High Technology
Related Products
Reliability 2.Energy saving3.Safety 4.Convenient5.Low noise 6.High efficiency7.Environmental protection
Straight feeding wire drawing machine technical parameter Sr. Name Unit Data
1 Drawing machine name LZ13/560
2 Drawing machine and pull mode Straight line tuning type
3 Draft number 13 4 Coil diameter mm Φ560 5 Speed adjustable mode AC freq. Con. Speed Adjustable 6 Motor power KW 8X37+5×30+1X22 7 Wire-in diameter mm Max Φ7.0 8 End product diameter mm Min Φ1.5 9 Average compression % ≤21.1% 10 Design drawing speed m/s max16(light load high speed, heavy load low speed) 11 Control mode Fully digital 12 Logical control PLC 13 Wire-in strength MPa ≤1250 14 Carbon content in material high and low carbon steel wire 15 Drum cooling Self contaminant release narrow seam type water cooling + outer ring type fan cooling. 16 Die box Direct water cooling 17 Cooling water pressure 0.2~0.3Mpa 18 Pneumatic system Air pressure≥0.5Mpa 19 Stop time S Normal stop≤50s,EMG stop≤5s 20 Pay-off mode Duck bill type pay-off machine 21 Take-in mode I-type take-in coil 22 Total length of production line M About 30M Model No of drafts Max.inlet wire(mm) Min.outlet wire(mm) Motor power (KW) Production speed(M/S) LZ300 8-12 2.5 0.4 3-4.5 25 LZ350 8-12 3.5 0.6 5.5-11 25 LZ400 8-12 4.2 0.75 7.5-15 25 LZ450 8-12 4.5 0.96 15-22 218 LZ600 6-8 6.5 1.4 22-37 16
