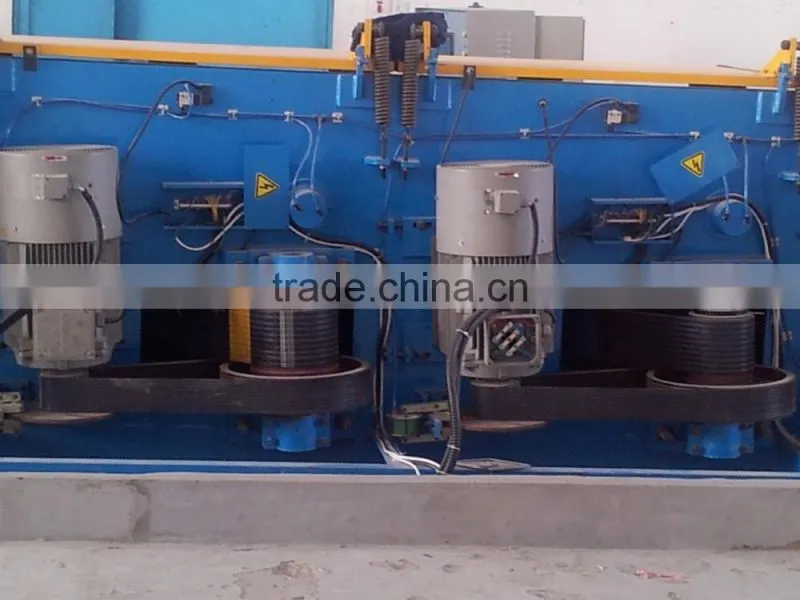

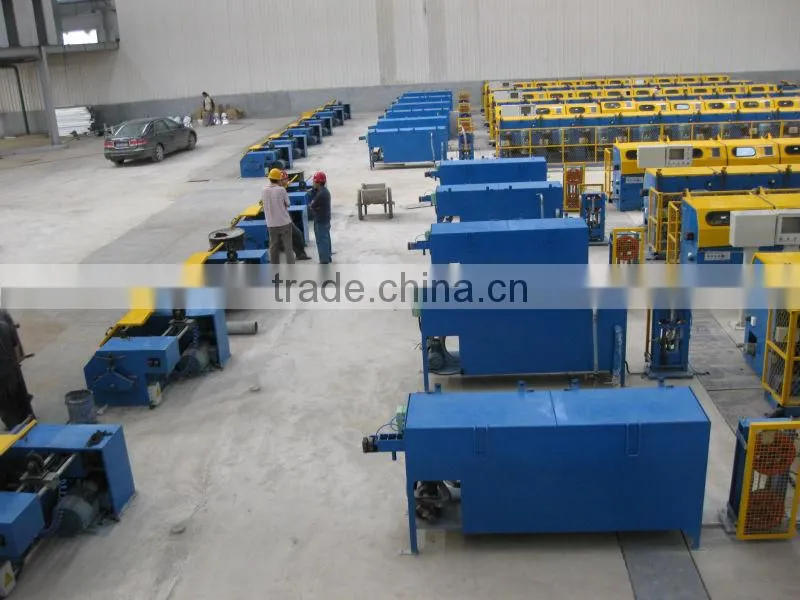

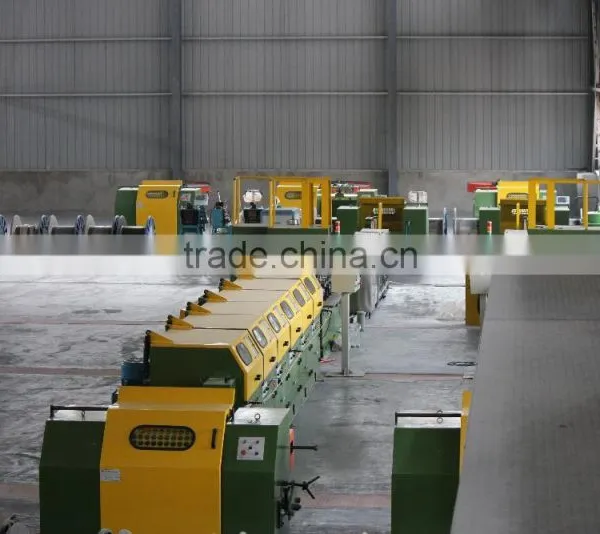

TIG Welding Wire Drawing Machine
US$ 20,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wire Drawing Machine
Use:
Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hose Wire Drawing MachineUS$ 23,000 - 50,000MOQ: 1 Set -
Wire Descaler MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
MS Wire Drawing Machine LZ7-600+LZ10-400US$ 30,000 - 96,000MOQ: 1 Set
-
LZ600 Straight Line Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set
-
Straight Line Wire Drawing MachineUS$ 50,000 - 150,000MOQ: 1 Set
Condition
New
Type
Wire Drawing Machine
Use
Wire
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ7-600
Voltage
380v
Power(W)
7.5-90KW
Dimension(L*W*H)
8000X1500X1600mm
Weight
8500kg
Certification
CE or SGS third parts
Warranty
one year freely
After-sales Service Provided
Overseas service center available
Equipment composition:
2.21 LZ7/600 Straight wire drawing machine
2.22 diameter 800mm spool take-up machine
2.23 Control of man-machine interface touch screen
2.24 set of electrical control cabinet
2.3 The main technical parameters and key points:
(1) into the line of maximum intensity: <600 MPa
(2) Max diameter: diameter 5.5mm or diameter 6.5mm
(3) into the line of minimum diameter: diameter 2.2mm or diameter 2.35mm
(4) the maximum compression rate: 84%
(5) The maximum drawing speed: 14 m / s normal drawing speed: 10 m / s
(6) water and pressure: 5m3 / h Pressure ≥ 0.25MPa
(7) gas consumption and pressure: 1.0m3 / h Pressure ≥ 0.6MPa
