Help CenterNail Wire Drawing Machine
Related Products

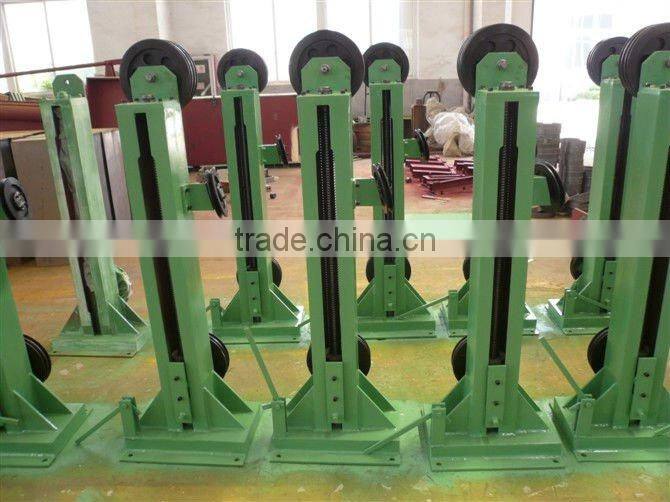

1.Equipment constituter(1) pretreatment work line up-draft pay-off rack + Shucking-brush derusting machine+boron coating+ tube type dryer
speed of treating line ≤2.5M/S

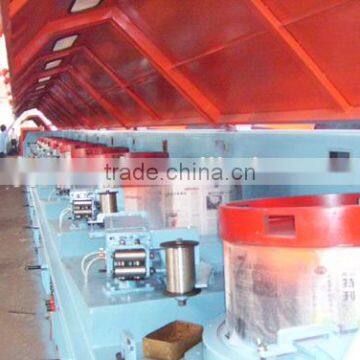

(2)LZ7/600 straight line drawing machine

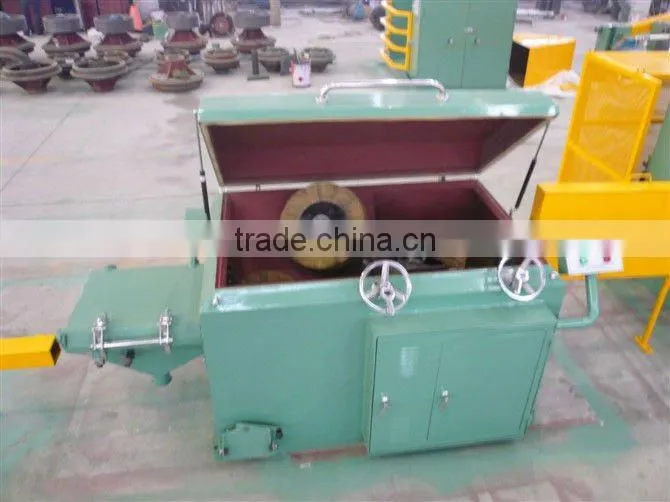

(3)600 trunk type take up machine
(4 ) human machine interface display screen

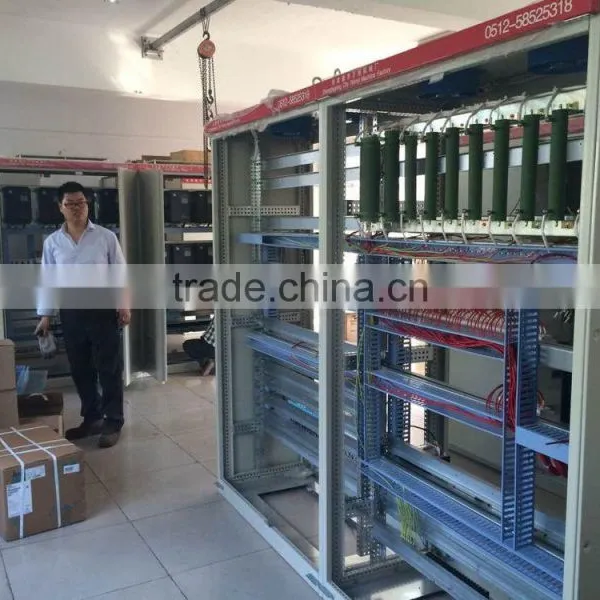

(5) Whole set of electrical appliance control cabinet
2. Work areas: (1) input diameter 6.0 or 5.5 mm
(2)input strength 500Mpa
(3) input material low-carbon wire and so on

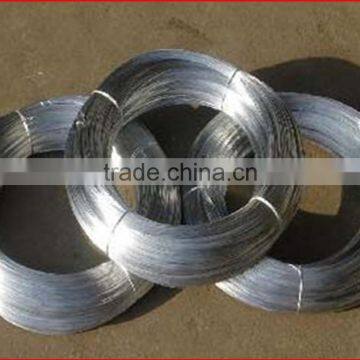

(4) output diameter 2.0--2.4mm.
3. Drawing speed (1) max 10m/s (2) average 8m/s with output 8.5t/d (10h per day)
4. Water- air pressure (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa
5. Electric motor standard (1)drawing machine 22KW AC motor
(2) wire coiling machine 15KW AC motor
6. Reel form(1) diameter 600mm
(2) Material ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra
