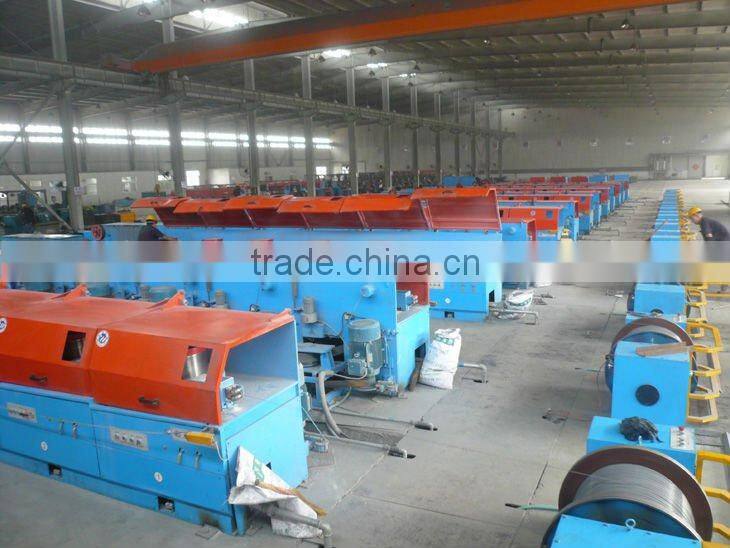

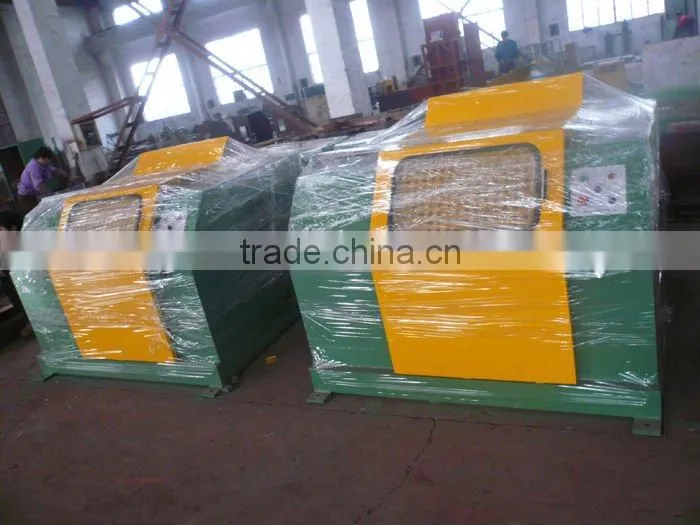

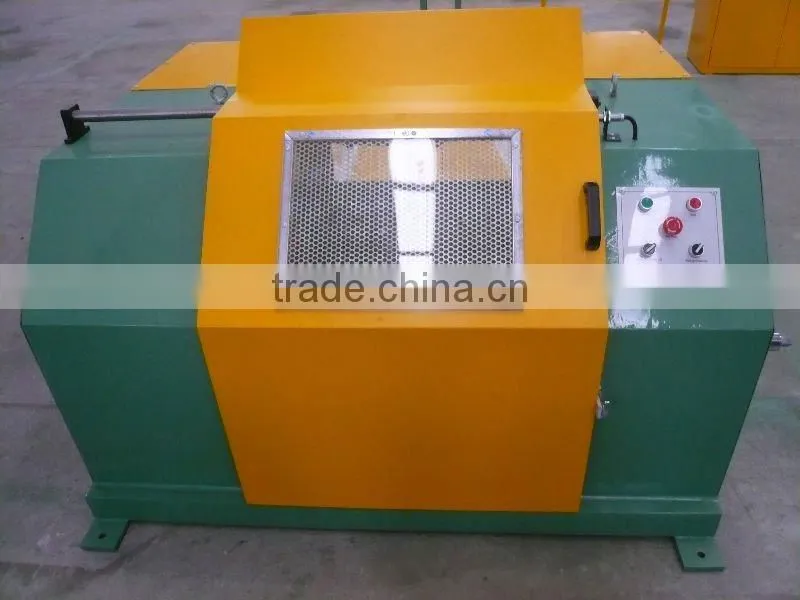

Help CenterFine Wire Drawing Machine
Related Products
-
Middle Carbon Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set -
TIG Welding Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Hose Wire Drawing MachineUS$ 23,000 - 50,000MOQ: 1 Set
-
Wire Descaler MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
MS Wire Drawing Machine LZ7-600+LZ10-400US$ 30,000 - 96,000MOQ: 1 Set

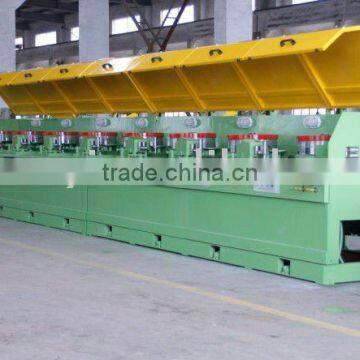

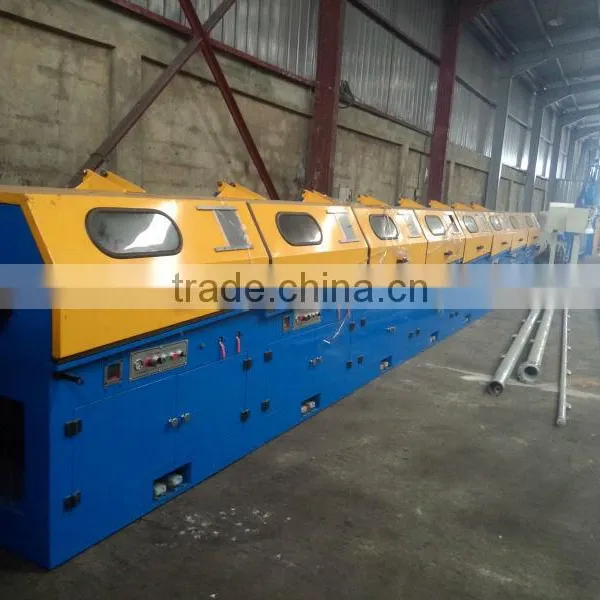

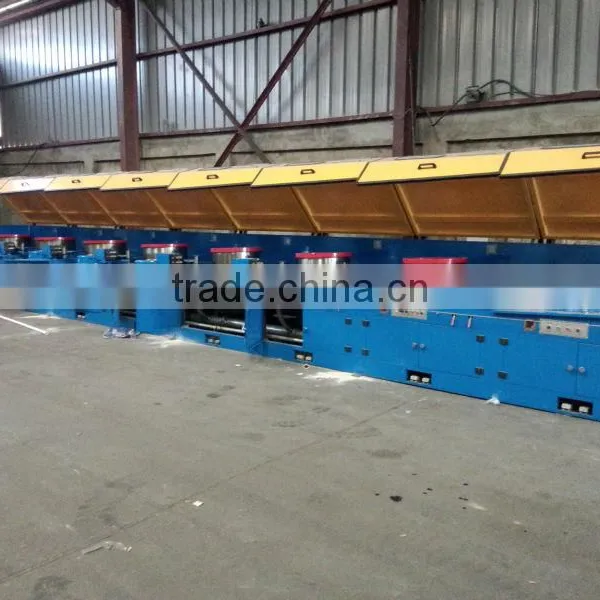

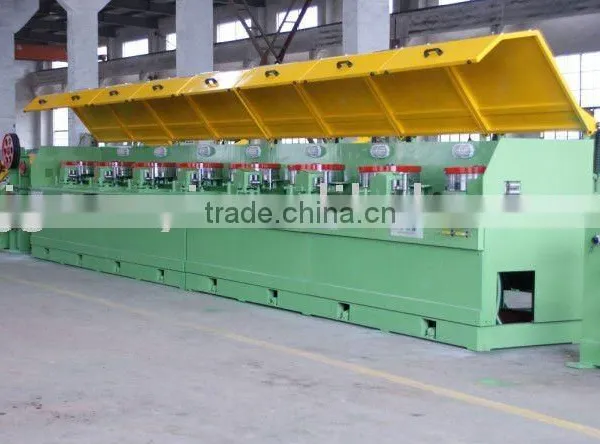

STRAIGHT LINE DRAWING MACHINE LZ8/400
No | Item | Composition and technical details |
1 | Equipment name | LZ8/400 wire drawing line |
2 | Equipment composing | 1. FX1250 h-wheel pay-off 2. LZ8/400 straight line drawing machine 3. SG1250 h-wheel take-up 4. man-machine interface operation panel 5. electric control cabinet |
|
|
|
3 | Working range | 1. inlet: dia max 3.0mm 2. material: al welding wire,copper wire,CO2 wire,flux-cored wire.carbon wire 3.wire strength: 200Mpa 4.outlet size: 1.05mm |
4 | Wire drawing speed | Design speed 16m/s, working speed 10m/s |
5 | Water/air pressure | Water pressure≥2MPA Air pressure≥6MPA |
6 | motors | 1. Pay-off 18.5KW, AC frequency control motors 1st-8th blocks: 5.5kw, AC frequency control motors 2. H-Wheel take-up:22kw,AC frequency control motors |

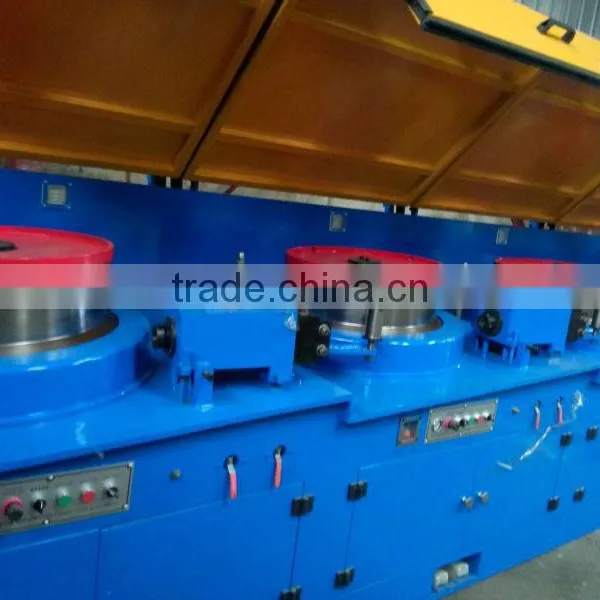

7 | block | 1. block size: 400mm 2. block material is ZG45 steel with WC spraying, hardness is HRC60 |
8 | cooling | 1. Inside uses narrow slot water cooling 2. outside uses narrow slot wind cooling |
9 | stand | 1. stand is steel welded structure 2. with water, electricity and air control button and emergency stop device |
10 | Tune die box | 1. die box body consists of cooling water cavity and lubricating powder cavity 2. the first and the last dies are rotating die 3. open automatic flowing water cooling 4. gas cylinder tuning roller balance, angle adjustment is non-touch inductive sensor |
11 | transmission | High efficiency narrow v-belt, low noise |
12 | control | 1.main machines use frequency controller(ABB) 2. PLC control(SIEMENSE S7-300) 3.All digital communication and control, with person-PC screen, data and fault indication |
13 | Related function | 1. wire length detection with pre-set 2. wire breaking protection stop 3. function of not start when protection cover open or before length pre-set reposition |

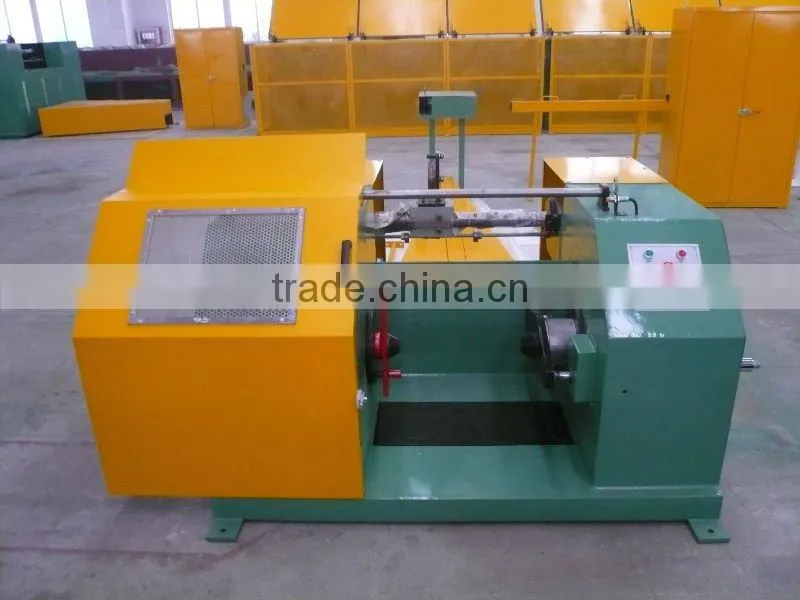

14 | Take-up | 1. H-wheel size1250mm, 2. uses pneumatic brake device 3. polish rod winding displacement 4. rod array pitch is adjustable 5. frequency conversion control , |
