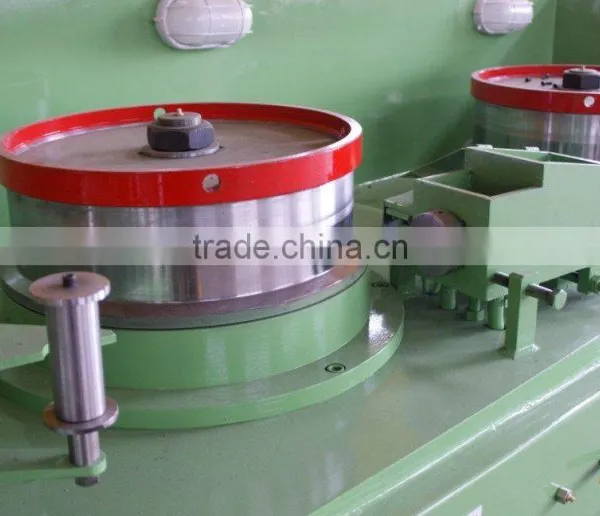

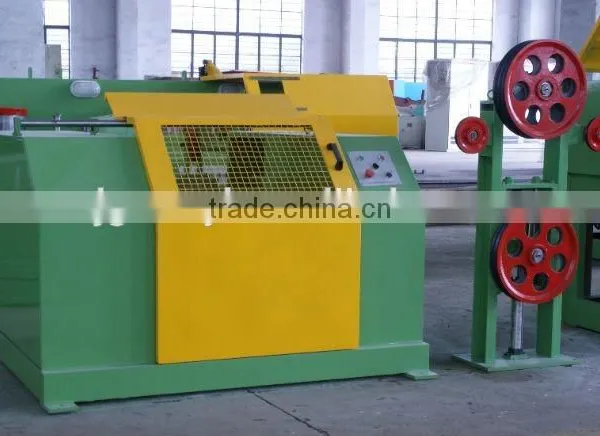

Help CenterPLC Controlled Straight Line Wire Drawing Machine
Related Products
-
LZ7-600 Straight Line Multi-function Wire Drawing MachineUS$ 50,000 - 150,000MOQ: 1 Set -
LZ600 Straight Line Wire Drawing Machine of High TechnologyUS$ 30,000 - 70,000MOQ: 1 Set
-
Nail Wire Drawing MachineUS$ 50,000 - 100,000MOQ: 1 Set
-
Wire Embossing MachineUS$ 50,000 - 150,000MOQ: 1 Set
-
Fine Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
low noise best quality,it can draw carbon wire,co2 wire,flux-cored wire ...
the first and last die can be rotating die
........

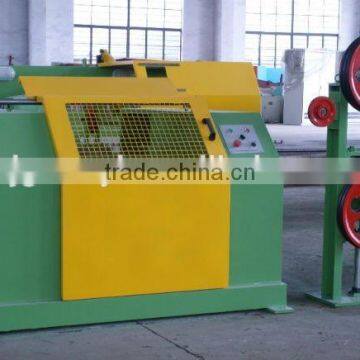

the machine including pay-off and take-up machine
the configuration
inverter upm-kymmene
PLC Japan Mitsubishi
Sensor Germany Turck
Low voltage Omron or Chint

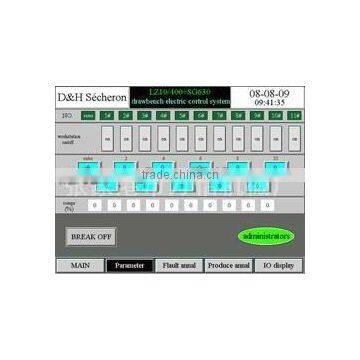

Man-machine interface Taiwan
all can be your needs...
Scope of application
Low carbon wire,stainess steel wire,high carbon steel wire,
nonferrous metal wire
Model |
No. of drafts |
Max inlet wire mm |
Min production mm |
Motor power kw |
Production speed m/s |
Noises dBA |
400 |
6-8 |
3.5 |
1.20 |
7.5---11 |
18 |
81 |
600 |
10-12 |
6.5 |
1.20 |
11---22 |
18 |
82 |
| ||||||
Φ1.2mm Tensile Strength of steel wire
1)Low carbon steel SAE1006<1100MPa
2)304 stainless steel <1300MP
3)High carbon steel 60#<1400MPa
Roller die drawing Production technique for low carbon steel wire,stainless steel wire:
Hydraulic pressure double H spool pay off machine(non stop)→ machinery peeling→ electrolytic pickling→ washing→LZ5/600+LZ5/400
roller die drawing machine φ6.5mm →φ5.5mm →φ4.4mm →φ3.6mm →
φ3.0mm →φ2.5mm →φ2.1mm →φ1.78mm →φ1.55mm →φ1.35mm
→φ1.25mm →φ1.2mm → take up
