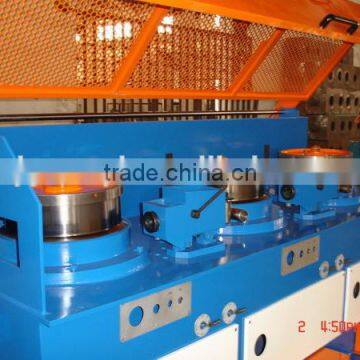

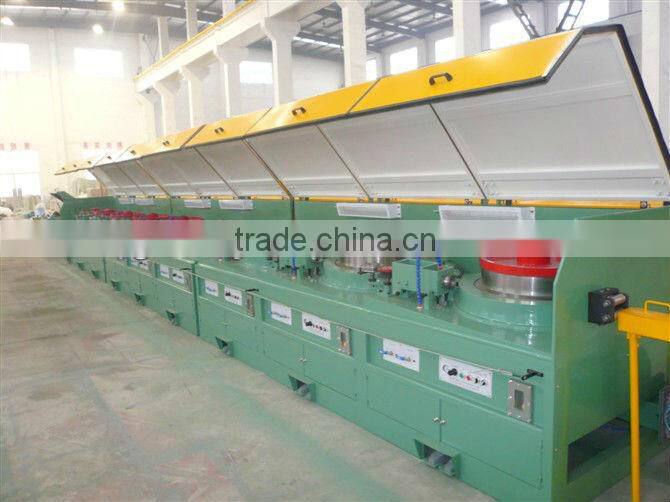

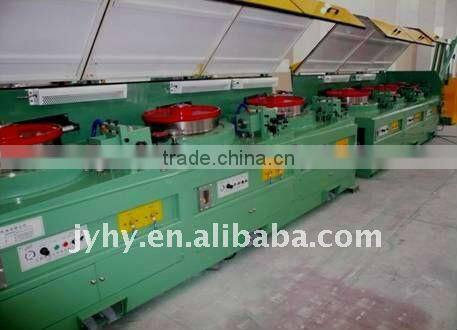

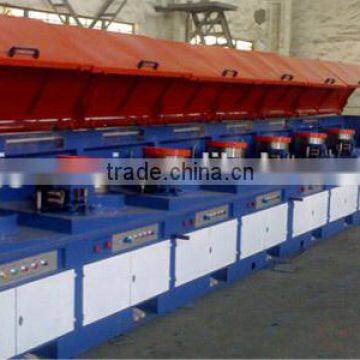

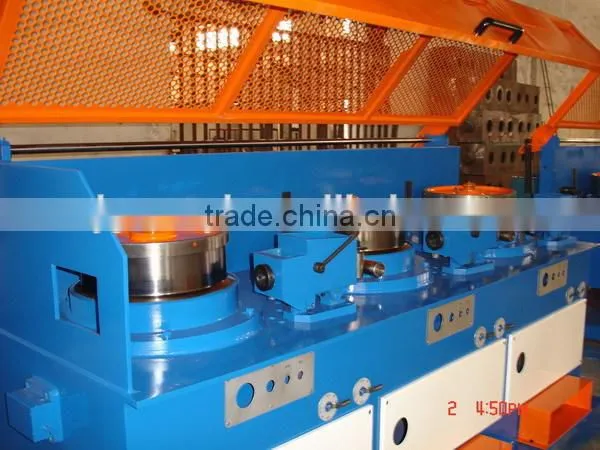

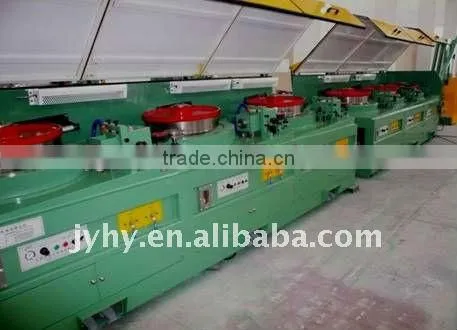

Help CenterMS Wire Drawing Machine LZ7-600+LZ10-400
Related Products
-
LZ600 Straight Line Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set -
Straight Line Wire Drawing MachineUS$ 50,000 - 150,000MOQ: 1 Set
-
Big Wire Drawing Machine LineUS$ 30,000 - 70,000MOQ: 1 Set
-
ER70S Welding Wire Production Machine LineUS$ 20,000 - 60,000MOQ: 1 Set
-
Big Wire Drawing MachineUS$ 30,000 - 70,000MOQ: 1 Set
Equipment Performance
1 Reliability: For electric control system, the international fashion PROFIBUS on site technology, controlled by whole digital control. All electric elements are international famous brands. The operation of electric control system runs stable and reliable.
2 Energy saving: AC frequency speed adjustable drive is adopted to reduce the impact to mechanical stroke. Meanwhile, it can reduce the energy cost by over 30%.
3 Safety: with multiply protection function, when the equipment runs in high speed so that the protection shell is opened and other trouble takes place, the equipment speed is reduced till stop.
4 Convenient: For each set, there are functions such as positive and negative inching, front linkage, rear linkage function. There are length preset display at main operational pulpit manmachine interface, speed preset display, trouble inquiry, equipment status display, computer die arrangement.
5 Low noise: for main drive, we adopt the hard gear surface speed reducing box + narrow V combination belt or two steps narrow V combination drive, reduce the driving noise effectively.
6 High efficiency: reduce the trouble taking place rate, improve the average working speed, improve production effectiveness largely.
7 Environmental protection: The wire drawing machine is whole enclosing design. The negative pressure principle is used to collect the dust produced when the steel wire is pull up draw and gather dust into the dedust equipment through air pipe. It improves the working environment when the steel wire pull and draw and remove the dust powder pollution during steel wire drawing course.
8 Outer visual: the outline of equipment is optimization for its structure, designed according to platform, meet to the international fashion, the same as or better than the imported equipment.
Straight feeding wire drawing machine technical parameter
Sr. | Name | Unit | Data |
1 | Drawing machine name |
| LZ7/600 LZ10/400 |
2 | Drawing machine and pull mode |
| Straight line tuning type |
3 | Draft number |
| 17 |
4 | Coil diameter | mm | Φ600 φ400 |
5 | Speed adjustable mode |
| AC freq. Con. Speed Adjustable |
6 | Motor power | KW | 7×30 10×15 |
7 | Wire-in diameter | mm | Maxφ6.5 |
8 | End product diameter | mm | min Φ1.0 |
9 | Average compression | % | ≤21% |
10 | Design drawing speed | m/s | max18(light load high speed, heavy load low speed) |
11 | Control mode |
| Fully digital |
12 | Logical control |
| PLC |
13 | Wire-in strength | MPa | ≤1250 |
14 | Carbon content in material |
| Carbon spring wire steel, high or low carbon steel |
15 | Drum cooling |
| Self contaminant release narrow seam type water cooling + outer ring type fan cooling. |
16 | Die box |
| Direct water cooling |
17 | Cooling water pressure |
| 0.2~0.3Mpa |
18 | Pneumatic system |
| Air pressure≥0.5Mpa |
19 | Stop time | S | Normal stop≤50s,EMG stop≤5s |
20 | Pay-off mode |
| In-line turning pay-off machine |
21 | Take-in mode |
| Trunk pay-off machine (with small compression rate drawing)or I-type take-in coil |
22 | Total length of production line | M | 60.8(as per in-line turning payoff machine) |
