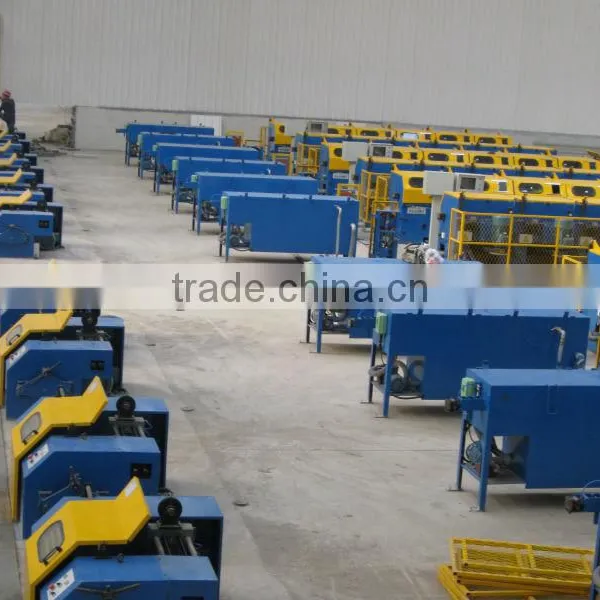

Help CenterBig Wire Drawing Machine
Related Products
-
Alloy Wire Drawing MachineUS$ 50,000 - 200,000MOQ: 1 Set -
Wire Drawing Machine ManufacturerUS$ 20,000 - 50,000MOQ: 1 Set
-
Alloy Steel Wire Drawing MachineUS$ 40,000 - 80,000MOQ: 1 Set
-
Wire Straightening and Cutting MachineUS$ 1,500 - 5,500MOQ: 1 Set
-
High Speed Good Quality Continous Wire Drawing MachineUS$ 60,000 - 60,000MOQ: 1 Set
Reliability 2.Energy saving3.Safety 4.Convenient5.Low noise 6.High efficiency7.Environmental protection

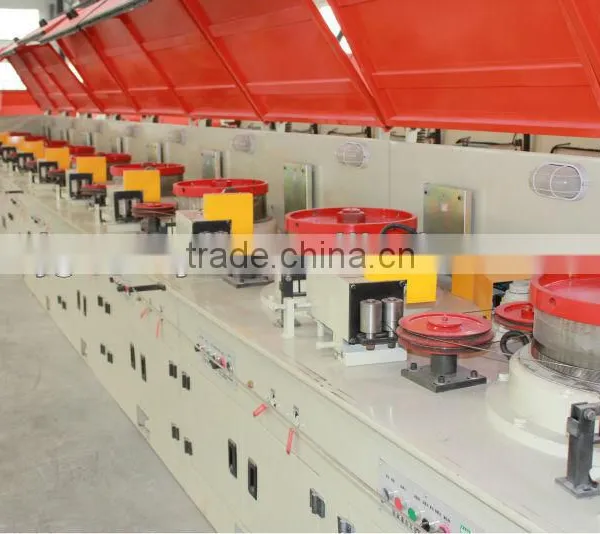

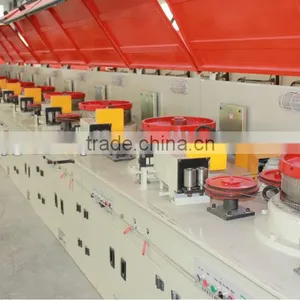

Straight feeding wire drawing machine technical parameter Sr. Name Unit Data
1 Drawing machine name LZ13/560
2 Drawing machine and pull mode Straight line tuning type
3 Draft number 13 4 Coil diameter mm Φ560 5 Speed adjustable mode AC freq. Con. Speed Adjustable 6 Motor power KW 8X37+5×30+1X22 7 Wire-in diameter mm Max Φ7.0 8 End product diameter mm Min Φ1.5 9 Average compression % ≤21.1% 10 Design drawing speed m/s max16(light load high speed, heavy load low speed) 11 Control mode Fully digital 12 Logical control PLC 13 Wire-in strength MPa ≤1250 14 Carbon content in material high and low carbon steel wire 15 Drum cooling Self contaminant release narrow seam type water cooling + outer ring type fan cooling. 16 Die box Direct water cooling 17 Cooling water pressure 0.2~0.3Mpa 18 Pneumatic system Air pressure≥0.5Mpa 19 Stop time S Normal stop≤50s,EMG stop≤5s 20 Pay-off mode Duck bill type pay-off machine 21 Take-in mode I-type take-in coil 22 Total length of production line M About 30M Model No of drafts Max.inlet wire(mm) Min.outlet wire(mm) Motor power (KW) Production speed(M/S) LZ300 8-12 2.5 0.4 3-4.5 25 LZ350 8-12 3.5 0.6 5.5-11 25 LZ400 8-12 4.2 0.75 7.5-15 25 LZ450 8-12 4.5 0.96 15-22 218 LZ600 6-8 6.5 1.4 22-37 16
