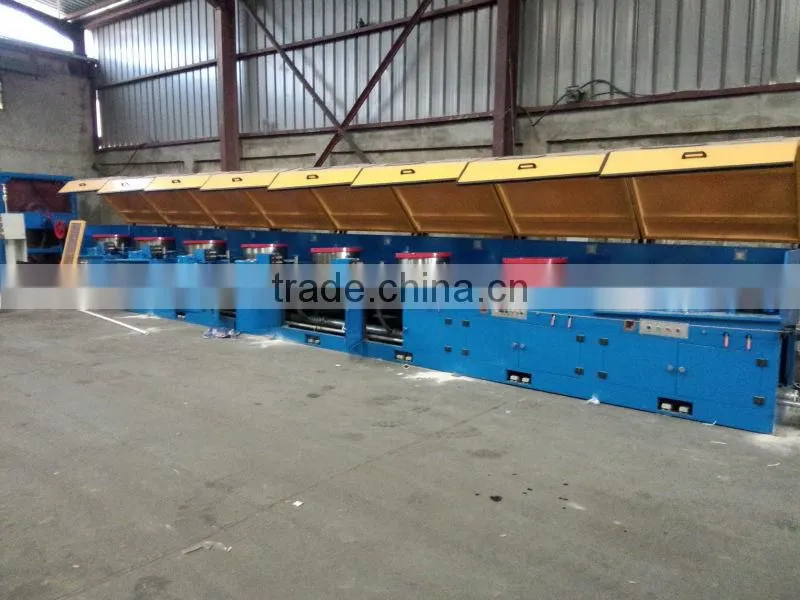

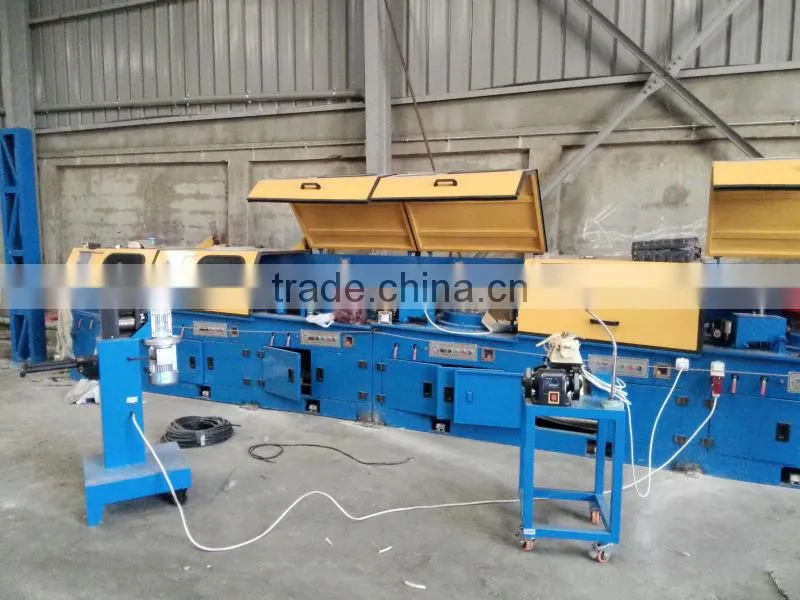

Help CenterStraight Line Wire Drawing Machine
Related Products
-
Big Wire Drawing Machine LineUS$ 30,000 - 70,000MOQ: 1 Set -
ER70S Welding Wire Production Machine LineUS$ 20,000 - 60,000MOQ: 1 Set
-
Big Wire Drawing MachineUS$ 30,000 - 70,000MOQ: 1 Set
-
Alloy Wire Drawing MachineUS$ 50,000 - 200,000MOQ: 1 Set
-
Wire Drawing Machine ManufacturerUS$ 20,000 - 50,000MOQ: 1 Set
low noise best quality,it can draw carbon wire,co2 wire,flux-cored wire ...
the first and last die can be rotating die
........
the machine including pay-off and take-up machine
the configuration
inverter upm-kymmene
PLC Japan Mitsubishi
Sensor Germany Turck
Low voltage Omron or Chint
Man-machine interface Taiwan
all can be your needs...
Scope of application
Low carbon wire,stainess steel wire,high carbon steel wire,
nonferrous metal wire
Model | No. of drafts | Max inlet wire mm | Min production mm | Motor power kw | Production speed m/s | Noises dBA |
400 | 6-8 | 3.5 | 1.20 | 7.5---11 | 18 | 81 |
600 | 10-12 | 6.5 | 1.20 | 11---22 | 18 | 82 |
| ||||||
Φ1.2mm Tensile Strength of steel wire
1)Low carbon steel SAE1006<1100MPa
2)304 stainless steel <1300MP
3)High carbon steel 60#<1400MPa
Roller die drawing Production technique for low carbon steel wire,stainless steel wire:
Hydraulic pressure double H spool pay off machine(non stop)→ machinery peeling→ electrolytic pickling→ washing→LZ5/600+LZ5/400
roller die drawing machine φ6.5mm →φ5.5mm →φ4.4mm →φ3.6mm →
φ3.0mm →φ2.5mm →φ2.1mm →φ1.78mm →φ1.55mm →φ1.35mm
→φ1.25mm →φ1.2mm → take up
