Hose Wire Drawing Machine

Hose Wire Drawing Machine thumbnail-1
Hose Wire Drawing Machine thumbnail-2
Hose Wire Drawing Machine thumbnail-3
Hose Wire Drawing Machine photo-1
Hose Wire Drawing Machine photo-2
Hose Wire Drawing Machine photo-3
US$ 23,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
wanyi
Model Number:
LZ7-400
Contact Supplier Request Quote Chat Now
Zhangjiagang City Wanyi Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Your needs
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ7-400
After-sales Service Provided Overseas service center available

hose wire drawing machinehose wire drawing machinehose wire drawing machine

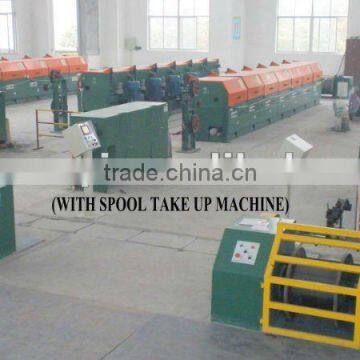

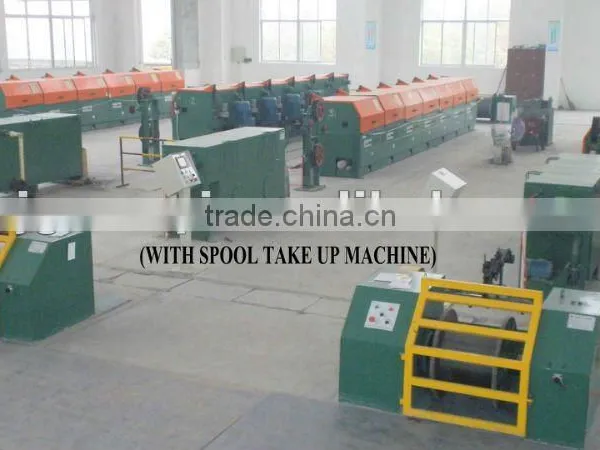

hose wire drawing machineLZ7/400 Straight

Wire Drawing Machine Technical Parameters :

No.

Name

Unit

Data

1

Machine type



 LZ7/400

2

Tuning type



 Straight line tuning

3

Dawing passes



 7

4

Block diameter

mm

Φ400

5

Speed adjustable



 AC freq. Con. Speed Adjustable

6

Motor power

KW

(11 or 15 or 18.5 KW)x7

7

Inlet diameter

mm

 Max               Φ2.8

8

Outlet diameter

mm

 Min                Φ0.8

9

Average pass compression

%

22.5%

10

Design drawing speed

m/s

22m/sec

11

Control mode



Fully digital

12

Logical control



PLC

13

Inlet Wire strength

MPa

≤500

14

Carbon content in material



Carbon spring wire steel, high and low  carbon steel,CO2 wire,s.s wire and so on

15

Drum cooling



Inside using "Narrow-Gap" water cooling,

Outside using" Forced"wind cooling.

16

Die box



Direct water cooling

17

Cooling water pressure



0.2~0.3Mpa

18

Pneumatic system



Air pressure≥0.5Mpa

19

Stop time

S

Normal stop≤50s,EMG stop≤5s..
