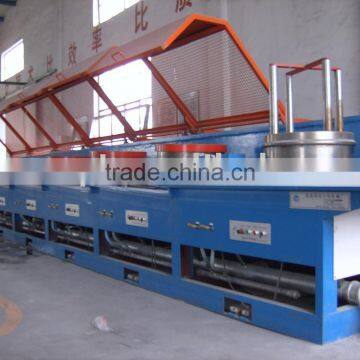

Help CenterStraight Line Wire Drawing Machine
Related Products
-
Steel Cord Wire Drawing MachineUS$ 30,000 - 80,000MOQ: 1 Set -
LZ8/400 Straight Line Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
Steel Rope Wire Drawing MachineUS$ 10,000 - 60,000MOQ: 1 Set
-
Solder Wire Drawing MachineUS$ 20,000 - 50,000MOQ: 1 Set
-
Mild Wire Drawing MachineUS$ 30,000 - 56,000MOQ: 1 Set
Straight feeding wire drawing machine technical parameter..
Sr. |
Name |
Unit |
Data |
1 |
Drawing machine name |
|
LZ7/600 LZ10/400 |
2 |
Drawing machine and pull mode |
|
Straight line tuning type |
3 |
Draft number |
|
17 |
4 |

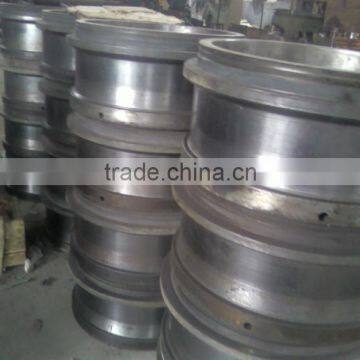

Coil diameter |
mm |
Φ600 φ400 |
5 |
Speed adjustable mode |
|
AC freq. Con. Speed Adjustable |
6 |
Motor power |
KW |
7×30 10×15 |
7 |
Wire-in diameter |
mm |
Maxφ6.5 |
8 |
End product diameter |
mm |
min Φ1.0 |
9 |
Average compression |
% |
≤21% |
10 |
Design drawing speed |
m/s |
max18(light load high speed, heavy load low speed) |
11 |
Control mode |
|
Fully digital |
12 |
Logical control |
|
PLC |
13 |
Wire-in strength |
MPa |
≤1250 |
14 |
Carbon content in material |
|
Carbon spring wire steel, high or low carbon steel |
15 |
Drum cooling |
|
Self contaminant release narrow seam type water cooling + outer ring type fan cooling. |
16 |
Die box |
|
Direct water cooling |
17 |
Cooling water pressure |
|
0.2~0.3Mpa |
18 |
Pneumatic system |
|
Air pressure≥0.5Mpa |
19 |
Stop time |
S |
Normal stop≤50s,EMG stop≤5s |
20 |

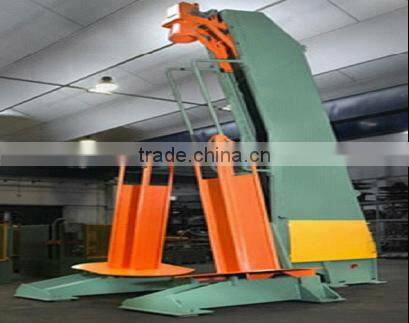

Pay-off mode |
|
In-line turning pay-off machine |
21 |
Take-in mode |
|
Trunk pay-off machine (with small compression rate drawing)or I-type take-in coil |
22 |
Total length of production line |
M |
60.8(as per in-line turning payoff machine) |
