Solder Wire Drawing Machine

Zhangjiagang City Wanyi Machine Factory
Solder Wire Drawing Machine thumbnail-1
Solder Wire Drawing Machine thumbnail-2
Solder Wire Drawing Machine thumbnail-3
Solder Wire Drawing Machine thumbnail-4
Solder Wire Drawing Machine photo-1
Solder Wire Drawing Machine photo-2
Solder Wire Drawing Machine photo-3
Solder Wire Drawing Machine photo-4
US$ 20,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR AS U NEED
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not Normal
Place of Origin Jiangsu, China
Brand Name wanyi
Model Number LZ
Voltage 380V
Power(W) 11-37KW
Dimension(L*W*H) 9000X165X150MM
Weight 6000KG
Certification third part
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

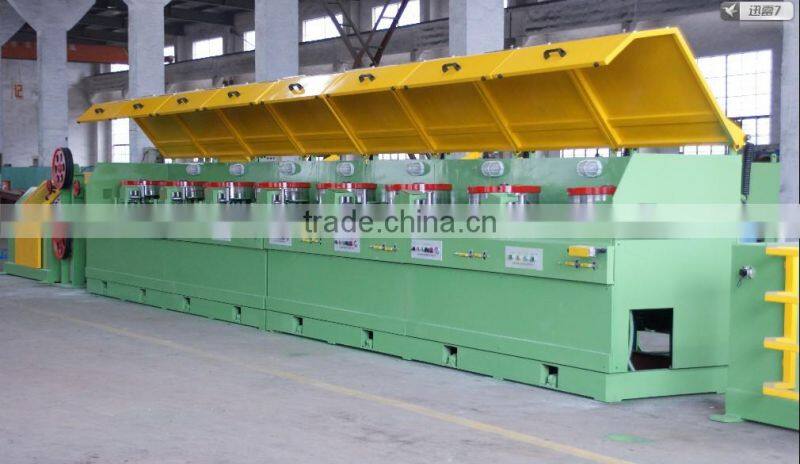

solder wire drawing machinesolder wire drawing machinesolder wire drawing machinesolder wire drawing machinesolder wire drawing machineSTRAIGHT LINE DRAWING MACHINE  LZ8/400.

No

Item

Composition and technical details

1

Equipment name

LZ8/400 wire drawing line

2

Equipment composing

1. FX800 h-wheel pay-off

2. LZ8/400 straight line drawing machine

3. SG800 h-wheel take-up

4. man-machine interface operation panel

5. electric control cabinet

3

Working range

1. inlet: dia max 2.35mm

2. material: ER70S-6 50S-6

3.wire strength: 1000Mpa

4.outlet size: 0.6-1.2mm

4

Wire drawing speed

Design speed 16m/s,

5

Water/air pressure

Water pressure≥2MPA

Air pressure≥6MPA

6

motors

1. 1st-8th blocks: 11kw, AC frequency control motors

2. H-Wheel take-up:15kw,AC frequency control motors

7

block

1. block size: 400mm

2. block material is ZG45 steel with WC spraying, hardness is HRC60

8

cooling

1. Inside uses narrow slot water cooling

2. outside uses narrow slot wind cooling

9

stand

1. stand is steel welded structure

2. with water, electricity and air control button and emergency stop device

10

Tune die box

1. die box body consists of cooling water cavity and lubricating powder cavity

2. the first and the last dies are rotating die

3. open automatic flowing water cooling

4. gas cylinder tuning roller balance, angle adjustment is non-touch inductive sensor

11

transmission

High efficiency narrow v-belt, low noise

12

control

1.main machines use frequency controller(upm-kymmene)

2. PLC control(SIEMENSE S7-300)

3.All digital communication and control, with person-PC screen, data and fault indication

13

Related function

1. wire length detection with pre-set

2. wire breaking protection stop

3. function of not start when protection cover open or before length pre-set reposition

14

Take-up

1. H-wheel size800mm,

2. uses pneumatic brake device

3. polish rod winding displacement

4. rod array pitch is adjustable

5. frequency conversion control ,
