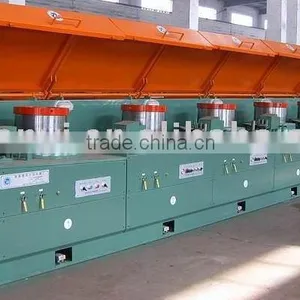

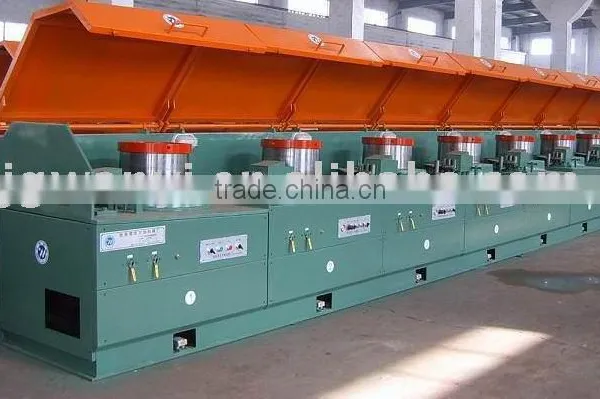

STRAIGHT LINE DRAWING MACHINE LZ400
No |
Item |
Composition and technical details |
1 |
Equipment name |
LZ7/400 wire drawing line |
2 |
Equipment composing |
1. rotating pay-off 2. LZ7/400 straight line drawing machine 3. SG800 h-wheel take-up 4. man-machine interface operation panel 5. electric control cabinet |
3 |
Working range |
1. inlet: dia max 2.4mm 2. material: low and middle carbon steel wire 3.wire strength: 1000Mpa 4.outlet size: 1.0-1.2mm |
4 |
Wire drawing speed |
Design speed 16m/s, normal 14m/s |
5 |
Water/air pressure |
Water pressure≥0.2MPA Air pressure≥0.6MPA |
6 |
motors |
1. 1st-7th blocks: 11kw, AC frequency control motors 2. H-Wheel take-up:15kw,AC frequency control motors |
7 |
block |
1. block size: 400mm 2. block material is ZG45 steel with WC spraying, hardness is HRC60 |
8 |
cooling |
1. Inside uses narrow slot water cooling 2. outside uses narrow slot wind cooling |
9 |
stand |
1. stand is steel welded structure 2. with water, electricity and air control button and emergency stop device |
10 |
Tune die box |
1. die box body consists of cooling water cavity and lubricating powder cavity 2. the first and the last dies can be rotating die 3. open automatic flowing water cooling 4. gas cylinder tuning roller balance, angle adjustment is non-touch inductive sensor |
11 |
transmission |
High efficiency narrow v-belt, low noise |
12 |
control |
1.main machines use frequency controller:inn 2. PLC control(Mitsubishi) 3.All digital communication and control, with person-PC screen, data and fault indication 4.sensor Turck 5 low voltage apparatus Omron or Zhint |
13 |
Related function |
1. wire length detection with pre-set 2. wire breaking protection stop 3. function of not start when protection cover open or before length pre-set reposition |
14 |
Take-up |
1. H-wheel size800mm, 2.uses pneumatic brake device 3.polish rod winding displacement 4.rod array pitch is adjustable 5.frequency conversion control , |
