Home > Manufacturing & Processing Machinery > Metallurgy Machinery > High Speed Automatic Wire Drawing Machine

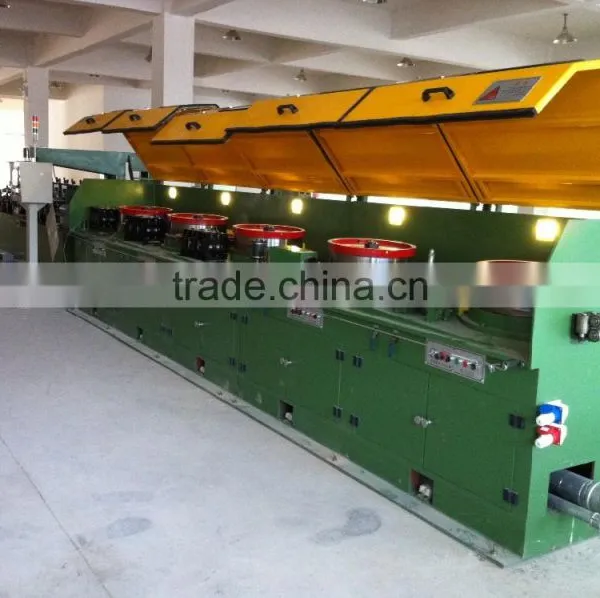

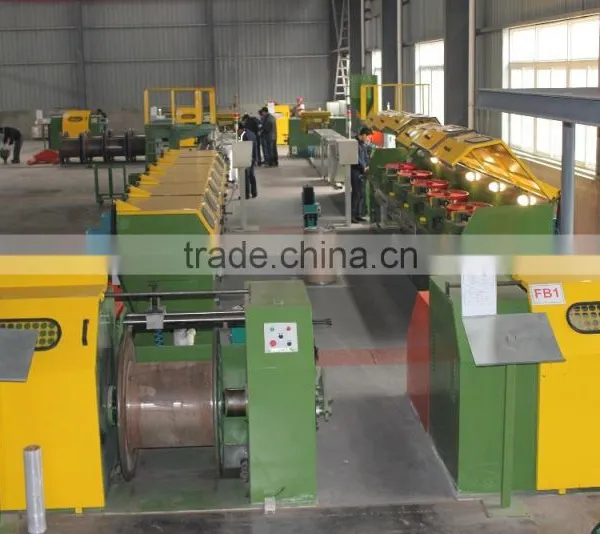

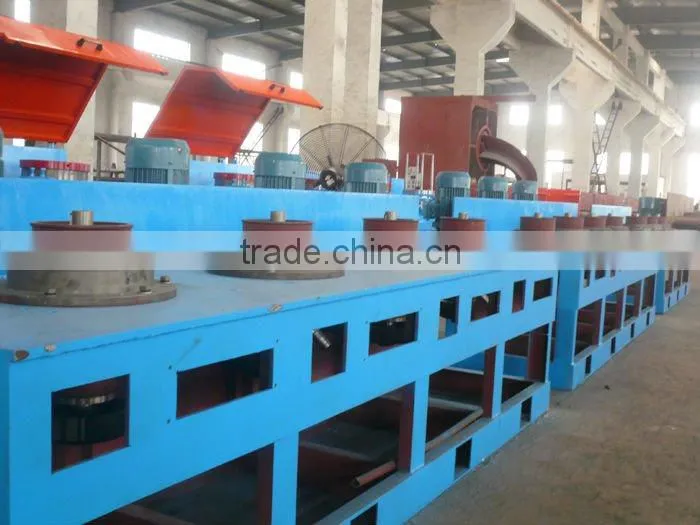

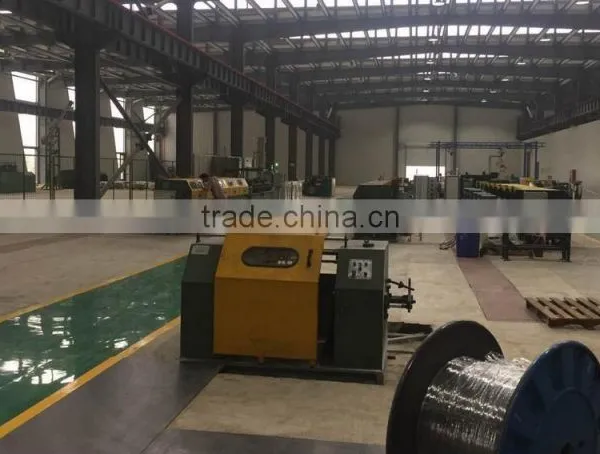

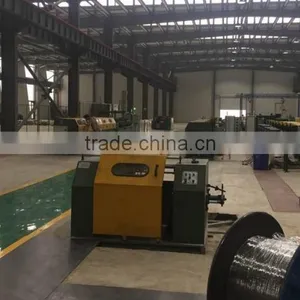

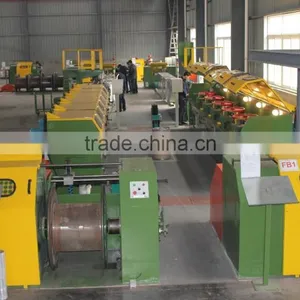

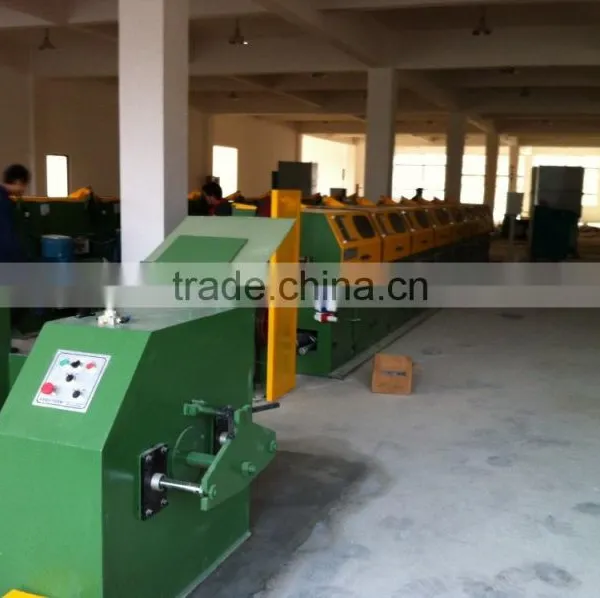

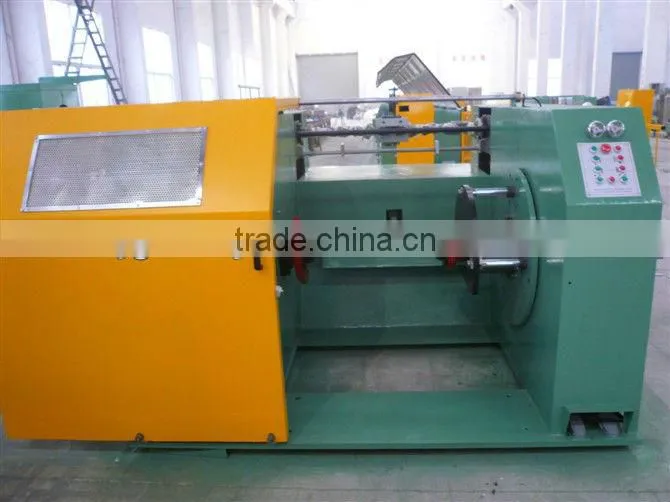

High Speed Automatic Wire Drawing Machine
US$ 20,000 - 60,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
wanyi
Model Number:
LZ
After-sales Service Provided:
Engineers available to service machinery overseas
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR AS U NEED
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Zinc Coated Wire Drawing MachineUS$ 20,000 - 80,000MOQ: 1 Set -
Steel Rod Wire Drawing MachineUS$ 30,000 - 65,000MOQ: 1 Set
-
Binding Black Annealing Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
SAE1008/Q195 Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Environmental Protection Wire Drawing MachineUS$ 30,000 - 85,000MOQ: 1 Set
Brand Name
wanyi
Model Number
LZ
After-sales Service Provided
Engineers available to service machinery overseas
Application
It is applied for the production of prestressing strand, steel cord, bead wire, steel wire, spring steel wire, stainless steel wire, gas welding wire, arc welding wire,etc.
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the machine according to customers' requirements.
--------------------------------------------------------------------------------------
Successful experience / Markets
Be up to the international level. Our lines and related complete equipment have been exported to Southeast Asia, West Asia, Eastern Europe, South America, the Middle East, Russia, India, Indonesia, Morocco, South Africa, Algeria, etc.
