Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Straightening Machinery > SAE1008/Q195 Wire Drawing Machine

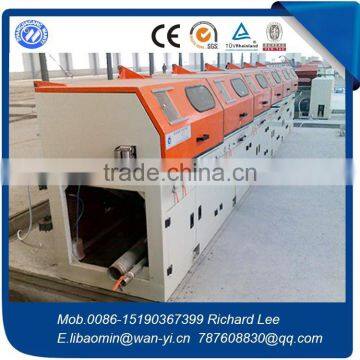

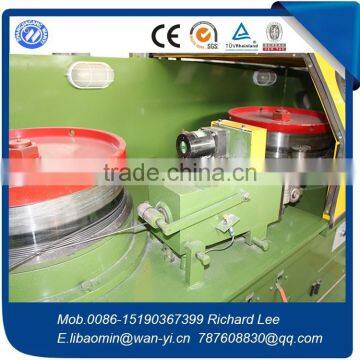

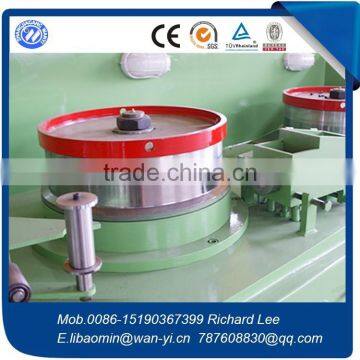

SAE1008/Q195 Wire Drawing Machine
US$ 20,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wire Drawing Machine
Use:
Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Environmental Protection Wire Drawing MachineUS$ 30,000 - 85,000MOQ: 1 Set -
Low Carbon High Carbon Straight Line Wire Drawing MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Tyre Bead Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Chinese Wire Drawing Machine ManufacturerUS$ 20,000 - 70,000MOQ: 1 Set
-
Customized Cost Performance Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
Condition
New
Type
Wire Drawing Machine
Use
Wire
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
LZ600
Voltage
380V
Power(W)
22X7+15X1KW
Dimension(L*W*H)
8X1.8X1.5M
Weight
8000kg
Certification
third part
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
