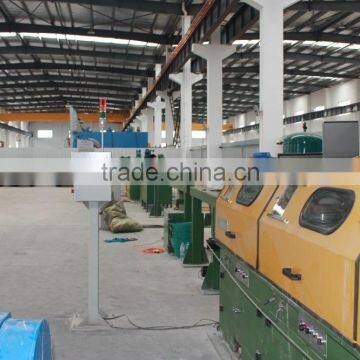

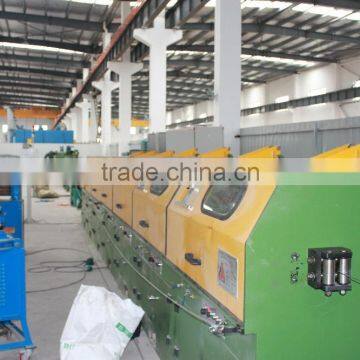

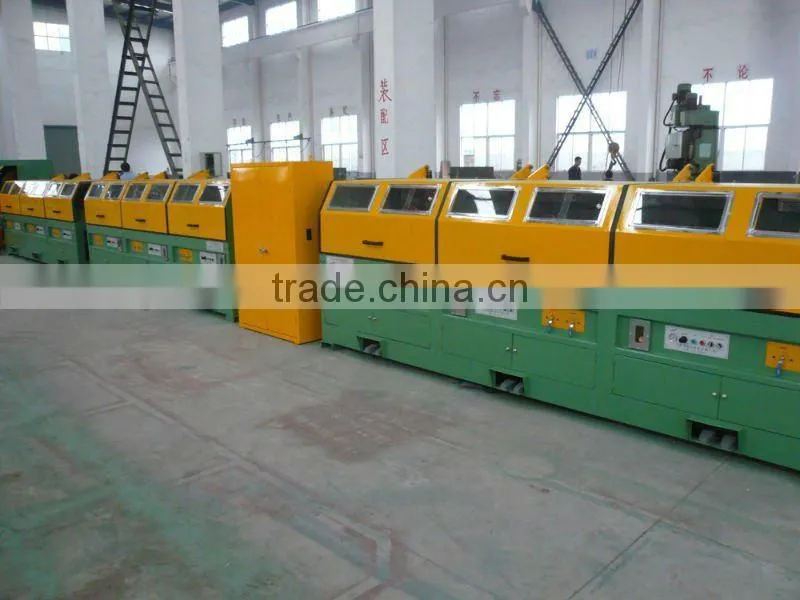

Help CenterSteel Rod Wire Drawing Machine
Related Products
-
Binding Black Annealing Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set -
SAE1008/Q195 Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Environmental Protection Wire Drawing MachineUS$ 30,000 - 85,000MOQ: 1 Set
-
Low Carbon High Carbon Straight Line Wire Drawing MachineUS$ 30,000 - 80,000MOQ: 1 Set
-
Tyre Bead Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
1biggest inlet diameter: 5.5 or 1-the max inlet 6.0mm
2minimum inlet line 1.8 mm
3 max compression ratio: 89.2%
4the highest drawing speed 16m/s, normal speed: 12m/s
5water and water pressure: 8 m³/h water pressure 0.25 Mpa or more
6air and pneumatic: 2.0 m³/h Air pressure 0.6 Mpa or more

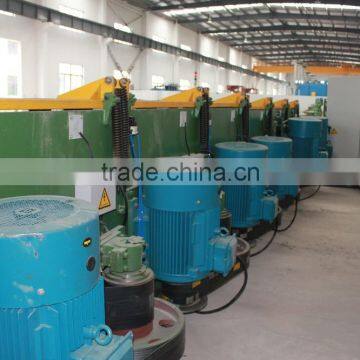

7motor :(1) the main motor: the first block 30KW, and the rest 22KW, ac conversion motor
(2)Take-up machine :22KW ac frequency conversion motor
(9) block: straight line type: diameter is 560mm
8 block materials: stainless steel,ZG45 - 55,working surface,tungsten carbide spraying alloy powder, hardness more than HRC60 finish.32 Ra or less
9Using life:two years or more,since wear chamfer, free replacement.
10 block cooling way: inner by slit type water-cooling, The outer cooled by ring air
mould box adopts welded parts, surface of guide wheel or roller spraying tungsten carbide rod, using life is one year,since wear chamfer, free replacement.
(2) mode box body are two parties: lubrication powder body and the water body of indirect cooling
11mode box can be adjusted universally to ensure the angle of wire drawing.
