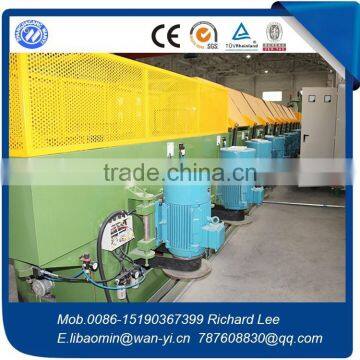

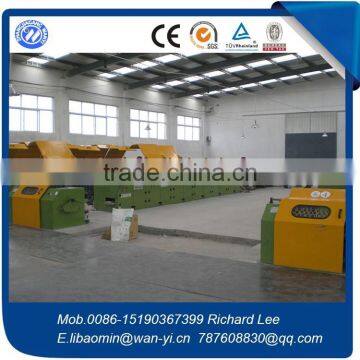

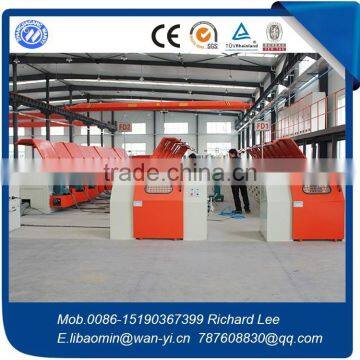

Help CenterEnvironmental Protection Wire Drawing Machine
Related Products
-
Low Carbon High Carbon Straight Line Wire Drawing MachineUS$ 30,000 - 80,000MOQ: 1 Set -
Tyre Bead Wire Drawing MachineUS$ 20,000 - 60,000MOQ: 1 Set
-
Chinese Wire Drawing Machine ManufacturerUS$ 20,000 - 70,000MOQ: 1 Set
-
Customized Cost Performance Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
Wire Drawing Machine Manufacturing ExpertUS$ 20,000 - 60,000MOQ: 1 Set
1. Drawing speed: (1) max: 18m/s (2) average: 15m/s with output 1.1mm 2.4t/d (8h per day)
0.9mm1.7t/d (8h per day)
2. Water- air pressure: (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa
3. Electric motor standard: (1)drawing machine: 11KW AC motor
(2) wire coiling machine: 7.5KW AC motor

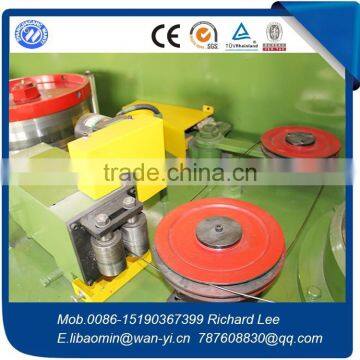

4. Reel form: (1) diameter: 400mm
(2) Material: ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra
(3) Service life: 10000h
5. Reel cooling: (1) inside small clearance space water cooling
(2) outside forced air cooling, quickly cool the wire surface
6. Stander form (1) main stander with steel structure welding
(2) Water, electric and gas operation board and meter to trig urgently
(3) Painted in blue or up to client
(4) With safety shield, can prevent the powder from smelling out.
7 Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
