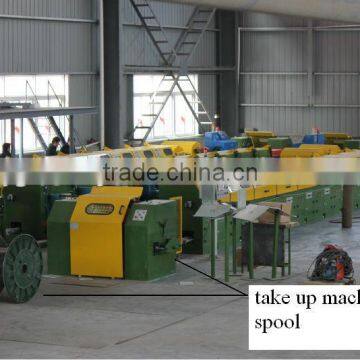

Help CenterSAE1006 Wire Drawing Machine
Related Products
The stright type drawing machine is one of our production.
It's low noise, resonable price with good after-sale service
Low carbon wire drawing machine line
Pretreatment line(up-draft pay-off rack+shucking brush derusting machine +dryer)→LZ8/600 straight line drawing machine →600 trunk type take-up machine →annealing furnace →rotating pay-off rack →LZ7/400 straight line drawing machine→H-Wheel take-up machine
First: rough drawing machine
Equipment setting: pretreatment work line + LZ 8/600 straight line drawing machine + 600 trunk type drawing machine
1.Equipment constituter(1) pretreatment work line: up-draft pay-off rack + Shucking-brush derusting machine+boron coating+ tube type dryer
speed of treating line ≤2.5M/S

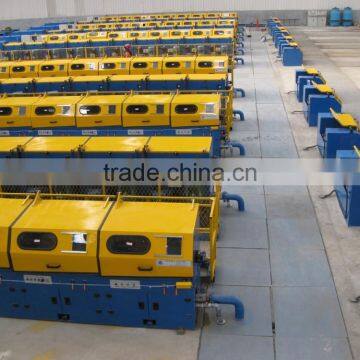

(2)LZ8/600 straight line drawing machine
(3)600 trunk type take up machine
(4 ) human machine interface display screen
(5) Whole set of electrical appliance control cabinet
2. Work areas (1) input diameter 6.0 or 5.5 mm
(2)input strength: 500Mpa or less
(3) input material: low-carbon wire
(4) output diameter: 2.0--2.4mm
3. Drawing speed: (1) max: 10m/s (2) average: 8m/s with output 6.8Ton/8 hours
4. Water- air pressure: (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa
5. Electric motor standard: (1)drawing machine: 30KWX1+22x7KW AC motor
(2) wire coiling machine: 15KW AC motor
6. Reel form: (1) diameter: 600mm
(2) Material: ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra
(3) Service life: 10000h
7. Reel cooling: (1) inside small clearance space water cooling
(2) outside forced air cooling, quickly cool the wire surface
8. Stander form (1) main stander with steel structure welding
(2) Water, electric and gas operation board and meter to trig urgently
(3) Painted in blue or up to client
(4) With safety shield, can prevent the powder from smelling out.
