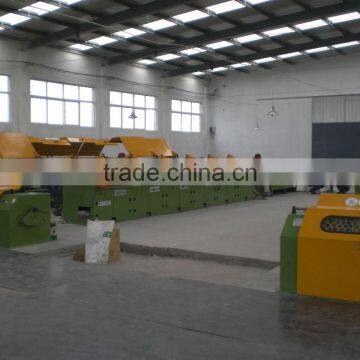

Screw Wire Drawing Machine
US$ 25,000 - 65,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI OR AS U NEED
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
wanyi
Model Number
LZ560
Voltage
220/380V
Power(W)
15KW-30KW
Dimension(L*W*H)
9000X1600X1560MM
Weight
8000KG
Certification
third parts
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas

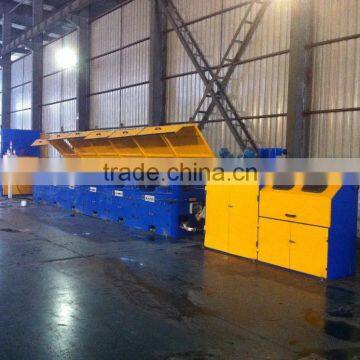

high speed wire drawing machine
(1) Maximum enter-wire strength: ≤700Mpa
(2) Maximum enter-wire diameter: 5.5mm or 6.5mm
(3) Minimum out-wire diameter: 2.2mm or 2.35mm
(4) Maximum compression rate: 84%
(5) Maximum drawing speed: 12m/s Normal drawing speed: 10m/s
(6) Water consumption and pressure: 5m3/h Water pressure≥0.25Mpa
(7) Gas consumption and air pressure: 1.0m3/h Air pressure≥0.6Mpa
(8) Motor: main unit:30KW of firt head,the left is 22KW AC frequency conversion motor
take up machine: 15KW AC frequency conversion motor(800 I spool)...
Specification
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
Note: We can design the machine according to customers' requirement..
