Help CenterNail Wire Drawing Machine
Related Products

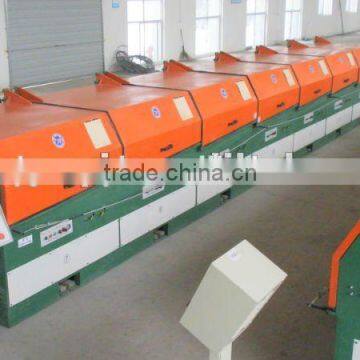

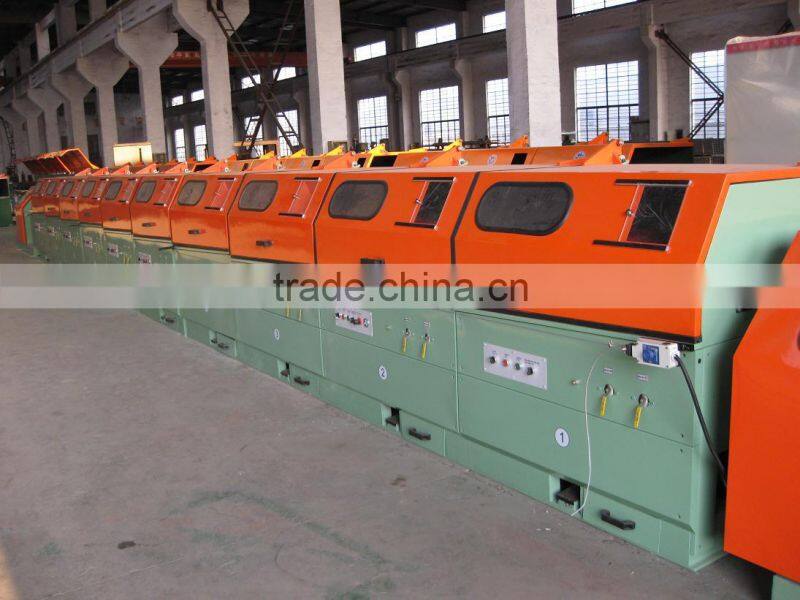

STRAIGHT LINE DRAWING MACHINE LZ5/560
No | Item | Composition and technical details |
1 | Equipment name | LZ5/560 wire drawing line |

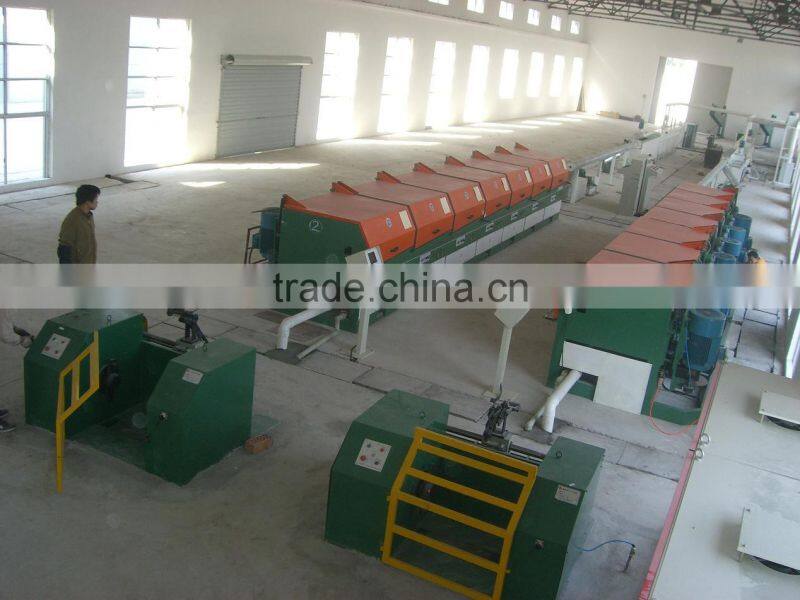

2 | Equipment composing | 1. FX1250 h-wheel payoff 2. LZ5/560 straight line drawing machines 3. SG1250 h-wheel take-up 4. control cabinet |
3 | Working range | 1. Max inlet: dia 6.0mm(annealing needed before drawing) 2. wire strength: 300Mpa 3. material: aluminum welding wire 4. min outlet: dia 2.75mm |
4 | wire drawing speed | Designed speed:10m/s, working speed:5-8m/s |
5 | Water/air pressure | Water pressure≥0.2Mpa Air pressure≥0.6MPa |
6 | motor | 1. pay-off 18.5kw frequency control AC motor 2. 1st-8rd block 22kw frequency control AC motor 3. h-wheel: 22kw frequency control AC motor |
7 | block | 1. block size: dia 560mm 2. block material is ZG45 steel with WC spraying, hardness is HRC60 |
8 | cooling | 1. inside is high efficiency narrow slot water cooling 2. die box uses direct water cooling 3 first and last dies are rotating type |
9 | stand | 1. stand is steel welded structure 2. with water, electricity and air control button and emergency stop device |
10 | transmission | High efficiency narrow v-belt, low noise |
11 | control | 1. Main machines use frequency controller(ABB) 2. PLC control(SIEMENS) 3. All digital communication and control, with person-PC screen, data and fault indication |
12 | Related functions | 1. wire length detection with pre-set 2. wire breaking protection device 3. function of stopping when protection cover open or to length pre-set |

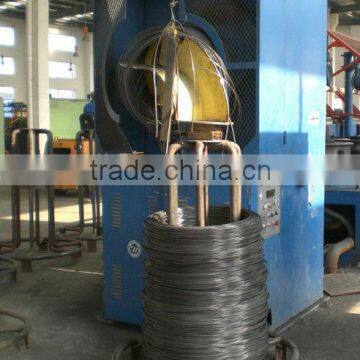

13 | Wire collecting | 1. h-wheel size 1250mm 2.use pneumatic tip-up device, 3 polish rod winding displacement 4. rod array pitch is adjustable 5. frequency conversion control |
