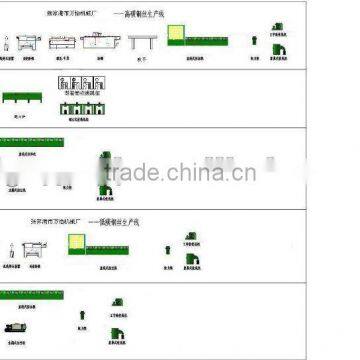

1 (1)pay-off

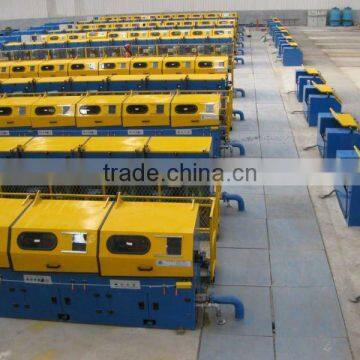

(2)LZ7/600 straight line drawing machine

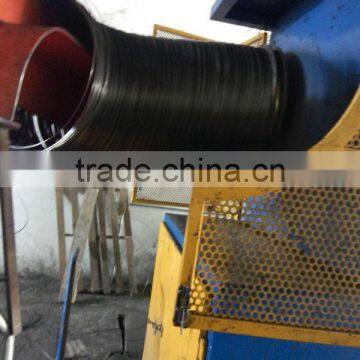

(3)600 type take up machine
(4 ) human machine interface display screen

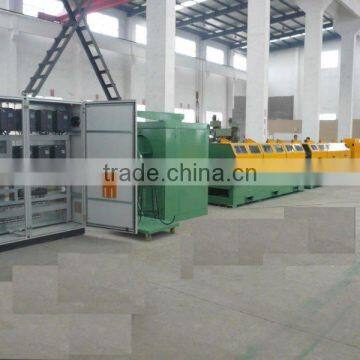

(5) Whole set of electrical appliance control cabinet
2. Work areas: (1) input diameter: 6.0
(2)input strength: 500Mpa or less
(3) input material: low-carbon wire(for nail) ,h-carbon wire,stainless steel wire
(4) output diameter: 2.2-
3. Drawing speed: (1) max: 10m/s (2) average: 8m/s with output 8.5t/d (10h per day)
4. Water- air pressure: (1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa
5. Electric motor standard: (1)drawing machine: 22KW AC motor
(2) wire coiling machine: 15KW AC motor
6. Reel form: (1) diameter: 600mm
(2) Material: ZG45 steel, surface spray finishing with carbonized tungsten alloy powder, hardness more than HRC60, surface roughness concentration less than 1.6Ra
