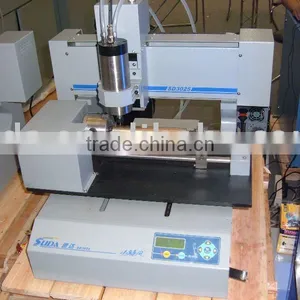

SELLING SUDA MINI CNC ROUTER WITH ROTARY DIVICE ---SD3025SX

Name: SELLING SUDA MINI CNC ROUTER WITH ROTARY DIVICE ---SD3025SX
Brand: SUDA
SKU: 144391320
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

SUDA

Model Number:

SD3025X

Tongxing Technology Development Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name SUDA

Model Number SD3025X

Specifications

small cnc router cnc engraver
with rotary
CE certifiate
800w water cooling spindle motor
rolling ball screw from German

Model	SD3025Sx
XY Guide	Rolling ball screw from Germany
Table size (cm)	30*25
Z Guide	Rolling ball screw from Germany
XYZ movement (mm)	300 x 250 x 40
Spindle power	800W
Spindle speed (min/max)	6000 - 24000 U/Min.
Machine dimension (cm)	565459
Packing dimension (cm)	666469
Weight (kg)	90KG
Power consumption without spindle	More than 1000w
Speed max.	0-70mm/s
Working speed max.	70mm/s
Stepper or servo motor?	Stepping motor
XYZ accuracy	0,04mm
Reposition accuracy	0,01mm
XY resolution	0,025mm
Z resolution	0,025mm
Table surface	Aluminum
XY drive configuration	roll screws
Z drive configuration	roll screws
Included Software	Type3 V4.3 english
Software Compatible with	Win98/Win2000/XP
Spindle cooling system	water cooled
Spindle collet	ER11
Software transmission language	G-Code, HPGL
Interface	Transimt the file from the computer directly
Voltage	220VAC/50-60Hz
Running environment	0-35°C, humidity: 10-70%
Production time	10 working days when we received all the payment by T/T
