Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Straightening Machinery > Black Annealing Wire Production Line

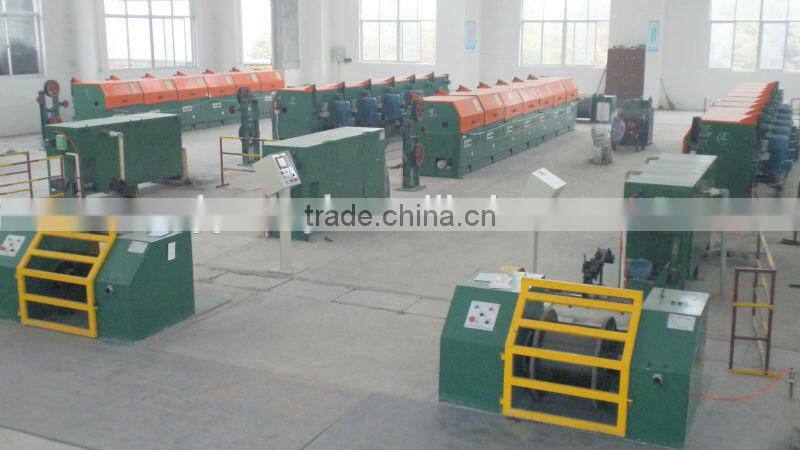

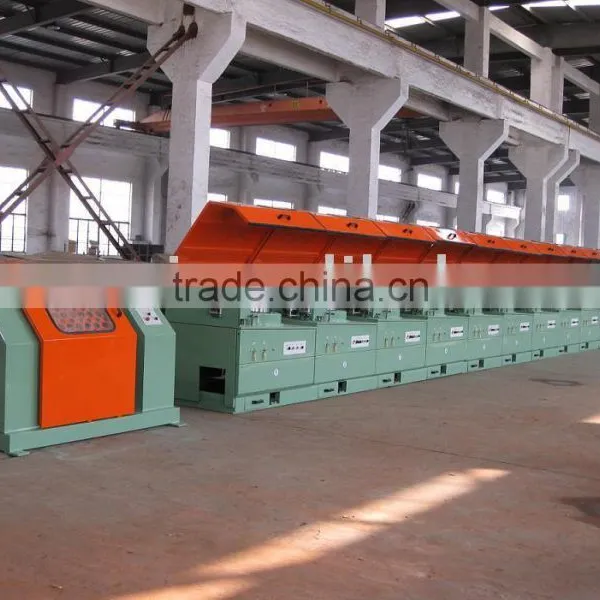

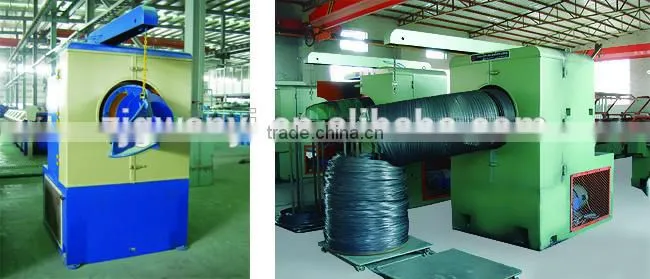

Black Annealing Wire Production Line
US$ 20,000 - 80,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Wire Drawing Machine
Use:
Wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Construction Binding Wire Drawing MachineUS$ 30,000 - 55,000MOQ: 1 Set -
Galvanized Wire Drawing MachineUS$ 50,000 - 60,000MOQ: 1 Set
-
Black Annealed Wire Drawing MachineUS$ 20,000 - 70,000MOQ: 1 Set
-
Rope Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set
-
Roller Die Wire Drawing MachineUS$ 35,000 - 70,000MOQ: 1 Set
Condition
New
Type
Wire Drawing Machine
Use
Wire
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
LZ600
Voltage
380/220V
Power(W)
11kw each
Dimension(L*W*H)
Plz Check Size
Weight
9000kg
Certification
CE ISO9000-2008
Warranty
ONE YEAR FREELY
After-sales Service Provided
Overseas service center available
low carbon wire drawing machine
(1)Max. entering (steel) wire strengthQ235(low carbon wire)
(2)Max. entering (steel) wire dia.6.5mm
(3)Min. exiting (steel) wire dia.1.5mm
(4)Pulling steel wire material low carbon steel
(5)Max. steel wire drawing speed 16m/s ( Normal using speed: 10m/s)
(6)Water volume 6m3/h (Water pressure ≥0.25MPa)
(7)Air volume 1.5m3/h (Air pressure ≥0.6MPa)
(8)Motors
drawing unit 30KW AC freq. con. motor
Take-Up unit 15KW AC freq. con. motor.
the processing is
PAY OFF+DESCALER MACHINE+LZ600 DRAWING MACHINE+TAKE UP MACHINE+FURNACE(AS YOU LIKE)+PAY OFF+LZ400 DRAWING MACHINE+TAKE UP MACHINE
