Home > Manufacturing & Processing Machinery > Machine Tools > Special Machine Tools > Black Annealed Wire Drawing Machine

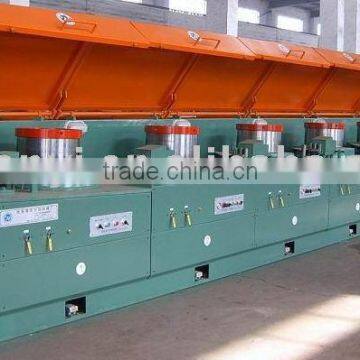

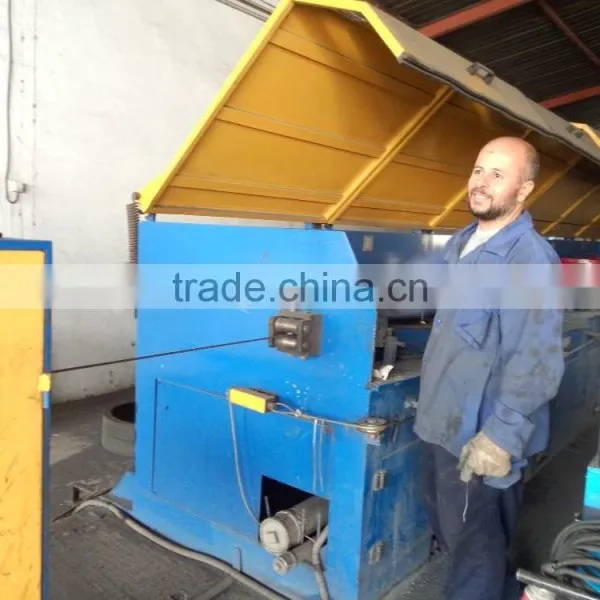

Black Annealed Wire Drawing Machine
US$ 20,000 - 70,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
Normal
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai or as u need
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rope Wire Drawing MachineUS$ 30,000 - 60,000MOQ: 1 Set -
Roller Die Wire Drawing MachineUS$ 35,000 - 70,000MOQ: 1 Set
-
SAE1008 Wire Drawing Machine (20 Years Factory)US$ 25,000 - 60,000MOQ: 1 Set
-
Hose Wire Drawing MachineUS$ 55,000 - 85,000MOQ: 1 Set
-
Nail Making MachineUS$ 2,000 - 10,000MOQ: 1 Set
Condition
New
CNC or Not
Normal
Place of Origin
Jiangsu, China
Brand Name
WANYI
Model Number
LZ
Voltage
380/220v
Power(W)
7.5-45KW
Dimension(L*W*H)
8000X1560X1560MM
Weight
7000kg
Certification
CE or SGS
Warranty
one year freely
After-sales Service Provided
Overseas service center available
Main Technical Parameters:
| Items | Unit | LZ9-12/1200 | LZ10/800 | LZ9/700 | LZ10/560 | LZ10/400 |
| Reel diameter | mm | 900 | 800 | 700 | 560 | 400 |
| Draw passage | time | 9-12 | 10 | 9 | 10 | 10 |
| Incoming dia | mm | Φ14-8 | Φ10-8 | Φ8-6.5 | Φ6.5-5.5 | Φ14-8 |
| Outgoing dia | mm | Φ5-3 | Φ4-3 | Φ3-2.5 | Φ2-1.8 | Φ1-0.8 |
| Wire darwing line | m/min | 300 | 360 | 480 | 720 | 840 |
| Incoming strength | Mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Total compressibility | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24-84 |
| Average compressibility | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-20.02 | 18.61-16.74 |
| Single motor power | Kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |
