rope wire drawing machine

FOB Price

USD $30,000 - $60,000 / Set

1 Set(Min.Order)

Product Details

Condition:	New	CNC or Not:	Normal	Place of Origin:	Jiangsu, China
Brand Name:	wanyi	Model Number:	LZ (straight line)	Voltage:	380V
Power(W):	15KW	Dimension(LWH):	8500X1560X1500mm	Weight:	9000kg
Certification:	CE or SGS	Warranty:	ONE YEAR	After-sales Service Provided:	Engineers available to service machinery overseas

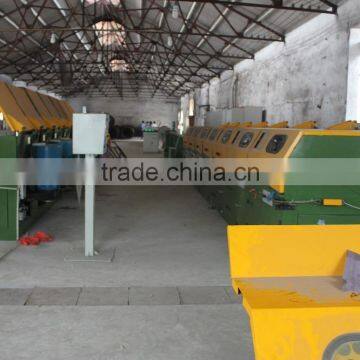

Black annealing wire drawing machine line

LZ 7/600 straight line drawing machine + 600 trunk type drawing machine

1.Equipment constituter (1) up-draft pay-off rack

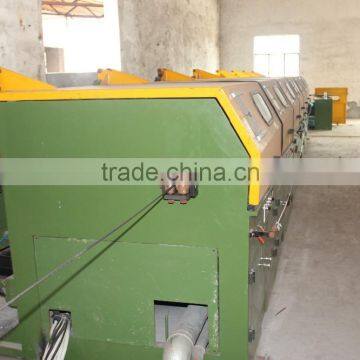

(2)LZ7/600 straight line drawing machine

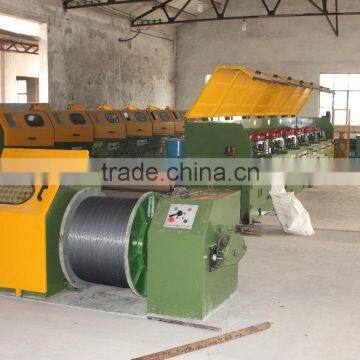

(3)600 trunk type take up machine

(4 ) human machine interface display screen

(5) Whole set of electrical appliance control cabinet

2. Work areas (1) input diameter 6.0 or 5.5 mm

(2)input strength 500Mpa

(3) input material black anneal wire

(4) output diameter 2.0--2.4mm

3. Drawing speed(1) max 10m/s (2) average8m/s with output 8.5t/d (10h per day)

4. Water- air pressure(1) hydraulic pressure >0.2Mpa (2) barometric pressure>0.5Mpa

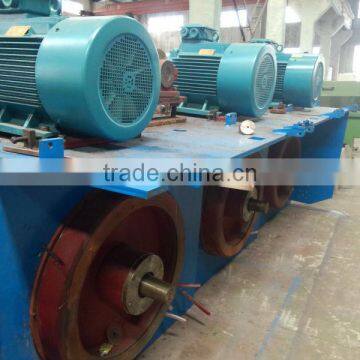

5. Electric motor standard: (1)drawing machine: 22KW AC motor

(2) wire coiling machine: 15KW AC motor

12 Control
