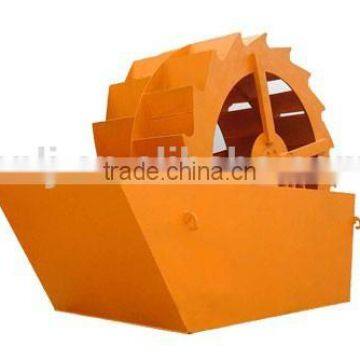

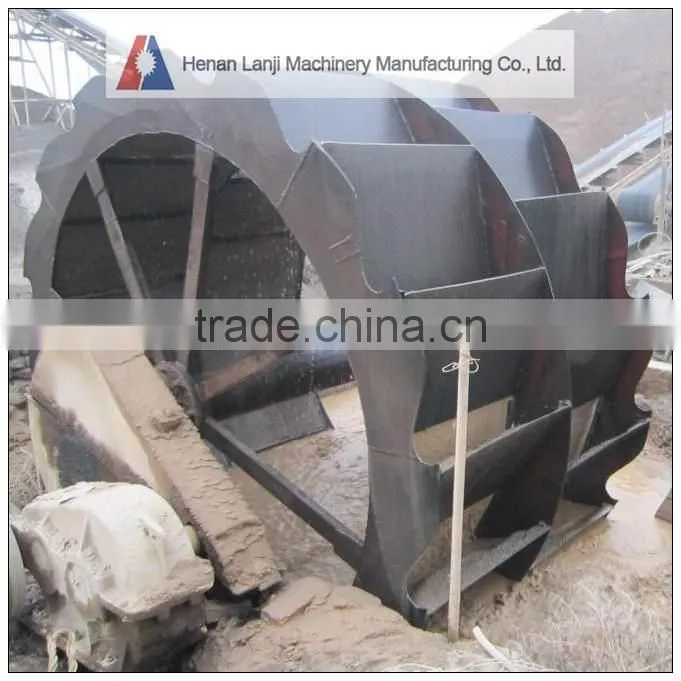

Bucket wheel type sand washer equpment:
Features of wheel type sand washer machine
1. High cleaning;
2. Reasonable structure;
3. High capacity and low power consumption;
4. With the three functions of sand washing, grading and dehydration;
5. The sand washing machine is 15° Tilted layout;
6. The spiral is driven by motor and decelerator to continuously rotate, and the sand or small ores can be stirred and washed.
Application of wheel type sand washer machine
Being an important sand washing machine, it is widely used for sand washing, grading and dehydration in the fields of construction site, hydropower station and concrete dam sites, etc.
Specifications of wheel type Sand Washer Machine
Models |
XSD2610 |
XSD2816 |
XSD3016 |
Impeller Specification (mm) (D×W) |
Φ2600×1000 |
Φ2800×1600 |
Φ3000×1600 |
Impeller Speed (mm) |
1.178 |
1.177 |
1.179 |
Capacity (t/h) |
20~50 |
30~60 |
50~120 |
Feed Size (mm) |
≤10 |
≤10 |
≤10 |
Water Consumption (mm) |
20~60 |
50~100 |
70~120 |
Electric Motor Power (KW) |
5.5 |
11 |
15 |
Decelerator Models |
ZQ50-50-I-Z |
ZQ60-50-I-Z |
ZQ65-50-I-Z |
Overall Dimensions (L×W×H) |
3255×1982×2690 |
3540×3000×2880 |
3845×3000 ×3080 |
1. Henan Lanji Machinery Manufacturing Co., Ltd is professional in producing large and medium-sized crushers, ball mills,mining equipments, brick/block making machine and so on.
2. Our clients spread all over the world. Products are sold to South Korea,, Indonesia, Vietnam,
Portugal, Africa and Middle East with the Annual export quantum composing one third of the total sales, wining praises from the purchasers.
1..Installation: The seller provide all drawings for installation, engineers available to service machinery overseas.
2.After sale service: 1year guarantee.
