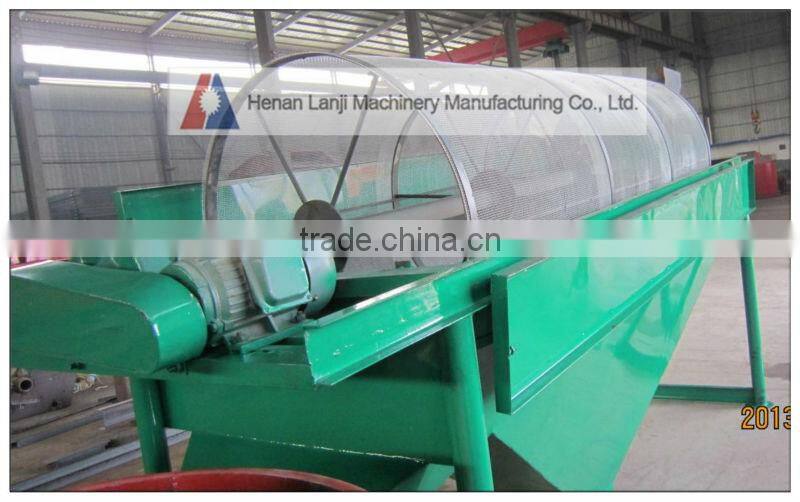

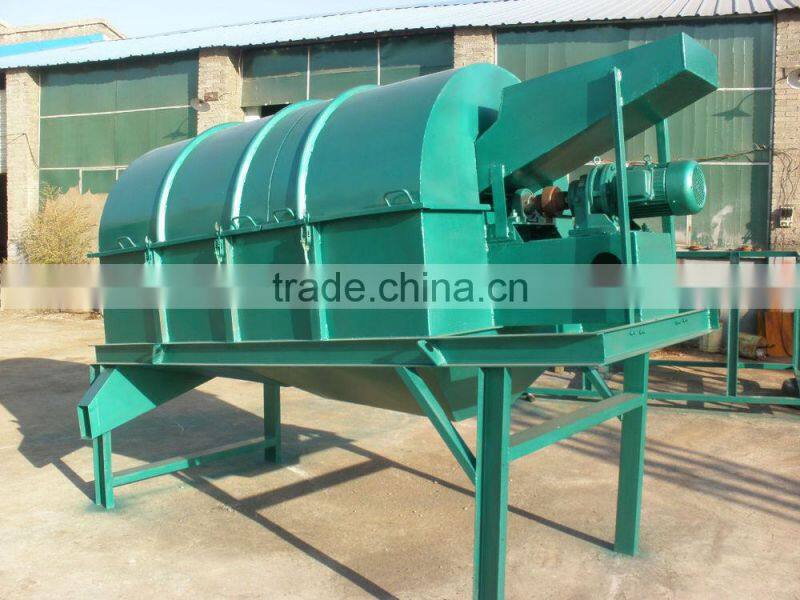

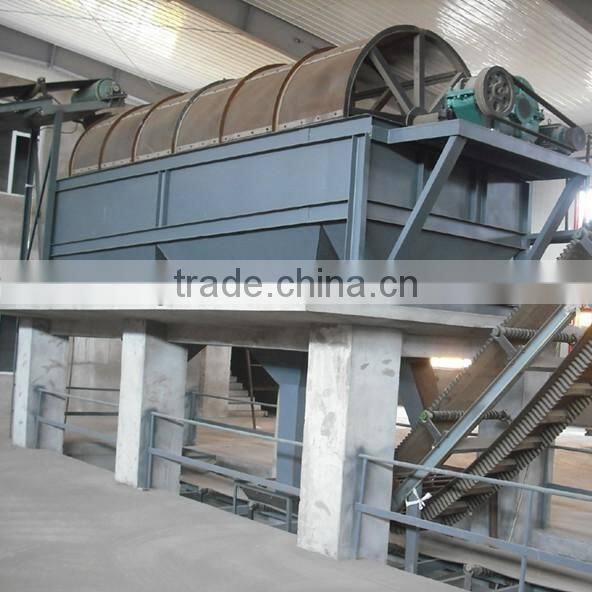

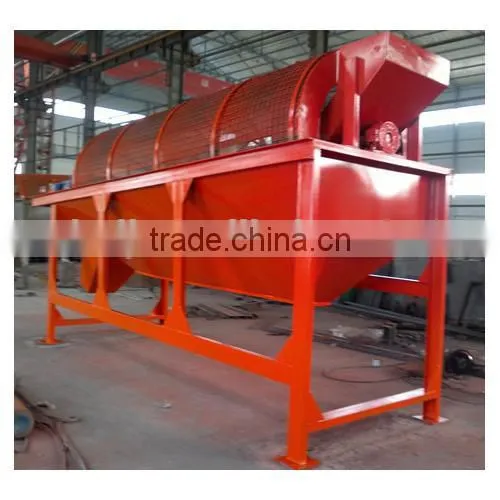

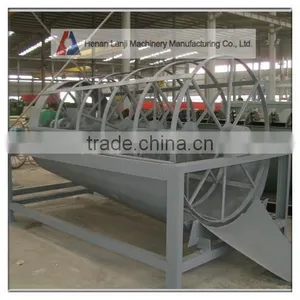

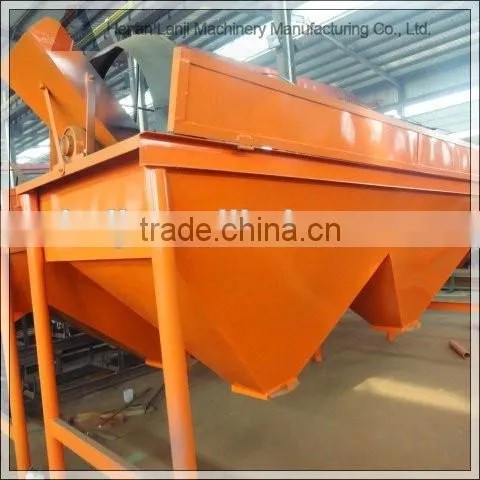

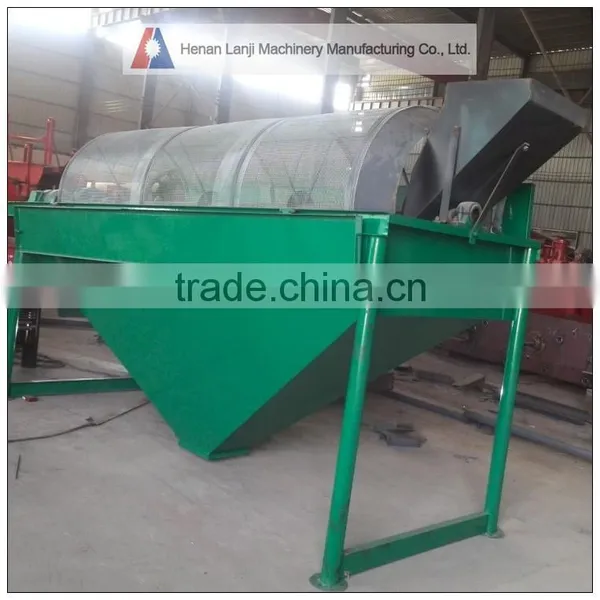

Top quality and low price trommel screen for sale
Rolling screen Application:
Rolling screen is suitable to screen materials which are wet and easy blocking : sand gold ore,coal,coke,lime ,etc. largest screened size is 100mm,middle size is 10-50mm, fine size is below 3mm
Rolling screen working principle:
Rolling screen is composed by the rolling drum,funnel,gear box,motor .The materials enter the rolling drum,one hand, the materials are screened by the drum rolling, another hand,the large size materials flow ahead with the rolling drum gradient,and then sorted out through different screen net size
Technical data:
Model |
Specification (m) |
Slope |
Rotary speed |
Sieve pore(mm) |
Max feeding size (mm) |
Production capacity(m3/h) |
Motor power (kw) |
|
Sieve pore(2mm) |
Sieve pore(20mm) |
|||||||
GTS820 |
Φ0.8X2 |
6° |
32 |
2-20 |
Mesh size X2.5 |
7 |
30 |
3 |
GTS830 |
Φ0.8X3 |
6° |
32 |
2-20 |
Mesh size X2.5 |
8 |
50 |
3 |
GTS1030 |
Φ1X3 |
6° |
25 |
2-20 |
Mesh size X2.5 |
10 |
60 |
4 |
GTS1040 |
Φ1X4 |
6° |
25 |
2-20 |
Mesh size X2.5 |
11 |
80 |
4 |
GTS1230 |
Φ1.2X3 |
6° |
20 |
2-20 |
Mesh size X2.5 |
12 |
100 |
5.5 |
Small size will be packed by standard export wooden case, medium size can be packed into container; large size will be shipped in bulik.
We can produce the machine base on customers' needs.
Thanks so much for you taking time to browse our sand gravel trommel screen. Any further questions, please feel free to contact us and we are ready to so service for you!
